8-24hp Mini Hand Power Tiller Walking Behind Tractor diesel Motocultor

US $780.00-880.00 / set
1 set(s)Minimum order
rated power (hp):
20HP
type:
Walking Tractor
by wheel:
2WD
usage:
Farm Tractor
drive type:
motor drive
brand name:
SX
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

rated power (hp)

20HP

type

Walking Tractor

by wheel

2WD

usage

Farm Tractor

drive type

motor drive

brand name

SX

place of origin

Shandong, China

warranty

1 Year

key selling points

High Productivity

machinery test report

Provided

video outgoing-inspection

Not Available

core components

Pump, Gearbox, Engine

engine brand

changfa

weight

350

Tire model

6.00-16

Start way

hand / electrical starter

Rated power

14.8kw

Weight

350kg

wheel tread

680-1000mm

Engine oil consumption

2.72 g/km.h

Minimum ground clearance

260mm

After Warranty Service

Video technical support

gearbox type

6+2

Product Detail

Product Description


8-24hp New garden walking behind tractor


  Our walking tractors mainly range from 8 to 24 horsepower and have the following three main advantages:

1. Compact and Maneuverable: The walking tractors are small in size and light in weight, with a small turning radius. They can operate flexibly in small fields, orchards, mountainous areas and other places with limited space. They can easily shuttle through narrow ridges and between crop rows, adapting to a variety of complex terrains.

2. Simple to Operate: Its operation is relatively simple, with an intuitive control system, which is easy to learn. There is no need for complex training to master the basic operation methods, and the technical requirements for agricultural practitioners are relatively low.

3. Versatile in Function: By replacing different agricultural tools or equipment, the walking tractor can achieve multiple functions such as plowing, tilling, sowing, fertilizing, harvesting and transportation. It can meet various needs in agricultural production, improve production efficiency and reduce labor intensity.

Mode
SX-8
SX-10
SX-12(101 chassis)
SX-15(151chassis)
SX-18(151chassis)
SX-20(151chassis)
Structure weight
270
290
300
480
480
480
Overall dimensions
 (L*W*H)
2170x 845 x 1150
2220x 1250 x 1220
Power
8HP
10HP
12HP
15HP
18HP
20HP
Tire size
6.00-12( w-tire)
6.00-16( w-tire)
Transmission
two belt
three belt
Drivetrain final drive
single-stage spur gear circle column wheel drive
The fuel tank volume
(L)
11
13
Engine lubricating oil
(L)
1.5-2
2.5-3.2
Gearbox lubricants
(L)
3-3.3
3-3.3
The cooling water injection amount
(L)
12-13
13.5-15
Clutch style
riple-plate,single-action,standard,dry-friction,long engaging friction
Gearbox style
main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift.
(3 + 1)×2 composition formula circular gear wheel column.
Basic
Basic
Detailed Images

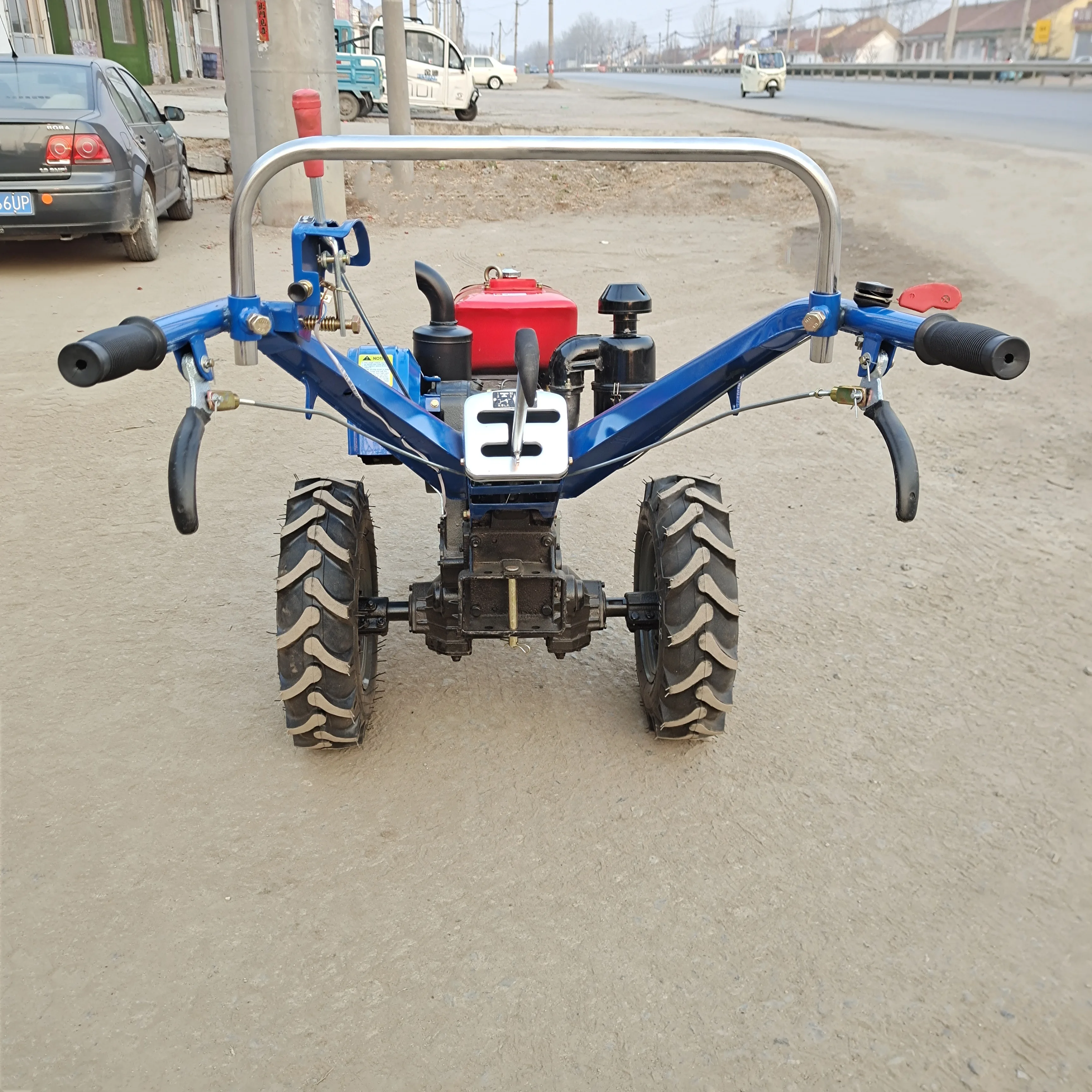

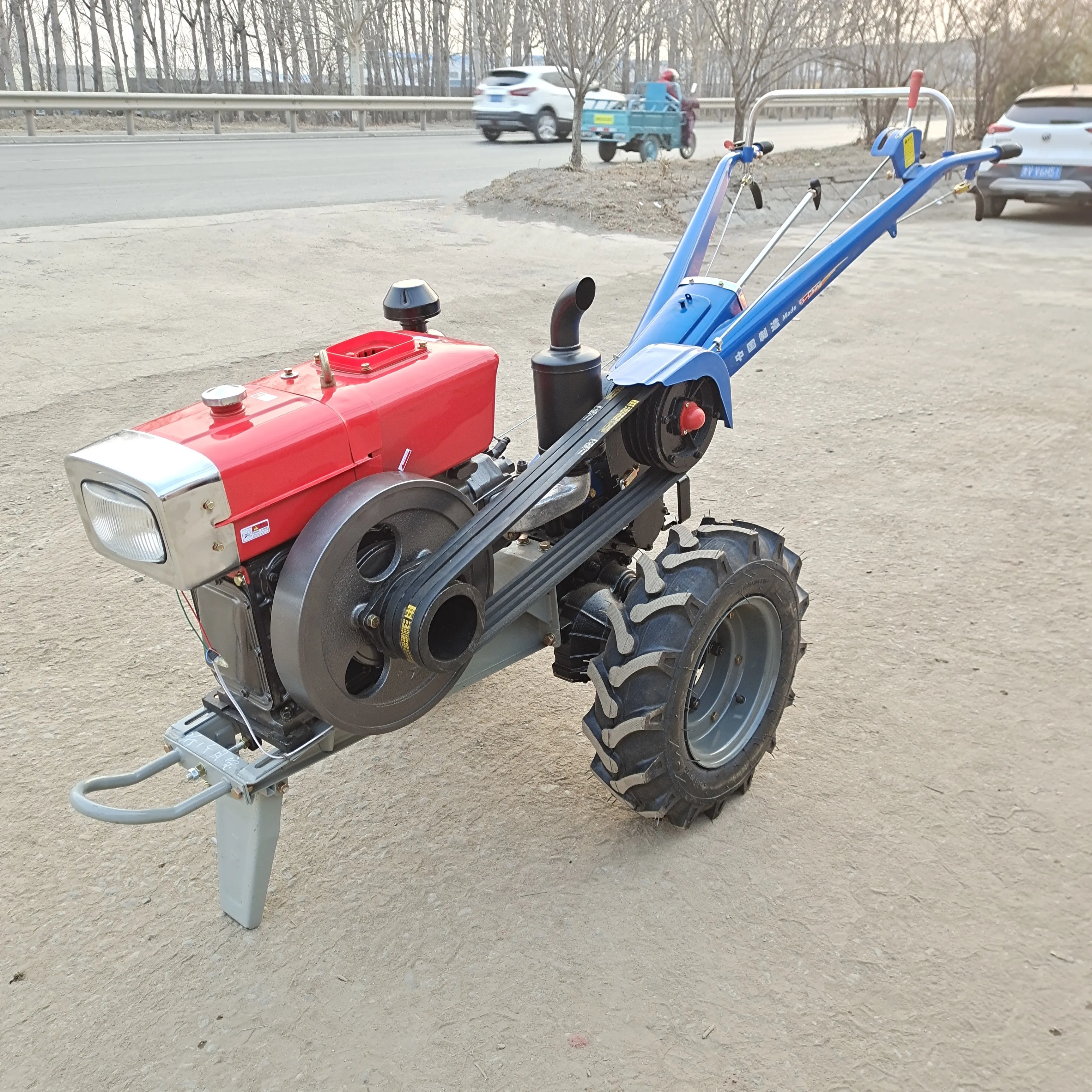

Walking Tractor


Walking Tractor

    1. New products, comprehensive upgrade, better quality

    2.151 reinforced chassis

    3.High quality engine, low noise and strong power

    4.Hand cranked start, optional electric start, water-cooled or condensing type
Electric strater
Mode
8-12hp walking tractor
Hand start, (optional electric start), water cooling, three groove pulley, double disc clutch, Reinforced 5-point connection chassis. 6.00-12 tires. 6 + 2 gear
15-24hp walking tractor
Hand start, (optional electric start) water cooling, Four groove pulley, double disc clutch, Reinforced connection chassis. Tire: 6.00-12. 6 + 2.
Supporting tools (optional)
rotary tiller
Double plough
Single plough
Single plough
1T Trailer
Ditcher
Ridger
Corn seeder
Pump
Disc mower
Mulch machine With sprayer
Harrow
Working picture
