Multi-hole Orifice Digital Display Water/oil Flow Indicator Orifice Flowmeter

US $7.00 / set
100 set(s)Minimum order
warranty:
1 Year
customized support:
OEM, ODM
place of origin:
Liaoning, China
brand name:
BEIXING
model number:
ZC
type:
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

warranty

1 Year

customized support

OEM, ODM

place of origin

Liaoning, China

brand name

BEIXING

model number

ZC

type

Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters

Medium

Liquid, air, steam

multi-hole orifice flow meterUsage

Liquid, air, mud, a two-phase flow,

Usage-

high speed flow, low or high viscosity flow liquid, air, steam

Weakness

Tiny interference

Advantage

High accuracy and minimum pressure loss

Closure principle

Balanced throttle

Bore range

15~3,000mm

Straight pipe requirements

Front 0.5D

Measure ratio

>10:1

Product Detail

Details

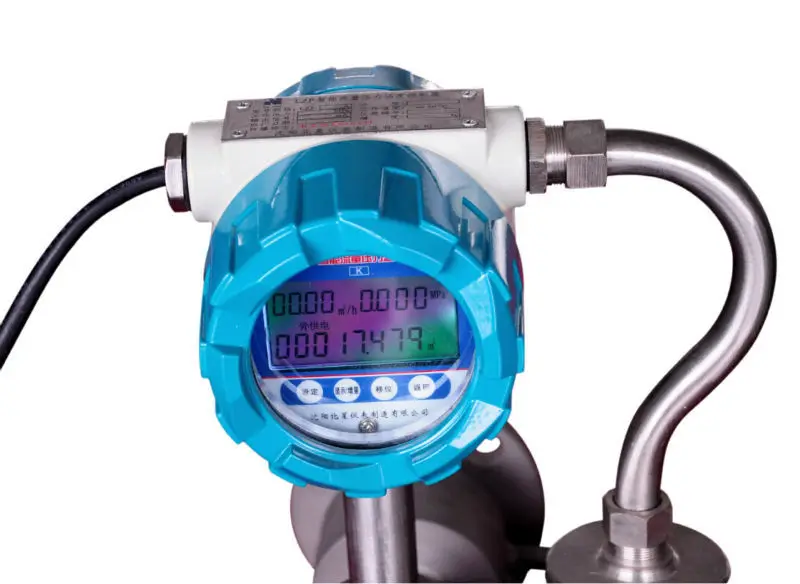

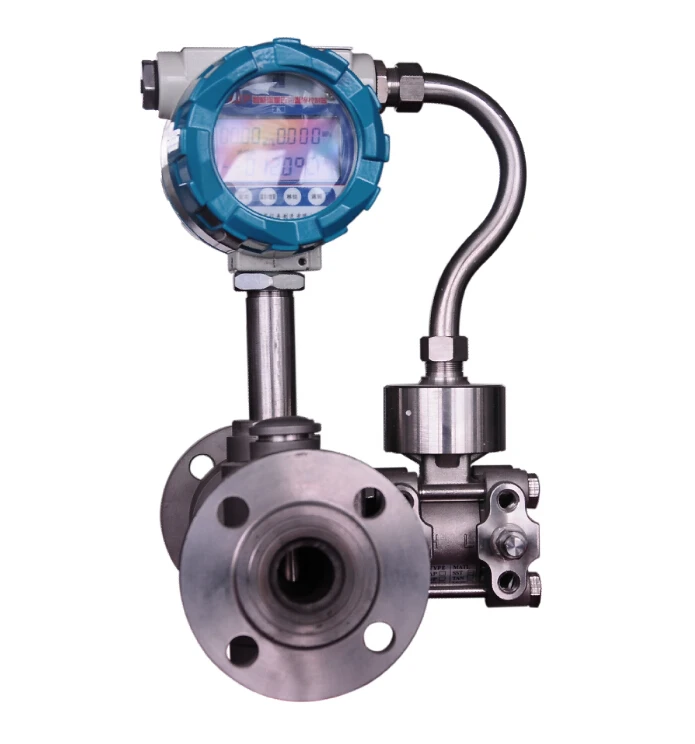

 ZC multi-hole orifice digital display   water flow meter

Introduction

ZC intelligent differential pressure (Equilibrium) flow meter is a great improvement based on the conventional standard orifice-plate flow meter that has only one flow passage. With more flow passages on the flow sensor, ZC flow meter ensures irregular fluid can be changed into ideal state when it passes the flow sensor, and ensures double functions of throttling or pressure tapping and reshaping standard flow field, which is a revolutionary advance for the conventional fluid measurement technology. It can be a replacement for many differential pressure flow meters (e.g. standard orifice-plate, V cone, venturi tube, velocity-averaging tube, wedge, elbow), applicable for measuring multi fluids.

Compared with standard orifice-plate flow meter, ZC intelligent differential pressure (Equilibrium) flow meter can provide more accurate measurement by 5-10 times, 1/15 of flowing noise, 1/3 of permanent pressure loss, twice faster pressure recovery, and can correct and offset parameters by its pressure and temperature sensors according to constant changes of surrounding pressure and temperature, reaching real flow rate. This flow meter has the straight pipes whose minimal diameter can be less than 0.5D with no movable parts, making it easy as standard orifice-plate flow meter in installation and usage, saving large amount of straight pipes and energy consumption for fluid movement. It has integrated output of flow rate, temperature and pressure. It is suitable for measuring many kinds of mediums. It is widely used as energy-efficient equipment.




High measuring accuracy

With porous throttling element, the equipment can balancing the flowing medium, reduce eddy current, vibration and signal noise. These greatly enhance the flow stability. The equipment made from precision pipeline and dedicate pressure sensor, which improve the linearity 3 ~ 5 times than the traditional orifice-plate flow meter.

Through the actual flow calibration, accuracy can reach up to ±0.3%, applicable for trading measurement.

Through the geometry test, accuracy can reach up to ±0.5%, applicable for processing control.

When measuring ratio is 5:1, linearity can reach ±0.30%;

When measuring ratio is 7:1, linearity can reach ±0.50%;

When measuring ratio is 10:1, linearity can reach ±1.0%.



Measuring range and model

Model

DN15

DN20

DN25

DN40

DN50

DN80

DN100

Flow rate (m3/h)

Liquid: 0.4 – 150m3/h; Gas: 0.4 – 4,000m3/h *Other flowing range can be made by order.


Structure and Size




Available model

ZC MODEL.jpg

We can supply Meter with CNAS cettfication,or can make CNAS test for your meter.

Standard meter gas flow standard device

Device characteristics

The standard device uses the Netherlands FMG company's gas twin-turbine standard table seat transfer standard, the maximum allowable error ≤ ± 0.15%.

Technical Parameters

Pipe diameter: DN400mm-DN1200mm

Flow range: 3000m³ / h-45000 m³ / h

Uncertainty: Urel = 0.5% (K = 2)

Calibration capability

Can detect DN400mm-DN1200mm

Flow range: 3000m³ / h-45000 m³ / h

Gas velocity flow meter: vortex flow meter, turbine flow meter, cyclone vortex flow meter, etc.

Gas volume flow meter: waist wheel flow meter, Roots flow meter, etc .;

Gas differential pressure flow meter: standard orifice flow meter, porous orifice flow meter, V cone flow meter.
