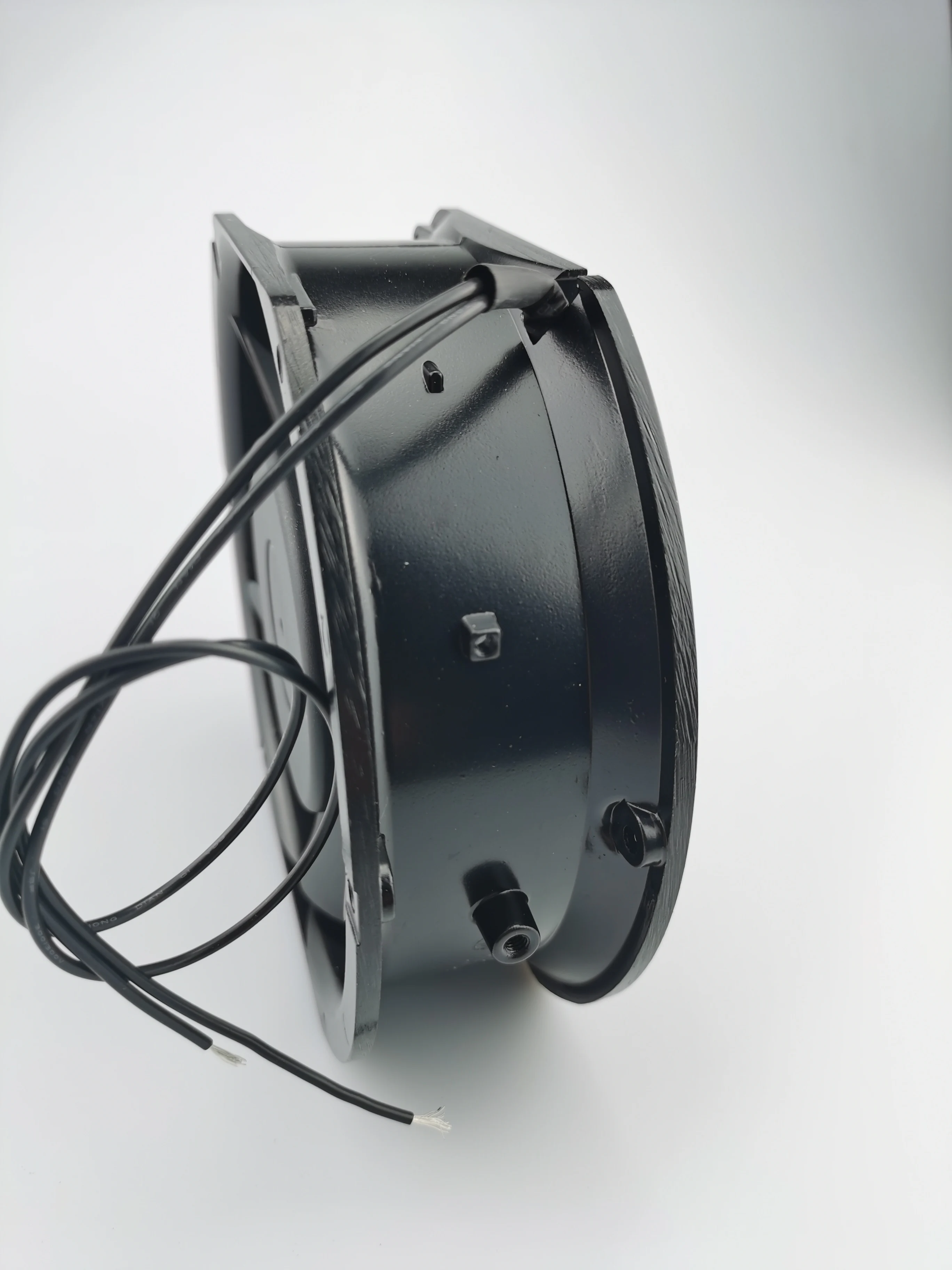

Natural NA17050 120V 230V High Speed AC Cooling Axial Flow Axial Cooling Fan Motor
US $6.22-6.98 / piece
10 piece(s)Minimum order
customized support:
OEM
mounting type:
Other
blade material:
Other
place of origin:
Zhejiang, China
brand name:
Natural
model number:
NA 17050
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$7.20-12.00
10 pieces (MOQ)
$19.17-21.51
10 pieces (MOQ)
$2.34-7.11
10 pieces (MOQ)
$3.00-15.90
10 pieces (MOQ) Contact us
Quik Detail
| customized support | OEM |
|---|---|
| mounting type | Other |
| blade material | Other |
| place of origin | Zhejiang, China |
| brand name | Natural |
| model number | NA 17050 |
| Voltage | 120VAC,230VAC, 380VAC |
| warranty | 3 years |
| after-sales service provided | Video technical support |
| Size | 172*150*50mm |
| Airflow | 319~399m3 |
| Weight | 870g |
| Noise | 52~62dBA |
| Frame | Aluminum Alloy |
| Terminals | 0.5mm |
| Operation Temperature | -10°C~+70°C |
| Motor | Shaded Pole Induction Motor |
| Type | Axial Flow Fan |
| Applicable Industries | Other |
Product Detail
Products Description
General Specification | ||
Size | 172×150×50mm | |
Airflow | 319~399m3/hr 188-235CFM | |
Weight | 870g | |
Noise | 52~62dBA | |
Impeller | PBT Thermoplastic Black, 94-V0 | |
Frame | Aluminum Alloy | |
Terminals | 0.5mm | |
Lead Wire | AWG#22 UL 1007(Optional) | |
Motor | Shaded Pole Induction Motor | |
Operation Temperature | -10°C~+70°C | |
Model Number | Voltage (V) | Freq. (Hz) | Current (A) | Power (W) | Speed (RPM) | Noise (dBA) | Air Flow | Size | ||
M3 /hr | CFM | |||||||||
NA17050HA1B(S) | 100~125 | 50/60 | 0.43/0.40 | 26/28 | 2650/2950 | 54/50 | 299/336 | 176/198 | 172×150×50mm | |
NA17050HA2B(S) | 200~240 | 50/60 | 0.23/0.20 | 26/28 | 2650/2950 | 54/50 | 299/336 | 176/198 | ||
NA17050HA3B(S) | 380 | 50/60 | 0.13/0.11 | 26/28 | 2650/2950 | 54/50 | 299/336 | 176/198 | ||
