New 50 Ton 3-Axle Side Wall Fence Box Stake Cargo Semi Truck Trailer Low Price 12R22.5 Tyre Steel Aluminium Carbon Material
US $8,000.00-9,900.00 / unit
1 unit(s)Minimum order
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Size:
12500*2500*3050mm
Max Payload:
20-150T
Place of Origin:
Shandong, China
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$9,999.00-11,099.00
1 set (MOQ)
$9,499.00-9,999.00
1 set (MOQ)
$10,600.00-11,600.00
5 sets (MOQ)
$7,500.00-9,000.00
1 set (MOQ)
$7,900.00-10,500.00
1 set (MOQ)
$3,999.00-6,599.00
5 units (MOQ) Contact us
Quik Detail
| Use | Truck Trailer |
|---|---|
| Type | Semi-Trailer |
| Material | Steel |
| Size | 12500*2500*3050mm |
| Max Payload | 20-150T |
| Place of Origin | Shandong, China |
| Brand Name | JOZOTG |
| Product name | 3 Axle Fence Cargo Trailer |
| Function | Cargo & Livestock Transport |
| Suspension | Mechanical Suspension/ Air Suspension |
| Axle | 2/3/4*13/16T FUWA/BPW/BONVO |
| Tire | 10.00R20/ 11.00R20/ 12R22.5 |
| Landing Gear | JOST/FUWA Brand 28T |
| King pin | 2"(50mm)or3.5"(90mm) JOST |
| Brake System | WABCO |
| Tare Weight | 5.5-6.5 T |
| Main Beam | T700/Q345 Steel |
Product Detail
Products Description

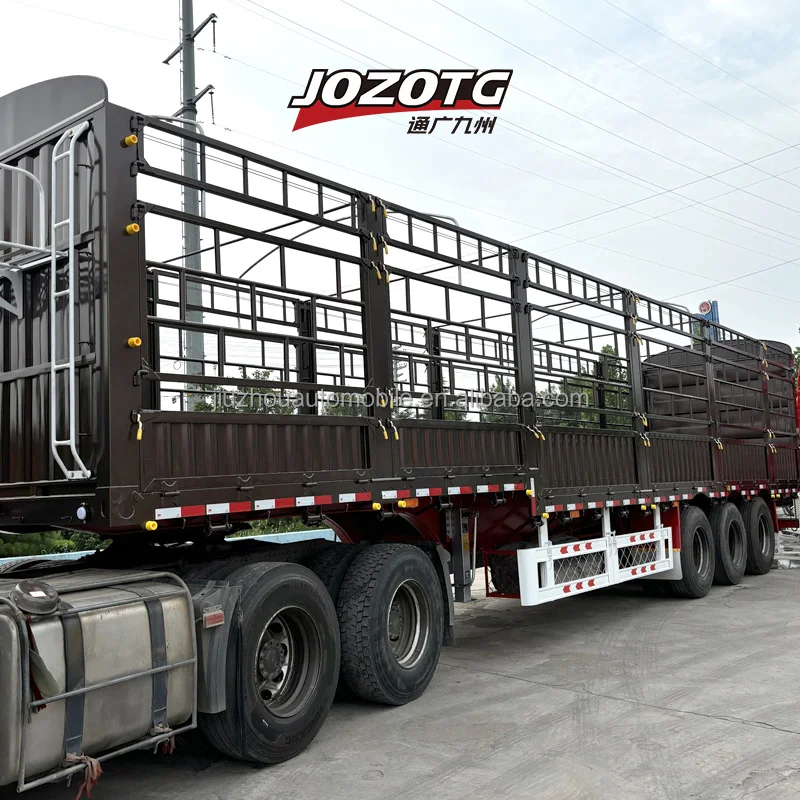

3 AXLES FENCE CARGO SEMI-TRAILER
Application of three-axle flower fence semi-trailer
1. Construction material transportation, used in the construction industry to transport sand, gravel, bricks, etc. to meet the material supply needs of construction sites.
2. Large equipment transportation, convenient for fixing and tying large mechanical equipment, flexible adjustment of loading schemes to ensure transportation safety.
3. Agricultural products and agricultural materials transportation, can transport agricultural products and agricultural materials, the flower fence design is conducive to air circulation to ensure the freshness of agricultural products.
4. Logistics distribution, can transport various specifications of goods to meet the distribution needs between logistics centers and retail outlets.
Advantages of three-axle flower fence semi-trailer
1. Strong carrying capacity, the three-axle structure carries more weight, which is more advantageous than the two-axle semi-trailer and improves transportation efficiency.
2. Convenient cargo fixing, the flower fence design is convenient for using tools to tie and fix cargo to ensure transportation safety.
3. Good ventilation and visibility, the gaps in the flower fence are well ventilated, which is conducive to maintaining the state of the cargo and is also convenient for checking the cargo.
4. Versatility and flexibility, suitable for a variety of cargoes, and the loading scheme can be adjusted quickly.
5. Cost-effectiveness advantage, large carrying capacity, wide applicability, reducing unit cargo transportation costs and improving economic benefits.
Specification
Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
Load Capacity(T) | 60T |
Axle | 3 axles, 13T/16T, FUWA/BPW Brand |
Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
Main beam | Height: 500mm , Q345/T700 Upper Plate: 14mm Down Plate: 16mm Middle Plate: 8mm |
Side beam | 16mm or 18mm steel channel(material: Q235steel) |
Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
ABS | Optional |
Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
Braking system | WABCO valve |
Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
Details Images
