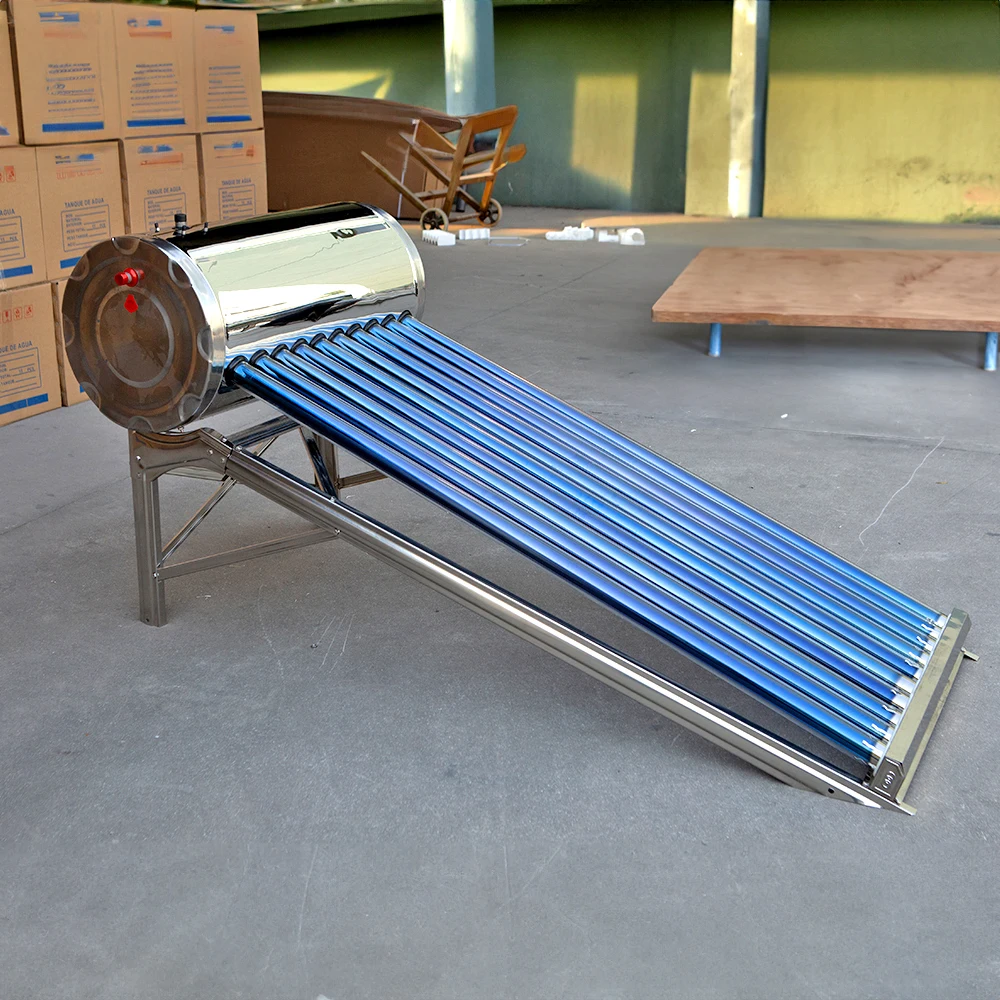

OEM 100L 200L 300L Low Pressure Stainless Steel Small Solar Hot Water Heater Kits
2 set(s)Minimum order
after-sales service provided:
None
warranty:
3 years
operating language:
English
application:
outdoor, Hotel, Household
power source:
Solar
app-controlled:
NO
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
after-sales service provided | None |
---|---|
warranty | 3 years |
operating language | English |
application | outdoor, Hotel, Household |
power source | Solar |
app-controlled | NO |
private mold | NO |
logo/pattern | Hot foil stamping |
type | Evacuated Tube |
circulation type | Direct / Open Loop (Active) |
connection type | Direct-Plug |
installation | freestanding |
Housing Material | Plastic |
Capacity | 100 |
place of origin | Zhejiang, China |
brand name | SUNSEEKER |
model number | ZY-1B |
Name | non- pressured solar water heater |
Insulation | polyurethane |
Application | bath/wash/swimming pool |
Outer tank | stainless steel |
Inner tank | food grade stainless steel sus304-2B |
Vacuum tube | 58mm/1800mm |
Frame | 201 stainless steel |
Solar collector | three target vacuum tubes |
Warranty | 3 years |
Product name | residential solar water heaters |
Product Detail


Our services
1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample
2.Shipping: 7 days for sample, 7-10 days for 20/40 container
3.MOQ: Sample is available
4.Warranty: 5 years guarantee for whole set solar water heater
5.Port of departure:Shanghai or Ningbo
6.Supply ability: 6000 sets per month
7.life time : more than 20 years
Recommend Products




Material of inner tank | 0.31mm-0.5mm thickness,food grade SS304/customization | |
Material of outer tank | 0.31mm thickness, SS201/customization | |
Insulating layer | 50mm thickness,45kg/m3 high density polyurethane foamed | |
Inlet and outlet hole | Male G 1/2,3/4…… | |
Solar collector tube | 3.3 Borosilicate glass with Cu-SS-ALN/ANL. coating | |
Thickness of glass tube | 1.6mm/1.8mm/2.0mm/2.2mm | |
Vacuum tube tightness | P≤0.005 Pa | |
Bracket(frame) | 1.2mm/1.5mm galvanized steel | |
Frame angle | 9°/17°/20°/27°/45°/customization | |
Welding | Argon arc welding | |
Fastening pieces | Made of stainless steel screw | |
Tank capacity | From 80-400L | |
If you have customization needs, please contact us |
Item no | Water tank capacity | Number of vacuum tubes | Vacuum tube size | Application people |
ZY-1B-5808 | 80L | 8pcs | 58*1800MM | 2 |
ZY-1B-5810 | 100L | 10pcs | 58*1800MM | 2-3 |
ZY-1B-5812 | 120L | 12pcs | 58*1800MM | 3 |
ZY-1B-5815 | 150L | 15pcs | 58*1800MM | 3-4 |
ZY-1B-5818 | 180L | 18pcs | 58*1800MM | 4 |
ZY-1B-5820 | 200L | 20pcs | 58*1800MM | 4-5 |
ZY-1B-5824 | 240L | 24pcs | 58*1800MM | 5-6 |
ZY-1B-5830 | 300L | 30pcs | 58*1800MM | 6 |
ZY-1B-5836 | 360L | 36pcs | 58*1800MM | 6-7 |
ZY-1B-5840 | 400L | 40pcs | 58*1800MM | 7 |



Company Profile

Exhibition and Certifications

Packing and shipping






FAQ

Q: Are you a manufacture or trading company?
A: We are a manufacture special for solar water heater.
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What’s the MOQ?
A: For trail sample order, 1pcs is available.
Q: What’s your delivery time?
A: 7-10 working days after receipt of signed PI and down payment
Q: What is your package ways?
A: Generally, standard products with standard package.
Inside: plastic foam. Outside: cartons
Q: Do you have other ADDITIONAL SERVICE?
A: YES
We could offer other accessories (cover side/ support / solar water heater controller /silicon seal /rubber seal ) used on solar water heater system and the price will be much competitive.
