Paper Making Machine Polyester Spiral Dryer Mesh Dryer Screen Fabrics
Other recommendations for your business
Contact us
Quik Detail
| warranty | 3 months |
|---|---|
| weight (kg) | 5 |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| place of origin | Henan, China |
| brand name | Shengfeng |
| Product Name | Dryer Screen |
| Material | Polyester, Nylon |
| Application | Paper Industry |
| Function | Dehydration |
| Weaving method | 4-8 heddle |
| Usage | forming wire,screening mesh,dryer can net etc. |
| Type | 1-3 layer |
| After Warranty Service | Video technical support |
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Showroom Location | None |
| Marketing Type | Hot Product 2019 |
Product Detail

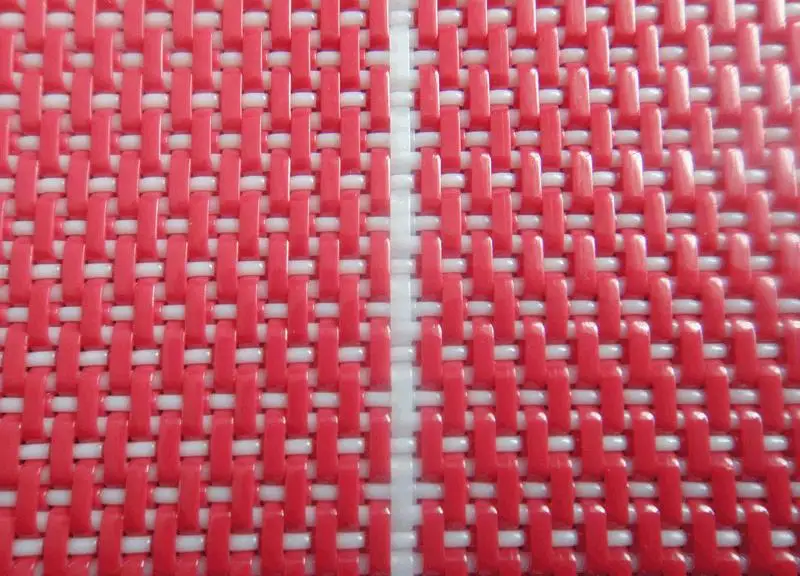

Polyester net wire mesh dryer screen paper machine forming fabric
Brief introduction of polyester forming fabries:
Forming fabric is an important equipment on paper machine. It is a device for forming and dewatering paper on paper machine. It dehydrates the pulp suspension from the headbox and runs the paper web to the subsequent section.
Features:
1. Long service life, wear resistance and low net consumption.
2.Acid and alkali resistance.
3.The mesh marks are light and the molding quality is good.
4. Ligh weight, convenient transportation, easy to operate the net.
Usage of Different Types of Wire Mesh:
| Four heddle monolayer forming net | suitable for making cultural paper, printing paper and packaging paper |
| Five heddle monolayer forming net | suitable for making toilet tissue paper, cultural paper and packaging paper |
| Eight heddle monolayer forming net | suitable for making high grammage paper, like paper bag paper, kraft paper, lineboard, corrugated paper, cardboard paper, etc. |
| Seven heddle double-layer forming net | suitable for making high-grade printing paper, tissue paper and so on. |
| Eight heddle double-layer forming net | suitable for making high-grade printing paper, offset printing paper, tissue paper and top and medium layer pulp of board paper and so on. |
| Eight and sixteen 2.5 layer forming net | suitable for making high-speed paper machine, producing various types of paper |
Polyester forming mesh can be divided into:
Single layer forming net, Double layer forming net and three layer forming net.
Qinyang Shengfeng Paper Making Machinery co.,Ltd has specialized in providing paper machines since 2001, Had 20years manufacturing history, We are Henan Province paper manufacturing machinery's key enterprise. we have a professional technical department and Purchase department. Integrity is our philosophy, welcome to contact me for negociations and orders.
Our advantage products:
| 1 | Toilet tissue paper machine |
| 2 | Kraft corrugated paper machine |
| 3 | A4 culture paper newspaper machine |
| 4 | Pulp equipment such as pulper, cleaner, fiber separator, pressure screen etc. |
| 5 | Paper machine parts such as dryer, roll, cyclinder mould etc. |
| 6 | Paper mosquito coil making machine |
