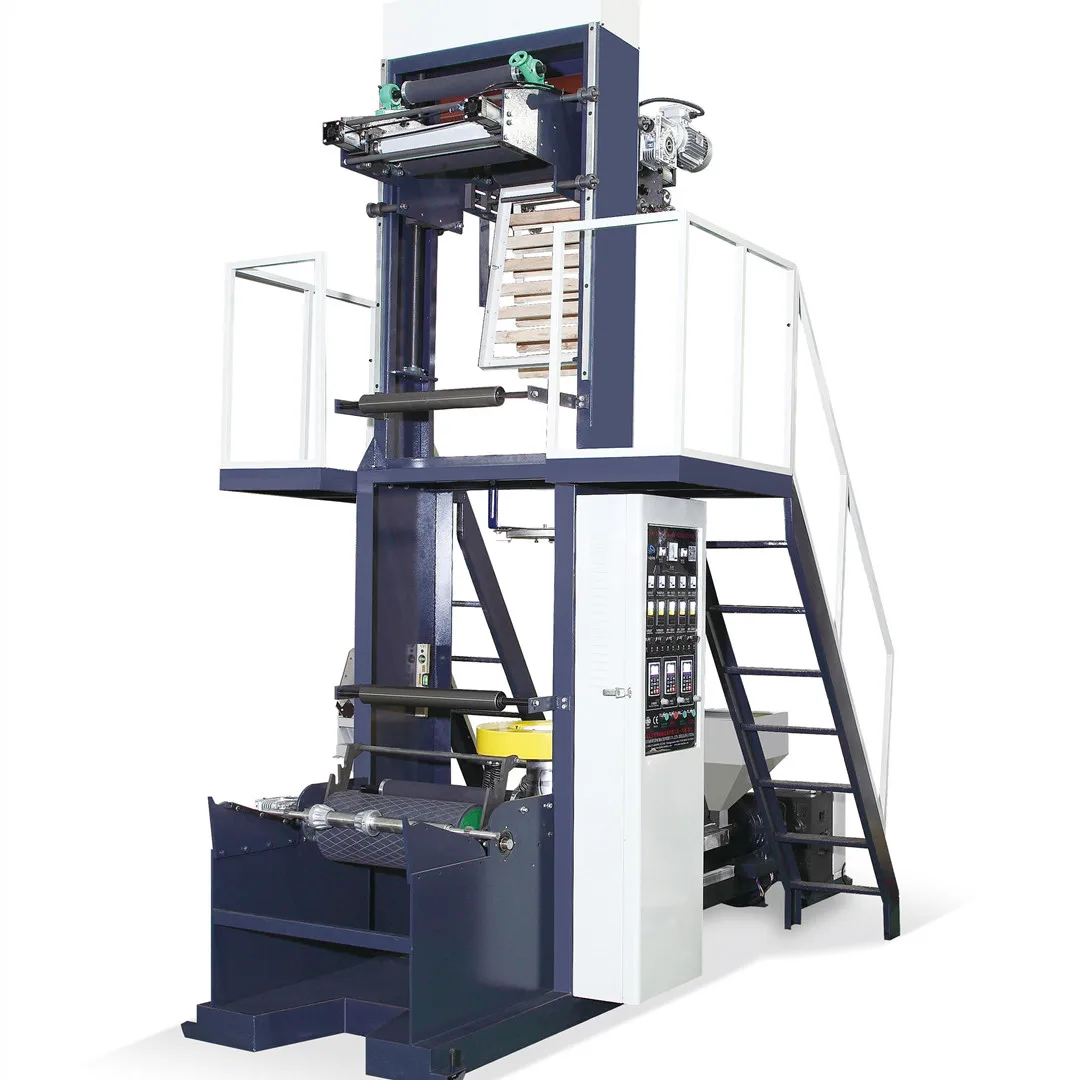

PVA PLA+PBAT Biodegradable Film Extruder PE Nylon Plastic Film Blowing /film Blown/film Making Machine
1 set(s)Minimum order
plastic processed:
HDPE, LDPE, PVA
output (kg/h):
40 - 60
screw diameter (mm):
45
weight (kg):
2500
number of layers:
Single-layer
brand name:
Ruipai
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$13,000.00-30,000.00
1 set (MOQ)
Contact us
Quik Detail
| plastic processed | HDPE, LDPE, PVA |
|---|---|
| output (kg/h) | 40 - 60 |
| screw diameter (mm) | 45 |
| weight (kg) | 2500 |
| number of layers | Single-layer |
| brand name | Ruipai |
| place of origin | Zhejiang, China |
| die size(mm) | 50 - 60 mm |
| model number | RP-M45 |
| voltage | 380V,220V, 440V |
| dimension(l*w*h) | 5*2.4*3.5m |
| key selling points | Biodegradable |
| warranty | 1 Year |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| core components | Gearbox, motor |
| Blow Moulding Type | Extrusion Blow Moulding |
| Layer | 1 layer |
| Suitable Material | PVA PLA+PBAT LDPE |
| Film Thickness | 0.01-0.1mm |
| Air ring | Double vent air ring |
| Weight | 2T |
| Power(W) | 15kw |
| Application | Film |
| Condition | New |
| Applicable Industries | Food & Beverage Shops |
| Showroom Location | None |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Year | 2019 |
Product Detail
Specification
Main technical parameters
Model | RP-M45 |
Suitable material | HDPE LDPE LLDPE PLA+PBAT |
Max. film width | 400mm |
Machine roller width | 500mm |
Film thickness | 0.008-0.1mm |
Capacity | 40-60kg/hr |
Screw | 45mm |
Main motor | 15kw |
Gearbox | 146 |
die size | 50mm |
Cooling blower | 3kw |
Machine size | 3*2.4*3.5 |
