Q345R Carbon Steel Made 30 Tonne lpg Bulk Gas tank , lpg Storage tank Price

1 piece(s)Minimum order
place of origin:
Shandong, China
brand name:
CJSE LPG TANK
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Pressure vessel
dimension(l*w*h):
DN2600 x 10360 x 14/16 mm
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

place of origin

Shandong, China

brand name

CJSE LPG TANK

video outgoing-inspection

Provided

machinery test report

Provided

core components

Pressure vessel

dimension(l*w*h)

DN2600 x 10360 x 14/16 mm

volume (m³)

60

inner material

Q345R

outer material

Q345R

Design Pressure (mpa)

1.77

design standard

ASME/GB150

working temperature(℃)

-19 - 50 ℃

warranty

1 year

key selling points

Long Service Life

Product name

30 tonne lpg bulk gas tank , lpg storage tank price

LPG Tank Capacity

60m3

MAWP

1.82MPa

Design pressure

1.77 Mpa

Working pressure

1.63 MPa

Material of LPG Tank

Q345R carbon steel

Certification

ISO9001/ISO14001/ASME

Key words

lpg tank, lpg storage tank, lgp gas tank

Port of Loading

Tianjin, Shanghai, Qingdao

Volume available

5m3 to 200m3

Condition

New

Marketing Type

New Product 2020

Warranty of core components

1 Year

After Warranty Service

Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location

Viet Nam, Indonesia

Showroom Location

Viet Nam, Indonesia

Applicable Industries

Manufacturing Plant, Food & Beverage Factory, civil and industrial gas station

Capacity

60m3 LPG TANK

Weight

12440KG

Max Working Pressure(MPa)

1.82 MPa

Product Detail

Product Description

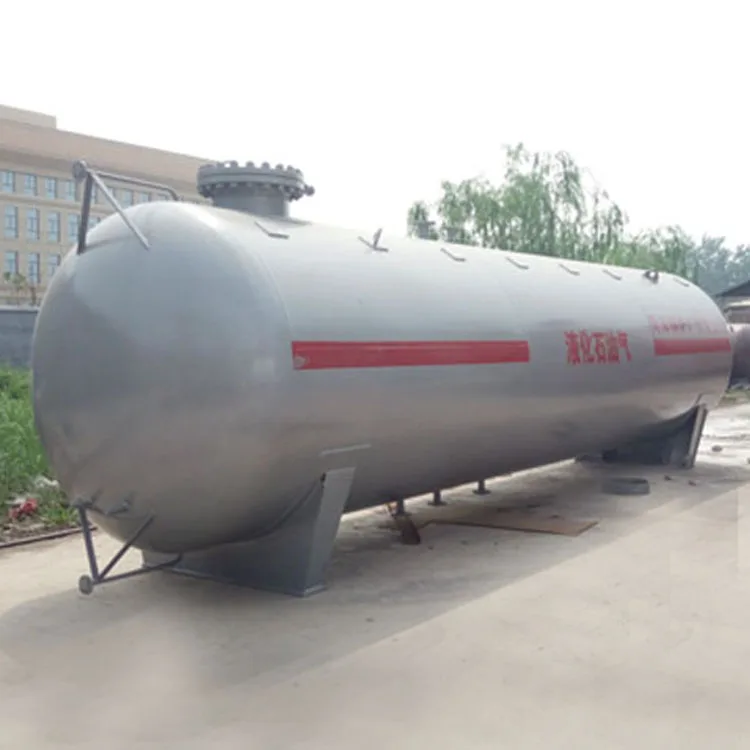

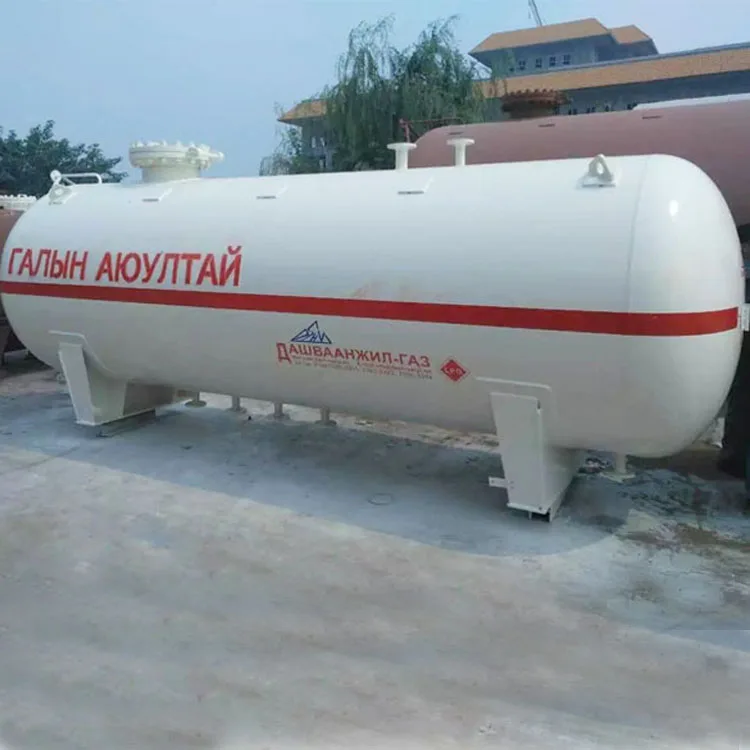

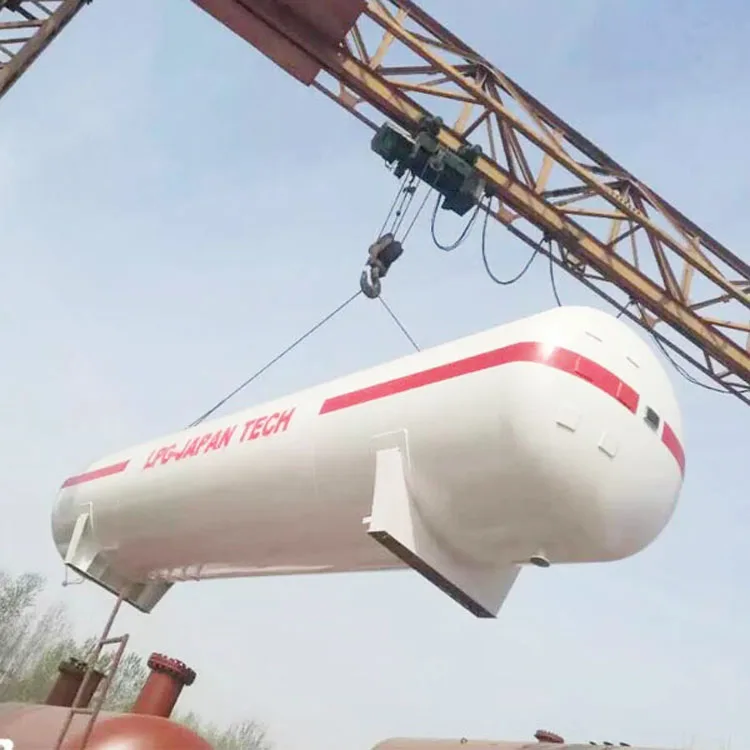

30 tonne lpg bulk gas tank , lpg storage tank price

30 tonne lpg bulk gas tank , lpg storage tank price

Liquefied gas storage tank is a professional product for storing liquefied petroleum gas. It belongs to special equipment, III -level pressure vessel, Q345R material,20 years design life, and have above ground lpg tank and underground lpg tank, widely used in civil liquefied gas stations.

Technical Parameters of Above Ground LPG Storage Tank (5m3 to 200m3)
Model
Specifications (mm)
Weight in theory (KG)
LPG Tank Length (mm)
WG1.77-1200-5
DN1200 x 3980 x 8/8
1580
4676
WG1.77-1400-5
DN1400 x 2750 x 10/10
1770
3545
WG1.77-1400-10
DN1400 x 5980 x 10/10
2910
6789
WG1.77-1600-10
DN1600 x 4400 x 10/10
2750
5303
WG1.771800-15
DN1800 x 5250 x 12/12
4215
6247
WG1.77-2000-20
DN2000 x 5650 x 12/12
4965
6747
WG1.77-2000-25
DN2000 x 7250 x 12/12
5915
8347
WG1.77-2000-30
DN2000 x 8850 x 12/12
6870
9947
WG1.77-2400-40
DN2400 x 8000 x 14/14
9010
9334
WG1.77-2600-40
DN2600 x 6600 x 14/16
8910
8036
WG1.77-2600-50
DN2600 x 8500 x 14/14
10525
9934
WG1.77-2600-60
DN2600 x 10360 x14/14
12335
11796
WG1.77-3000-80
DN3000 x 10250 x 16/18
16800
11888
WG1.77-3000-100
DN3000 x 13200 x16/18
19970
14838
WG1.77-3200-100
DN3200×11300×18/18(16.8)
21210
13038
WG1.77-3400-100
DN3400×9850×20/20(18)
22620
11700
WG1.77-3600-100
DN3600×8550×20/22(20)
22285
10492
WG1.77-3600-120
DN3600×10500×20/22(20)
25765
12442
WG1.77-3600-150
DN3600×13500×20/22(20)
31140
15442
WG1.77-3800-200
DN3800×16300×22/22(20)
41515
18342
Design Parameters for LPG Tank as below:
1. Design Pressure: 1.77MPa                                   2.Working Pressure: 1.63MPa
3. Design temperature: -20/ 54℃                            4.Materials of LPG Tank: Q345R carbon steel
5. Design using life: 20 years                                    6.Heat treatment: Posted wled heat treatment for whole lpg tank
7. Max. allowance working pressure:1.82MPa      8. Standard for Design Manufacturing and Inspection:ASME/GB150

Shot blasting


In order to improve the binding force of the protective layer, the iron shot is sprayed on the metal surface at high speed by means of special tools driven by compressed air. The rust and other contamination on the metal surface are removed by the impact and friction of the iron shot, and a surface with a certain roughness is obtained, which reveals the nature of the metal.

X-Ray Inspection



All main welding seam 100% X-ray detection,

Nozzle, flange C.D welding 100% surface flaw detection to ensure welding quality.

Modern Spraying Room



Modern spraying room, spraying primer twice for each tank and topcoat twice to ensure the appearance quality of products

Heat Treatment for Whole Tank

The whole annealing process is adopted to completely remove the internal stress of the tank body, which is of high safety.Different from local annealing with electric heating belt.

Our company has the largest one-time annealing furnace with 300 cubic meters. According to the characteristics of metals, the heating curve is set to completely remove the internal stress of the tank, which greatly improves the safety performance.

Advantages of LPG Storage Tanks

1) 100% ultrasonic inspection of steel plate;
2) All pressure-bearing parts are welded with full penetration structure to ensure welding strength.
3) All LPG tanks are treated by stress relief heat treatment.
4)100% X-ray inspection of all main welding seams, 100% surface flaw detection of flange C.D welding, to ensure
5)One-by-one hydrostatic test and air tightness test
6) Ultrasound Thickness Measurement

Packing & Delivery

2.5 tons lpg gas tank 5000 l lpg storage tank price for sale

Packing of LPG Tank: Nude Packing;

Loading conditions by sea transportation:
1.one set 5m3 LPG Tank load in one 20GP ;
2.one set 10m3 (DN1600) load in one 20GP;
3.one set 15m3 load in one 40HQ;
4.one set 20m3 load in one 40HQ;
5.one set 30m3 load in one 40HQ;
6.40m3,50m3, 60m3 should be load in 40FR;
7.More than 60m3 lpg tank should be load in bulk vessel .also according to customers special request.

Hot Sale Products

LPG TANK

Aboveground lpg tank : 5000L to 200,000 L
Underground lpg storage tank: 5000 L to 100,000 L
Design Pressure: 1.77MPa
Max. allowance working pressure: 1.82MPa
LPG Tank type: Horizontal Elliptical head Single Layer Pressure Vessel

Skid Mounted LPG Filling Stations

Capacity: 5m3 10m3 15m3 20m3 25 m3 30m3 and 50m3
Standard configuration:
LPG Tank x 1pc. Valves x 1 set,
Hydrocarbon Pump x 2 pcs,
Universal crane tube hose x 1 pc
Gas alarm x 1 pc, Anti-static x 1pc,
Skid base x 1 pc, ,Electricity x 1set,
lpg dispensesr and filling scales will be equipped according to user' demands.

LNG TANK

Capacity: 5M3 to 150M3
LNG Tank type: Horizontal or Vertical Double Layer Vacuum Insualted Cryogenic Tank
Inner Materials: SS30408 Stainless Steel
Shell Materials: Q345R Carbon Steel

Cryogenic LO2/LN2/LAR/LCO2 TANK

LO2/LN2/LAR Tank
Capacity: 5000L to 50,000 L with 8bar and 16bar pressure
Inner materials: SS30408 Stainless Steel
Shell materials: Q345R Carbon Steel
LCO2 Tank
Capacity: 5000L to 100,000 L with 22bar pressure
Inner Materials: 16MnDR
Shell materials: Q345R
