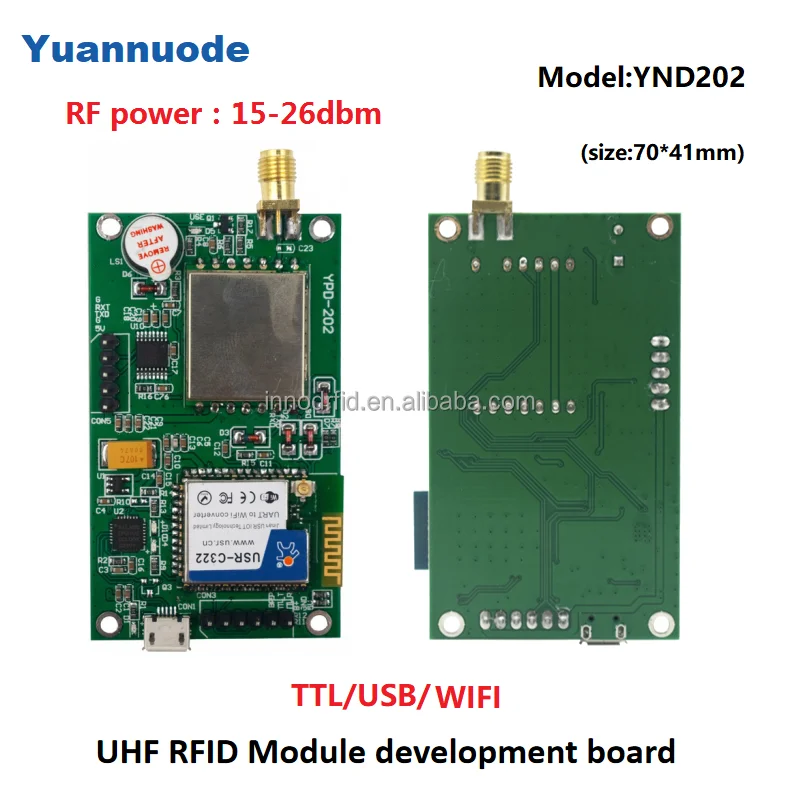

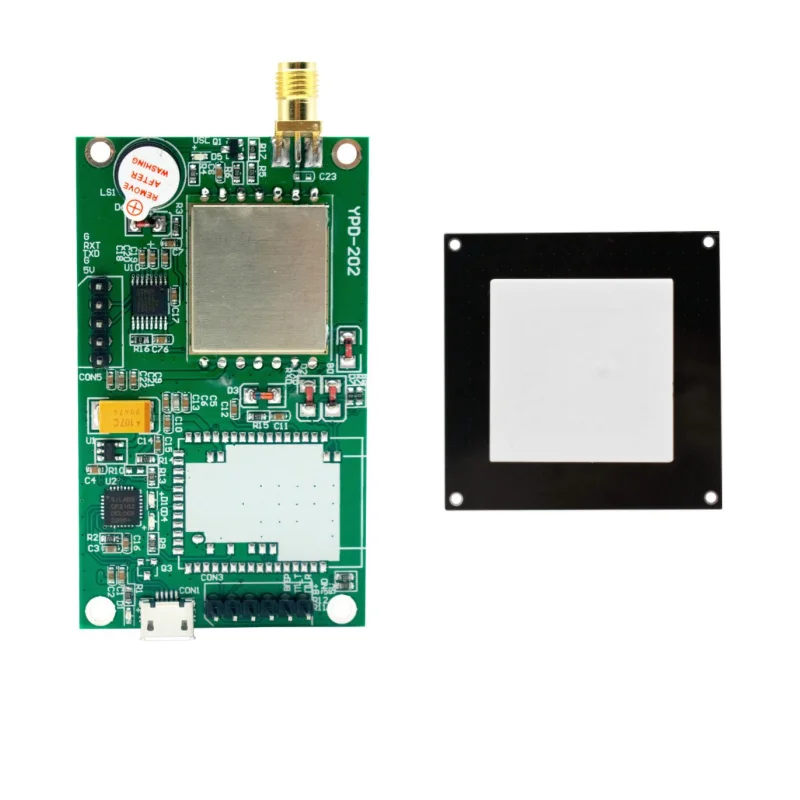

R200 Chip UHF RFID TTL EPS32 Module Wifi UHF RFID Reader Development Kit RFID Modules with Antenna for Arduino Raspberry PI
1 piece(s)Minimum order
Application:
indoor, Windows/Arduino/Raspberry Pi/Android/ESP32
chip:
R200
Special Features:
TTL
Communication Interface:
rfid
Place of Origin:
Guangdong, China
Brand Name:
yuannuode
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$175.00-340.00
1 piece (MOQ)
$0.40-0.50
10 pieces (MOQ)
$0.35-0.90
100 pieces (MOQ)
$9.00-114.00
1 piece (MOQ)
Contact us
Quik Detail
| Application | indoor, Windows/Arduino/Raspberry Pi/Android/ESP32 |
|---|---|
| chip | R200 |
| Special Features | TTL |
| Communication Interface | rfid |
| Place of Origin | Guangdong, China |
| Brand Name | yuannuode |
| Model Number | YND202 |
| Frequency | 860-960mhz |
| Product Name | UHF RFID Reader |
| Interface | TTL/(WIFI/BLU TOOTH) |
| Type | Passive R200 UHF RFID Reader module TTL EPS |
| Read range | 0-8m (depend on antenna tags and spplication) |
| Working frequency | 902-928 MHz/865-868 MHz |
| Air Interface Protocol | EPC CLASS1 G2/ ISO18000-6C |
| RF Power | 15-26dbm |
| Power Supply | DC 3.5v-5v |
Product Detail
Specification
Model | YND202 |
Name | UHF RFID reader module |
Frequency | 902~928MHz/865~868MHz |
Protocol | ISO 18000-6C |
RF power | 15-26dBm |
Interface | TTL UART(Blue.tooth/WIFI optional) |
Antenna Connector | 1 port ,SMA |
Antenna gain | 1dbi/2dbi/3dbi/4dbi/5dbi/5.5dbi |
Reading range | 0-10M(depends on antenna,tag performance and site environment |
Operating voltage | DC 3.5v-5v |
Baud rate | 115200 bps(default and recommend) 38400bps |
Standby Mode Current | <80mA(EN pin high level) |
Sleep Mode Current | <100uA(EN pin low level) |
Operating temperature | - 20 °C - + 70 °C |
Storage temperature | - 20 °C - + 85 °C |
Working humidity | < 95% ( + 25 °C) |
Receive Sensitivity | < -75dBm |
Tags storage capacity | 200pcs tags @ 96 bit EPC |
Tags RSSI | Support |
Heat Dissipation | Air cooling |
Product Description
Packing & Delivery
Company Profile
Certifications
FAQ
1. Q: How do l pay for my purchase?
A: we accept the following payment methods: credit card; T/T; Paypal;
2. Q: ls there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment status on the corresponding website.
3. Q: Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
4. Q: I am a reseller, I would like to buy many pieces of your item, what's the wholesale price?
A: Thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
