Rotary Phase Converter AC 110v 220v 60hz 50hz Single Phase to 3 Phase Converter Frequency Converter
1 piece(s)Minimum order
Network:
SDK
Place of Origin:
Guangdong, China
Brand Name:
YUCOO
Model Number:
YK-BPSeries
Type:
DC/AC Inverters, frequency converter
Output Type:
Single Phase, 3 phase
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$580.00-652.50
1 set (MOQ)
$7.40-9.20
5 pieces (MOQ)
$30.00-60.00
5 pieces (MOQ)
$24.00-32.00
5 pieces (MOQ) Contact us
Quik Detail
| Network | SDK |
|---|---|
| Place of Origin | Guangdong, China |
| Brand Name | YUCOO |
| Model Number | YK-BPSeries |
| Type | DC/AC Inverters, frequency converter |
| Output Type | Single Phase, 3 phase |
| Output Current | 4.2A/8.4A/14A/16.8A/21A/25A and etc |
| Output Frequency | 50Hz/60Hz/45~70hz/400hz/47~63hz |
| Size | 43*18*44mm/1120*600*820mm and etc |
| Weight | 26Kg/32Kg/200Kg and etc |
| Product name | frequency converter |
| Input voltage | 1phase/3 phase 220VAC 50Hz/60Hz |
| Output voltage | 1 phase; 3 phase; 1 phase/3 phase |
| use | Civil /industrial/aircraft |
| Output adjust type | Knob type/Press key type |
| Feature | High precision display |
| characterisctic | Programmable dynamic output |
| load frequency rate | ±0.1% |
| OEM | OEM Support |
| Warranty | 12 Months |
| Customized support | Software reengineering |
| Certificate | CE |
Product Detail
Product Features
Features:
1. Programmable dynamic output voltage
2. High precision frequency stabilizing and voltage stabilizing, key-press quick
3. Adjustment voltage and frequency

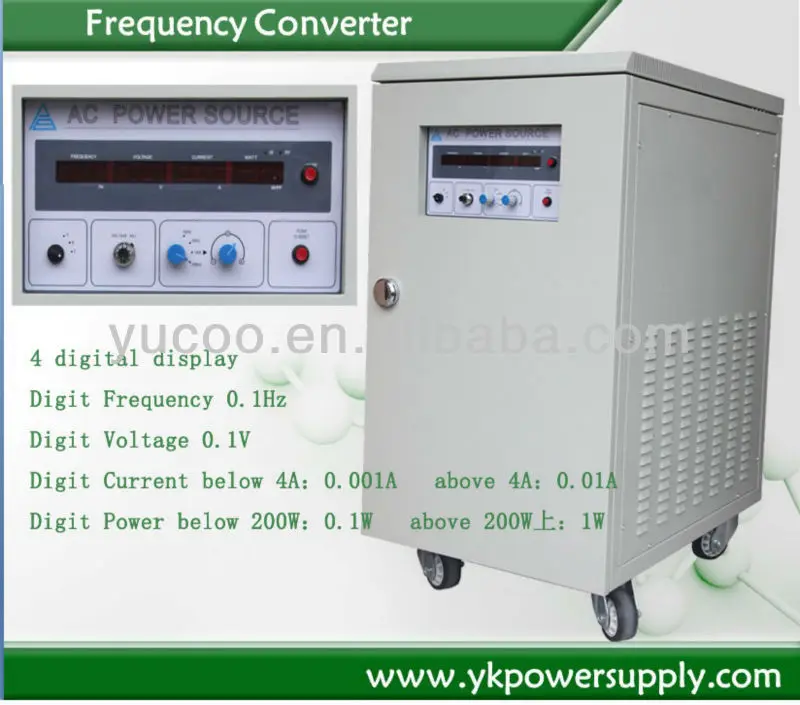

4. High precision display: voltage, current, frequency and active power
5. Unique voltage frequency group shortcut output mode 220V/50Hz, 110V/60Hz and 120V/60Hz
6. Output frequency: 47～63Hz(400Hz optional)
7. Output voltage: 0~300V can adjust and simulate voltages from all countries in the world
8. It has multiple protections of overvoltage, over current, overload, over temperature and alarm function
Product Parameters
Model | YK-BP80 Series | YK-BP81 Series | YK-BP83 Series | YK-BP88 Series | ||||
Output capacity (KVA) | 0.5~10/15-200 | 1~15/20~200 | 3-600 | 1-15/20-200 | ||||
Output Rate power (KW) | 0.4~8/12~160 | 0.4~12/16~160 | 1~200 | 0.4~12/16~160 | ||||
Circuit mode | IGBT/PWM pulse width modulation mode | |||||||
AC input | Single-phase 220VAC 50Hz/60Hz or 3 Phase 380Vac 50Hz/60Hz | |||||||
AC output | ||||||||
Phase | Single-phase | Single-phase | Trip phase (phase difference 120° ± 2° ) | Single-phase/ 3 phase | ||||
AC Voltage Output | ||||||||
Low range | 0~150V | 0~150V | 0~150V | 0~150V | ||||
High range | 151~300V | 0~300V | 0~300V | 0~300V | ||||
Output Frequency | 47Hz~63Hz/50Hz/60Hz | 40Hz~70Hz/50Hz/60Hz/400Hz | 45Hz~70Hz/50Hz/60Hz/400Hz | 40Hz~70Hz/50Hz/60Hz/400Hz | ||||
Max Current output | ||||||||
Low range | 4.2A~84A/125A~1667A | 4.2A~125A/168A~1667A | 8.4A~1667A | 4.2A~125A/168A~1667A | ||||
High range | 2.1A~42A/63A~834A | 2.1A~63A/84A~834A | 4.2A~833A | 2.1A~63A/84A~834A | ||||
Frequency stability rate | ≤±0.1% | |||||||
Load voltage stabilizing rate | ≤±0.5% | |||||||
Waveform distortion degree | ≤2%(resistance load) | |||||||
Response time | ≤2ms | |||||||
Protection | overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device | |||||||
Working temperature | 0℃~45℃ | |||||||
Working humidity | Relative 0～90%（non-coagulation state ） | |||||||
Dimensions (cm) | 43*18*44~80*120*145 cm | 43*18*44~100*150*160 cm | 190*305*430~1650*800*1200 cm | 43*18*44~100*150*160 cm | ||||
Weight(Kg) | 26~1150 Kg | 26~1900 Kg | 30~1450 Kg | 26~1900 Kg | ||||
