Shenzhen Dc 3v 5v 12v 5010 Motor Brushless Cooling 2 Inch 50X50X10mm Mini Exhaust 50mm Fan
Other recommendations for your business
Contact us
Quik Detail
| electric current type | DC |
|---|---|
| mounting type | FREE STANDING |
| blade material | Plastic |
| place of origin | Guangdong, China |
| brand name | The source of the wind |
| model number | FD5010B2M-AP00 |
| Voltage | 12V |
| warranty | 1 Year |
| after-sales service provided | Online support |
| Type | Axial Flow Fan, Axial Flow Fan |
| Blade Material | Plastic |
| Frame Size | 50*50*10mm |
| Bearing Type | Ball Bearing |
| Motor | Copper Motor |
| Current | 0.06A |
| Power Supply | 12V |
| Noise Level | 28.4dBA |
| Feature | Silent |
| Unit Weight | 19g |
| Applicable Industries | hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Printing Shops, Construction works |
| Core Components | motor, Bearing |
Product Detail
Shenzhen dc 3v 5v 12v 5010 motor brushless cooling 2 inch 50X50X10mm mini exhaust 50mm fan

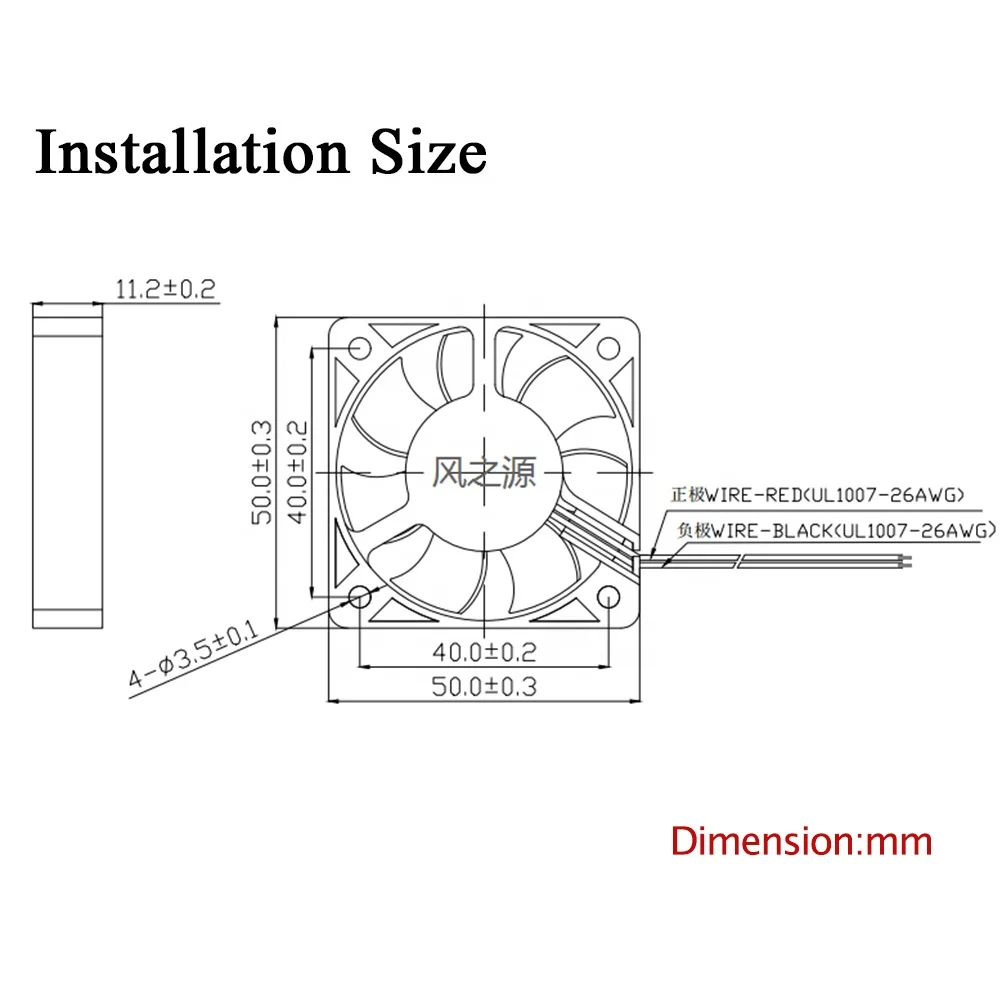

Model : FD5010B2M-AP00Size : 1.96”*1.96”*0.39”/50mmx50mmx10mm
Name : DC Brushless Dual Ball Bearing Cooling Fan
Frame Material:Thermoplastic PBT to ensure the blades could not easily deform and perform better.
Bearing Type : 2 Ball Bearing
Rated Voltage : DC 12V
Operation Voltage :10.8V-13.2V
Rated Current : 0.12A
Noise Level : 28.5dBA
Cord Length : 1.77”/45mm
Consuming Power : 0.72W

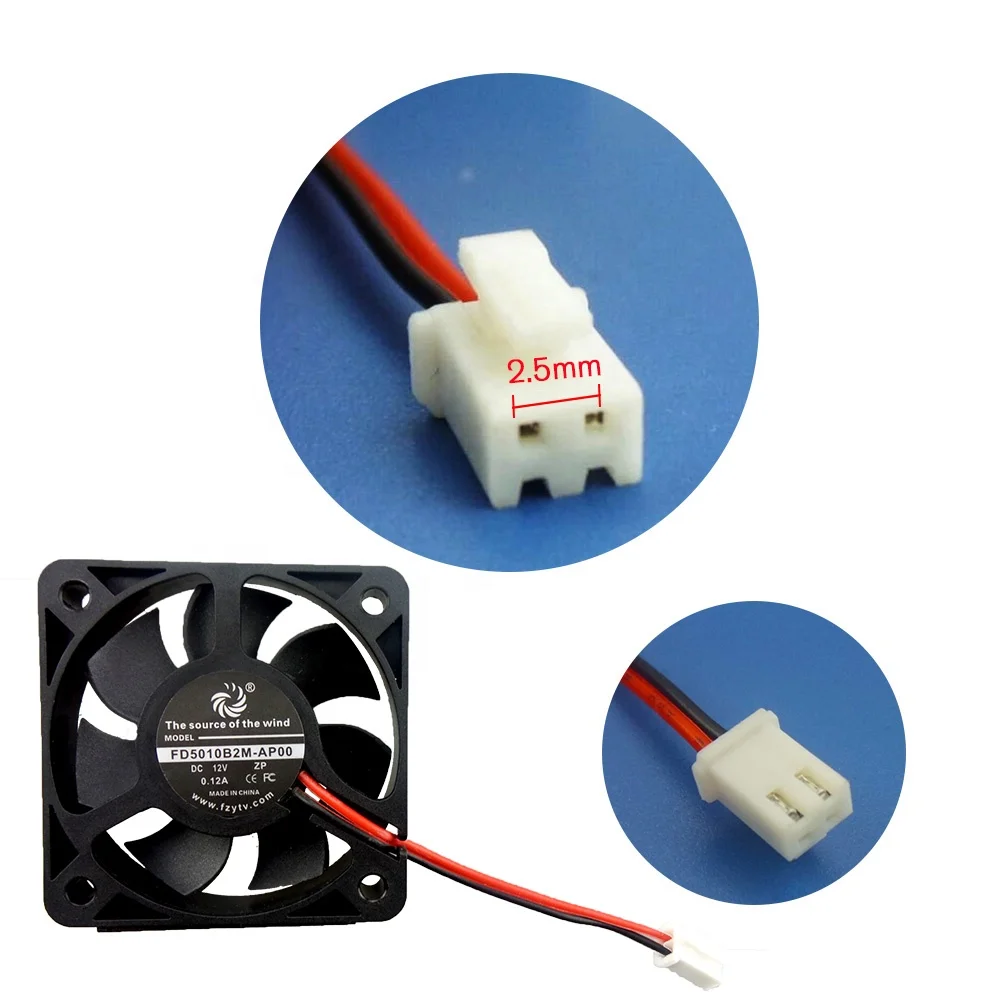

Connector : Forward Terminal Connector with 2pin-ph2.5mm
Rated Speed : 5000 RPM
Air Flow : 10.43CFM
Life Expectance : 50,000 hours at normal degree
Certificate : FCC,CE,ROHS
Unit Weight : Approx. 19g
Warning : Do not touch the fan blades when running to avoid injury.And the wire is only 1.77”/45mm,please pay attention to check if it's suitable for your devices.
Package Content : DC Brushless Cooling Fan,without screws or nuts.
Q1: Are you a factory or trading company ?
A1: We are a factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V 48V 60V and72V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.
Q3:How about the lifetime of fan?
A3:
|
Bearing type |
Lifetime |
|
Dual Ball Bearing |
50000 hours |
|
Sleeve Bearing |
20000 hours |
|
Hydraulic Sleeve Bearing |
30000 hours |
Q4: What effects the quoted price for the fan?
A4:
|
Specification |
Example |
|
1 size of the fan |
4010 (40*40*10mm) |
|
2 Voltage |
5V\12V\24V |
|
3 current |
0.15A |
|
4 speed |
8000RPM |
|
5 air flow |
8.6CFM |
|
6 noise |
24dBA |
|
7 bearing type |
ball\sleeve\Hydraulic sleeve |
|
8 two wire or three wire |
2 wire |
|
9 cable length |
100mm |
|
10 connector type |
2 pin,2.5mm pitch |
|
11 function |
FG\RD\PWM\Soft Start ...... |
|
12 quantity |
100\1000\5000\10000 ...... |
Q5:Certificate?
A5:FCC,CE, ROSH,ISO9001,ISO14001 Approved.
Q6:What is the delivery time?
A6:Sample lead time:3-5 days
Mass production delivery lead time:2-3 weeks(Depend on the quantity)
Q7:Delivery ways ?
A7:FedEx, DHL ,UPS,TNT Door to Door service ,By Air ,By Sea ,etc.
Q8:Payment terms ?
A8: By T/T or Paypal .
100% payment for sample orders .
30% as deposit and 70% balance before shipment .
Q9: What is the fan use for?
A9:
|
Office supplies |
3D printers |
|
Industry & Scientific |
Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer. |
|
Home & Kitchen |
Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine. |
|
Computer appliances |
CPU cooler,Case. |
