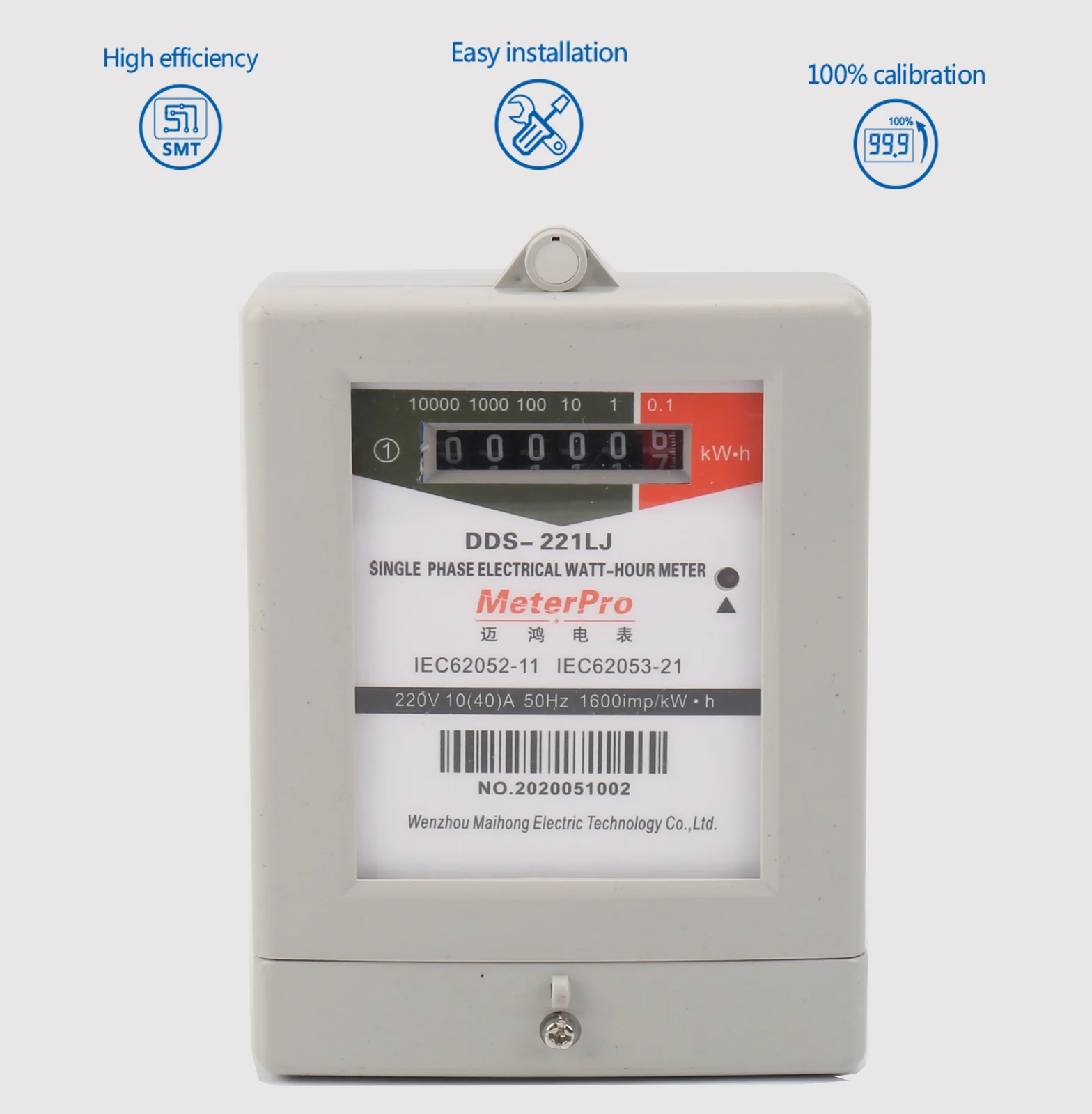

Single Phase Old Used Electric Sub Meters with Second Hand PCB

1 piece(s)Minimum order
Place of Origin:
Zhejiang, China
Brand Name:
MIRACLE
Model Number:
DDS-121T
Display Type:
Analog and Digital
Phase:
Single Phase
Measuring Energy Range:
5(30)/10(60)/20(80)
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Place of Origin

Zhejiang, China

Brand Name

MIRACLE

Model Number

DDS-121T

Display Type

Analog and Digital

Phase

Single Phase

Measuring Energy Range

5(30)/10(60)/20(80)

Accuracy Class

Class1/class2

Output Voltage

110V/220V

Operating Temperature

-30 ~55℃

Dimensions

218*145*71mm

Type

AC Active Meter

Standard

IEC62053-21,IEC62052-11

Frequency

50/60Hz

Display

6 Digits Register or 7 digits LCD

Starting current (A)

0.02,0.04,0.08

Package

inner box with master carton

Features

high reliability

Sample

Available

OEM

Allowed

Product name

Single phase used electric meters with second hand PCB

Product Detail

Details
Product Paramenters
Reference voltage
110~240V
Working voltage range
Provisional voltage range:90%Un~110%Un
Expending voltage range :80%Un~115%Un
Current
CT type: 1.5(6)A
Direct type:2.5(10)A,5(20)A,10(40)A, 15(60)A,20(80)A,30(100)A
Accuracy level
Active Class 1.0
Reactive class 2.0
Operating temperature
Regulated temperature :-25~+60c
Limit temperature:-40c~+70c
Relative humidity
≤95(no condensation
Frequency
(50±2.5)Hz/(60±2.5)Hz
Static power consumption
<1.5W, 10VA
