Small Flat Bed Automatic Paper Cup Box Cardboard Roll to Sheet Die Cutting Machine for Paper Cup Fan
Other recommendations for your business
Contact us
Quik Detail
| type | Die-cutting Machine |
|---|---|
| computerized | Yes |
| place of origin | Henan, China |
| brand name | FECT |
| voltage | 380V 3P |
| dimension(l*w*h) | 4000(L)*2100()W*1850(H)mm |
| warranty | 1 Year |
| production capacity | 90-150times/min |
| key selling points | box cardboard roll to sheet die cutting machine |
| Working Width | 950 mm |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| core components | motor, Gearbox, PLC, box cardboard roll to sheet die cutting machine |
| plc brand | DELTA, box cardboard roll to sheet die cutting machine |
| Function | box cardboard roll to sheet die cutting machine |
| Max paper size | 950*550mm |
| Speed | 90-150times/min |
| Die Cutting Precision | ± 0.10mm |
| Suitable material | 150-800gsm |
| Pressure | 280ton |
| Air source | 0.7Mpa, 1.5m3/min |
| Application | die cutting and creasing paper box |
| Control system | AC Servo Motor |
| Name | Automatic cardboard paper cup die cutting machine |
| Showroom Location | Egypt, Turkey, United Kingdom, Viet Nam, Saudi Arabia, Mexico, Russia, Spain, Thailand, Kenya, UAE, Uzbekistan, Morocco, box cardboard roll to sheet die cutting machine |
| Condition | New |
| Marketing Type | Hot Product 2019 |
| Warranty of core components | 1 Year |
| Applicable Industries | Food & Beverage Factory, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company, box cardboard roll to sheet die cutting machine |
| Weight | 7.5 kg |
Product Detail
MQ970 Automatic paper cup box cardboard roll to sheet die cutting machine for paper cup fan
♦Application♦
MQ970 Automatic paper cup box cardboard roll to sheet die cutting machine for paper cup fan is widely used in printing, packing and paper box, paper cup industries. Suitable for die cutting and creasing various kinds of PE coated paper, normal paper, corrugating paper and plastic material, such as paper cup, paper bowl, cigarette case, envelope, paper bags and various paper-plastic products.
♦Features♦
1) German technology, machine core worm gear, worm structure, synchronization to send oil to machine parts could prolong the service life of equipment.
2) The professional typesetting technology sector paper to save up to 18%, save manpower cost, manufacturing cost, improve production efficiency.
3) Control the feeding, the realization of color code tracking, precision die-cutting.

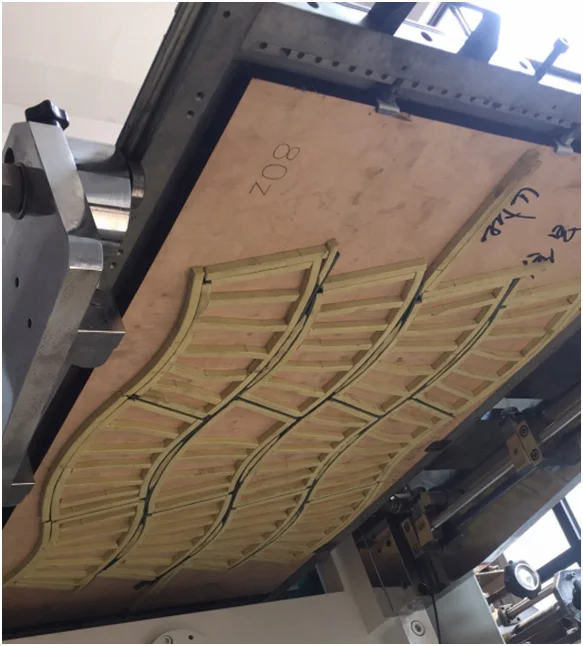

4) According to the paper layout, use different shape knife version, pneumatic locking knife version, easy to change.
5) Paper random double row roller synchronous movement, help feed wind at the same time, improve the paper function.
6) Drum pressure half die cutting, creasing, tile tree fern, multi-usage.
♦Techincal parameter♦
|
Model |
MQ-970 |
|
Die Cutting Precision |
± 0.10mm |
|
Speed |
90-150times/min |
|
Cutting area |
970*550mm |
|
Suitable material |
120-600gsm |
|
Pressure |
280ton |
|
Power |
11kw |
|
Weight |
7500kg |
|
Air source |
0.7Mpa, 1.5m³/min |
|
Dimension |
4000(L)*2100(W)*1850(H)mm |
♦ Detailed images♦
Our machine in Bharain
Our machine in Spain
| 50 pcs per min paper cup making machine | 150 pcs per min paper cup making machine |
 |
 |
| double wall paper cup making machine | with handle Paper cup making machine |
 |
 |
| Paper cup printing machine | Paper cup cutting machine |
 |
 |
| Takeaway round paper box machine | Paper lunch burger box making machine |
 |
 |
| Package detail | 2 wooden cases, |
| Package size | 2910x1870x2060mm, 11.2 CBM , 1300x1870x1270mm , 3.09CBM |
| Gross weight | 6500 kg |
Zhengzhou Perfect Co., Ltd. is a manufacturer of printing, die cutting machines with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for external packaging materials’ printing, coating, die cutting, slitting, embossing and others on the products including cigarettes and wines, food, cosmetics, and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, we not only provide machines, more importantly, we provide solutions based on your detail needs, welcome to visit our factory, we can pick you up at the airport.
Q2 : What quality certificates you have?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3: Do you inspect the finished machines?
A: Yes, we have QC department,they will inspect every machine before packing and provide test video to ensure there is nothing problem of the machines.
Q4 : What payment terms are accepted?
A: Usually we appreciate TT(Telegraphic Transfer) 30% deposit , then 70% balance paid before shipment, .L/C , Western Union, MoneyGram is also available ,and do CFR&CIF etc.
Q5 : When can the machine be shipped after order is placed?
A: Around 20~30 days, it depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and engineer distributed to overseas is available.
