Small Mud Slurry Pump for River Sand Suction Dredging
Other recommendations for your business
Contact us
Quik Detail
| warranty | 1 year |
|---|---|
| customized support | OEM, ODM |
| brand name | Ocean |
| model number | PS |
| place of origin | Shandong, China |
| application | Marine, Mining industry |
| horsepower | 29-293hp |
| power source | Electric |
| pressure | Low Pressure |
| structure | Single-stage Pump |
| outlet size | 23# & 46# |
| voltage | Any |
| power | 22-220kw |
| Usage | Sand ,Mud,Slurry,Sewage... |
| Color | Customer Specifications |
| Speed | 600-1400rpm |
| Working Method | Horizontal |
| Flow | 150-1500m3/h |
| Size | Can be Customized |
| Dredging Depth | 10-20m |
| Head | 20m |
| Warranty | 1 Year Warranty(except Wearing Parts) |
| Max.flow particle dia. allowed | 25mm |
Product Detail

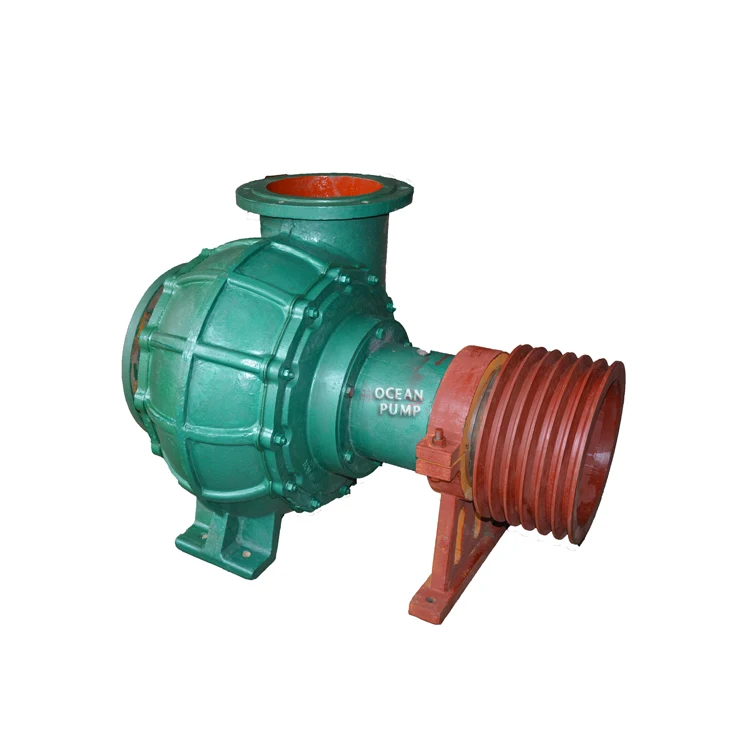

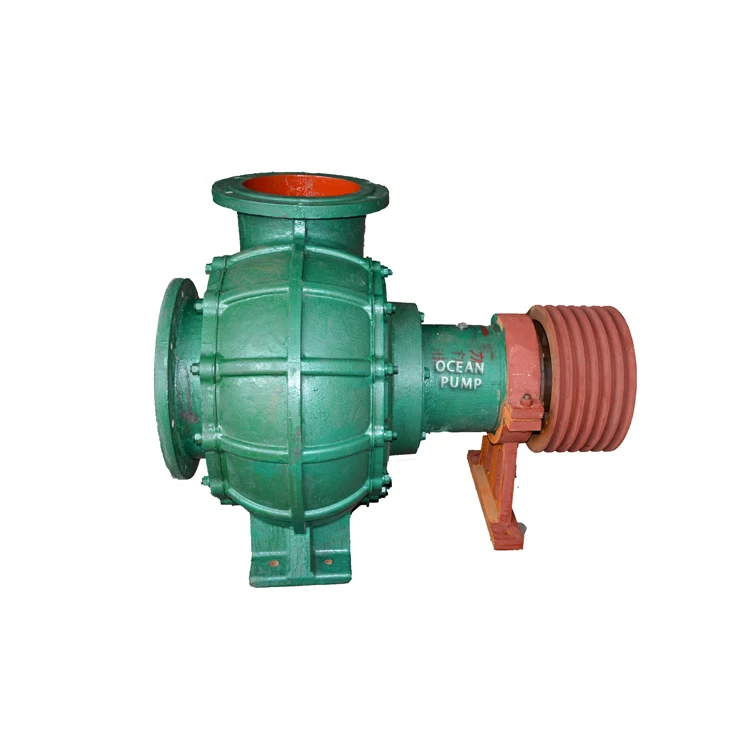

Small Mud Slurry Pump for River Sand Suction Dredging
Mud slurry pump is also called simple horizontal sand pump. The mud slurry pump is mainly designed for sucking the small size sand or slurry. The mud slurry pump can use the high speed rotation impeller to form the huge suction ability and to achieve the high efficient dredging sand. The mud slurry pump is widely applied for lake, river, sea, sedimentation tank and mining pit dredging etc. Currently the mud slurry pump equipped with the simple sand dredger is our main exporting sand pump machine. The mud slurry pump can also customized with the detailed working condition.
| Size | Flow(m³/h) | Head(m) | Speed(rpm) | Power(KW) |
|---|---|---|---|---|
| 4” | 150 | 12 | 1400 | 22 |
| 6” | 260 | 12 | 1400 | 56 |
| 8” | 360 | 15 | 1200 | 90 |
| 10” | 480 | 15 | 1200 | 132 |
| 12” | 900 | 20 | 900 | 145 |
| 14” | 1100 | 20 | 750 | 175 |
| 16” | 1500 | 20 | 750 | 220 |
| 18” | 1950 | 20 | 750 | 450 |
| 20” | 2480 | 20 | 750 | 675 |
Remark: 1. All these pumping have two types: double flange one and single flange
one, please choose according to your actual requirements.
2. The pumping material can be iron casting, alloy according to different
site situation requirements.
- Single stage, single suction, mud slurry pumping.
- Easy operation, transportation and maintenance.
- Open impeller, wear resistance, big flow and better non-blockage performance.
- Two types: double flange and single flange.
- Two materials: iron cast and alloy.
- Mainly used for pumpinging sand from small river, lake, pond, pool.
- Unloading or sucking sand from large dredger.
Our Fiji customer inquired us for a 4 inch mud slurry pumping with diesel engine, he demand to discharge the material to 50 m. Our 4 inch portable series mud slurry pumping can exactly meet his requirement, so we recommend him. This mud slurry pumping is usually used on our small sand dredge, which is hot-selling in Africa countries and won good comments for many years.
Since the customer use the centrifugal mud slurry pumping set separately but not in dredger, he needs to irrigate water into pumping case before sucking sand. To prevent the water flow out, we added a bottom valve for him to connect on the suction hose end.
Parameters of suction dredge pump for customer
| No. | Products | Details |
|---|---|---|
| 1 | 4 inch suction dredge pump | 20-35 m3/h solid sand, head 12m, diesel engine 43 kw, fuel consumption 6L/H |
| 2 | Bottom valve | Used for prevent water backflow |
| 3 | Wearable hose | 50m , to discharge sand |
As the professional sand pumping and dredger designer, manufacturer and exporter, OCEAN Pumping had been worked harder to become the leader to supply One Stop Sand Pumpinging Solutions to worldwide customers since 1997. We have more than 30 talented sand pumpinging experts and strong teams responsible for product development, manufacturing, quality control, exporting, after sales service. We have our own manufacturing factory with professional technicians and advanced machines. By choosing OCEAN Pumping, you choose a long term professional partner for your sand pumpinging business.
