SMT FR4 High Tg Rohs OEM Electronics High-difficulty multilayer Pcb printed circuit board PCB Assembly and PCBA in guangzhou
US $0.50-5.00 / piece
2 piece(s)Minimum order
Model Number:
PCB Assembly
Type:
Communication Equipment
Place of Origin:
Guangdong China
Brand Name:
Leizzi
Supplier Type:
PCBA Manufacturer
Copper Thickness:
1-6 oz
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$1.88-3.88
1 piece (MOQ)
$0.60-1.80
1 piece (MOQ)
$1.80-3.90
1 piece (MOQ)
$0.80-5.00
1 piece (MOQ) Contact us
Quik Detail
| Model Number | PCB Assembly |
|---|---|
| Type | Communication Equipment |
| Place of Origin | Guangdong China |
| Brand Name | Leizzi |
| Supplier Type | PCBA Manufacturer |
| Copper Thickness | 1-6 oz |
| Functional Application | Consumer Electronics |
| Base Material | FR4/High TG FR-4/M4/ M6/Rogers/Nelco/Isola |
| Solder Mask | Green,Black,Blue,Red,Matt Green |
| Legend | White,Black,Red,Yellow |
| Sample delivery | Within 24 Hours |
| Service | 2Hours technical services |
| PCBA service | SMT Technology |
Product Detail
Product Description
Specification
PCB Assembly capability | ||
Stencil Size Range | 29inch*29inch | |
SMT | Position accuracy:25um | |
Components size:0201--150mm | ||
Max.PCB Size:680mm*500mm | ||
Min.PCB size:50mm*50mm | ||
Min.PCB Thickness:0.3mm--6mm | ||
Min.IC Pitch:0.30mm | ||
Wave-Solder | Max.PCB width: 450mm | |
Min.PCB width: no Limited | ||
Component height: Top 120mm/Bottom 15mm | ||
Min. BGA pitch | 0.008" | |
Mаx. BGA Size | 74mm x74mm | |
BGA Ball Pitch | 1.00mm(Min);3.00mm(Max) | |
BGA Ball Diameter | 0.40mm(Min);1.00mm(Max) | |
QFP Lead Pitch | 0.38mm(Min);2.54mm(Max) | |
Testing | X- | |
ICT,Function test, Temperature cycling | ||
Frequency of Stencil Cleaning | 1 time /5 ~ 10 pieces | |

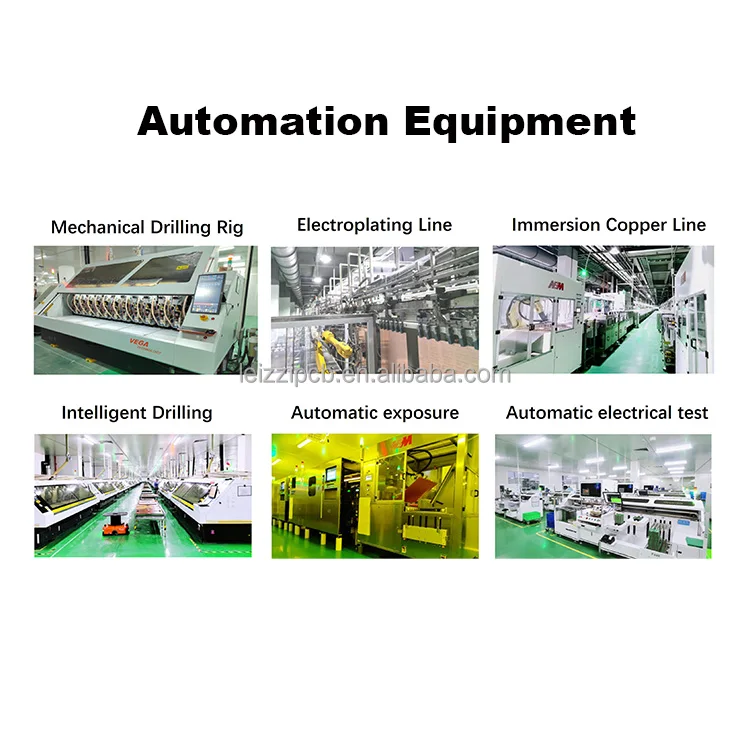

Company Profile
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Are you a factory？
A1:Yes, we are a factory with 15 years of experience in manufacturing High Layer HDI PCBs. You can learn more about us through:
1. Factory certifications
2. Factory work and environment video
3. Our products on Alibaba\Company Website
4. Invitation to visit our factory
5. UL certificate number
Q2: What are your main products?
A2: We specialize in multi-layer HDI boards, high-frequency and high-speed boards, 2-64 layer PCBs, and custom technical boards.
Q3: What about pricing?
A3: We offer competitive pricing based on order volume, with discounts available. We also provide a clear breakdown of cost structures to ensure value for money.
Q4: How do you ensure on-time delivery?
A4: Our efficient supply chain ensures 99% on-time delivery for quick-turn orders and 90% for standard orders, outperforming most competitors.
Q5: How is the quality of your products?
A5: Our products meet all safety and environmental standards. We have over 30 QC personnel and advanced automated testing equipment to ensure 100% compliance with customer requirements..
Q6: What certifications do you have?
A6: We have ISO9001, UL and all major PCB certifications.
Q7: What is your after-sales policy?
A7: We offer a 1-year 100% after-sales service from the date of delivery.
Q8: How well-known is your brand?
A8: We focus on building brand awareness through social media and cross-border e-commerce platforms.
