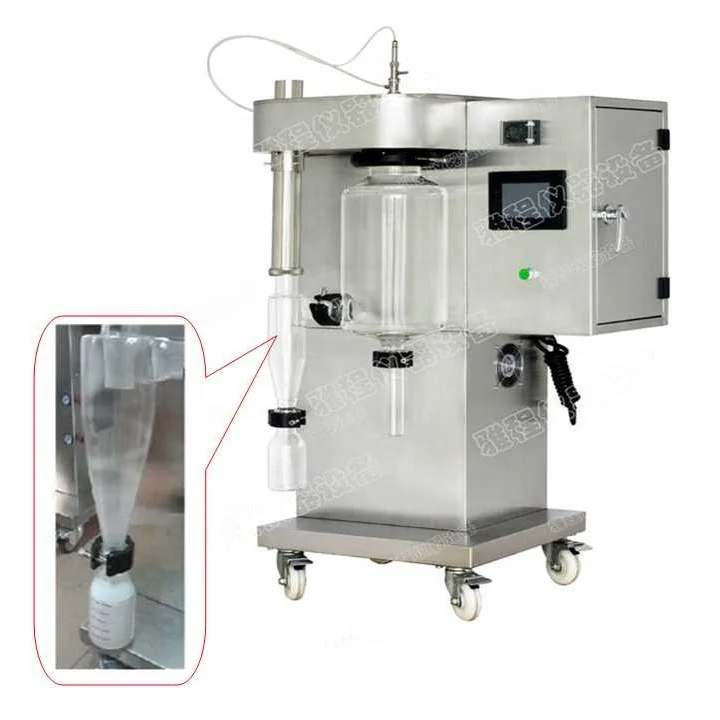

Spray Drying Equipment Milk Powder Making Machine
Other recommendations for your business
Contact us
Quik Detail
| type | Spray Drying Equipment |
|---|---|
| application | Food Processing |
| place of origin | Shanghai, China |
| brand name | Pilotech |
| voltage | 220V |
| power(w) | 3.5KW |
| dimension(l*w*h) | 770*600*1400mm |
| key selling points | Easy to Operate |
| warranty | 1 Year |
| weight (kg) | 123 |
| machinery test report | Not Available |
| video outgoing-inspection | Provided |
| core components | Pump, PLC |
| heating method | Electric Heating |
| material | SUS304, SUS316 |
| Evaporating Capacity | 1500ml-2000ml/h |
| Atomizer material | SUS 316 stainless steel |
| Body material | SUS 304 |
| Chamber material | Borosilicate glass |
| Dry cycle time | 1.0-1.5s |
| Air Inlet temperature | 30℃-300℃ |
| Air Outlet temperature | 30℃-140℃ |
| Noise | <60db |
| Min sample feed | 30-50ml |
| After-sales Service Provided | Online support |
Product Detail
Spray drying can be used in a wide range of applications where the production of a free-flowing powder sample is required. This technique has successfully processed materials in the following areas:
• Oxide • Blood • Polymers and Resins
• Beverages • Flavours & Colourings
• Milk & Egg Products • Plant & Vegetable Extracts
• Heat Sensitive Materials
• Plastics • Perfumes • Dyestuffs
• Ceramics & Advanced Materials
• Soaps & Detergents •Textiles
• Foodstuffs • Adhesives
• Bones, Teeth & Tooth Amalgam and many others
1.Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.
2.A built-in oil-free air compressor must be equipped with the stainless steel air tank to prevent corrosion.
3.Shutdown protection function: just press the stop button when shutting down. The machine will stop running immediately except for the blower to ensure that the heating part of the equipment will not break down due to improper operation(shutting down the blower by force)
4.The spray head is a concentric one. It guarantee no eccentricity during atomization that may lead to spraying to the bottle wall. The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect. The spray head is made of SUS316L stainless steel.
5.It can be upgraded to an organic solvent model with inert loop system.
6.For the exhaust gas, 1 micron precision filter is optional.
7.A de-blocker cleaner (needle) is equipped and it will automatically clear the blockage when the nozzle is blocked. The frequency of the de-blocker needle can be adjusted automatically.
1.Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process . PLC controller, LCD touch panel control fascia with flow path of system. Using proface touchable interface display operation, operator can control temperature, airflow volume, air pressure,pump speed and de-blocker frequency.
2.Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alk li, high temperature. It can work in a no-pollution and stable environment, and the whole process can be inspected. All the spare parts are easy to install and wash.
3.Made of SUS-316 Stainless steel. Easy operating.
4.To assure accurate temperature control and easy parameter adjusting, YC-015 applies PID.
5.A filter has been equipped to the inlet unit to prevent the sample from contamination .
6.The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.. To make sure the process conducted steady and smoothly, magnetic agitator is optional to make the solution well mixed.
7.Narrow size distribution of particles.
8.Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
9.The air compressor is no oil and don't pollute compress air. The power from receiving tank has a good flow. The sound is low than 60db, and following the GMP understands.
10.Supplied complete and ready for most spray drying applications.
11.Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.
12. Equipped with air filter to remove and collect fine particle s in exhausted air.
Q.Do all products have English operating interfaces and operating manuals?
Yes, all our equipment has English operation interfaces, and if necessary, we are also able to provide the edition in the user's native language, and all products are available in English operating instructions; if necessary, we can also provide the user's desired language version. In addition, there are are operating videos for our products for the convenience of customers to use.
Q. How is the after-sales service of your company?
We offer one-year quality guarantee for all the products, and for products within the warranty period, we provide free services for all damages not resulting from human beings. After the warranty expires, we will charge cost price only .
Q. How is the stability and durability of your products?
The company has been established for over 15 years, and our products have been adopted by 90 percent of colleges and universities in China. The earliest products are still used by customers at present; they are really durable. In China, before purchasing our equipment, many teachers in university will listen to the views of colleagues carefully. Pilotech's equipment is reputed for its good performance and stability, and numerous new customers are recommended by old customers.
Q. As for the overseas market, what kind of policy does Pilotech have on dealers?
Pilotech welcomes dealers worldwide to sell our products, and we will provide dealers with strong technical support and competitive prices. Pilotech hopes to grow and develop together with distributors from different countries.
