Stonex S5II / S990A GNSS RTK Receiver Cheap GPS Survey Instrument
US $1,645.00-1,695.00 / set
1 set(s)Minimum order
warranty:
1 year
customized support:
OEM, ODM, OBM
place of origin:
Guangdong, China
brand name:
Stonex
Product name:
S990A GNSS Receiver Stonex
Channel:
800
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$1,695.00-1,745.00
1 set (MOQ)
$1,050.00-1,200.00
1 set (MOQ)
$1,215.00-1,260.00
1 set (MOQ)
$1,485.00-1,550.00
1 set (MOQ)
$1,215.00-1,260.00
1 set (MOQ)
$1,645.00-1,695.00
1 set (MOQ)
$500.00-550.00
1 set (MOQ) Contact us
Quik Detail
| warranty | 1 year |
|---|---|
| customized support | OEM, ODM, OBM |
| place of origin | Guangdong, China |
| brand name | Stonex |
| Product name | S990A GNSS Receiver Stonex |
| Channel | 800 |
| Brand | Stonex |
| Model | S5II |
| Dimensions (W x H) | 151mm * 94.5mm |
| Weight | 1.4KG |
| Operating Language | English |
| Supports | WIFI |
| Working time | 10h |
| waterproof/dustproof | IP67 |
Product Detail

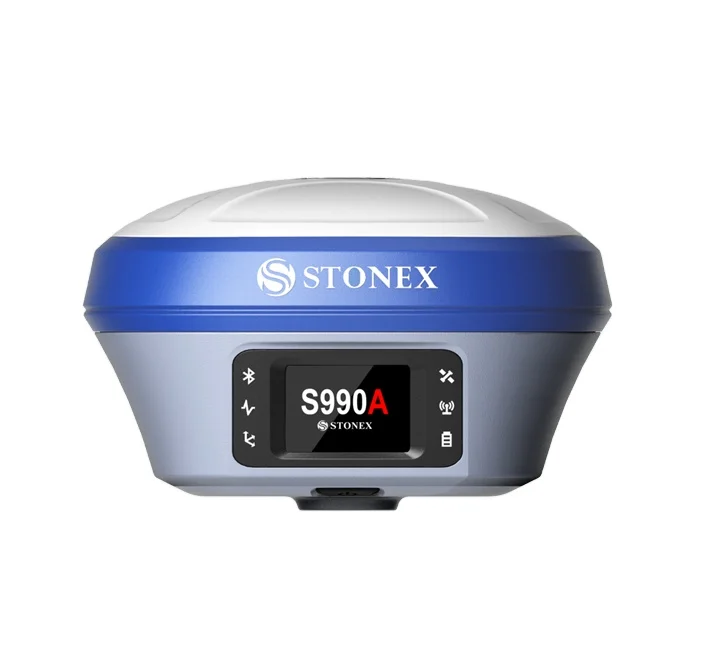

Stonex S5II / S990A GNSS RTK Receiver Cheap GPS Survey Instrument
Stonex S990A is a 800 Channels GNSS receiver characterized by a new feature that enhance the performances of field surveys.
The new IMU System allows tilted measurement (TILT) up to 60°: quick initialization, fast and precise survey.
S990A Receiver is equipped with all important connectivity capabilities: Bluetooth, Wi-Fi, UHF radio and 4G modem. The internal battery of 10.200mAh allows to work for 9 hours and can be recharged via a type-c connector.
The color touch display and the WebUI are an easy and fast way to have the complete control of the receiver.
Thanks to aRTK function and Atlas® correction service, Stonex S990A is also able to work in particularly difficult areas. Atlas® delivers world wide centimeter level correction data through L-band communication satellites.
1PPS can be applied to scenarios that require precise synchronization time to ensure that multiple facilities work together or that use the same parameters for system integration based on precise time.
The new IMU System allows tilted measurement (TILT) up to 60°: quick initialization, fast and precise survey.
S990A Receiver is equipped with all important connectivity capabilities: Bluetooth, Wi-Fi, UHF radio and 4G modem. The internal battery of 10.200mAh allows to work for 9 hours and can be recharged via a type-c connector.
The color touch display and the WebUI are an easy and fast way to have the complete control of the receiver.
Thanks to aRTK function and Atlas® correction service, Stonex S990A is also able to work in particularly difficult areas. Atlas® delivers world wide centimeter level correction data through L-band communication satellites.
1PPS can be applied to scenarios that require precise synchronization time to ensure that multiple facilities work together or that use the same parameters for system integration based on precise time.
• Fast initialization
• Up to 60° inclination
• 2 cm accuracy 30°
• 5 cm accuracy 60°
• Fast and precise survey
Stonex S990A with IMU system makes reliable every measurement, both survey and the stake out jobs, and makes extremely faster the acquisition of points: up to 40% of the field work time can be saved!
Specification
S5II / S990a | ||
Signal Tracking | GPS: LI C/A, L1C, LIP, L2C, L2P, L5 | |
GLONASS: LI C/A, LIP, L2 C/A, L2P, L3 | ||
BEIDOU: Bl, B2, B3, ACEBOC | ||
Signal Tracking | GALILEO: El, E5a, E5b, ALTBOC, E6 | |
QZSS: LI C/A, L1C, L2C, L5, L6 | ||
IRNSS: L5 | ||
SBAS: LI, L5 | ||
L-Band | Atlas H10 / H30 / Basic (optional) | |
Bridging of RTK outages | aRTK - Works up to 20 minutes | |
Channels | 800 | |
Position Rate | 10 Hz (optional 20-50Hz) | |
Signal Reacquisition | < Is | |
RTK Signal Initialization | 2 to 4 seconds | |
Hot Start | Typically < 15 s | |
Initialization Reliability | > 99.9 % | |
Internal Memory | 32 GB | |
Tilt sensor | E-Bubble IMU | |
POSITIONING1 | ||
STATIC SURVEYING | ||
High Precision Static Horizontal | 2.5 mm + 0.1 ppm RMS | |
High Precision Static Vertical | 3.5 mm + 0.4 ppm RMS | |
Static and Fast Static Horizontal | 3 mm + 0.5 ppm RMS | |
Static and Fast Static Vertical | 5 mm + 0.5 ppm RMS | |
CODE DIFFERENTIAL POSITIONING | ||
Horizontal | 0.25 m + 1 ppm RMS | |
Vertical | 0.50 m + 1 ppm RMS | |
SBAS POSITIONING | ||
Accuracy | 0.60 m RMS | |
REALTIME KINEMATIC (< 30 Km) - NETWORK RTK | ||
Fixed RTK Horizontal | 5 mm + 0.5 ppm RMS | |
Fixed RTK Vertical | 5 mm + 0.5 ppm RMS | |
INTEGRATED GNSS ANTENNA | ||
High accuracy four constellation antenna, zero phase center, with internal multipath suppressive board | ||
INTERNAL RADIO (optional) | ||
Type | Tx - Rx (1 watt) | |
Frequency Range | 410 - 470 MHz 902.4 - 928 MHz | |
Channel Spacing | 12.5 KHz/25 KHz | |
Range | 3-4 Km in urban environment Up to 10 Km with optimal conditions4 | |
INTERNAL MODEM | ||
Band | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 Nano SIM card | |
COMMUNICATION | ||
I/O Connectors | 5 pins Lemo, connect the external power supply and external radio Type-C, for receiver power supply and data transfer 1PPS port | |
Bluetooth | 2.1 +EDR, V4.1 | |
Wi-Fi | 802.11 b/g/n | |
WebUI | To upgrade the software, manage the status and settings, data download, etc. via Smartphone, tablet or other electronic device with Wi-Fi capability | |
Reference outputs | RTCM 2.3, 3.0, 3.2 CMR, CMR+, DGPS | |
Navigation outputs | NMEA0183 | |
POWER SUPPLY | ||
Battery | Internal rechargeable 7.2 V - 10.200 mAh | |
Voltage | 9 to 28 V DC external power input with over-voltage protection (5 pins Lemo) | |
Working Time | Up to 10 hours | |
Charge Time | Typically 4 hours | |
PHYSICAL SPECIFICATION | ||
Dimensions | cp 151 mm x 94.5 mm | |
Weight | 1.40 Kg | |
Operating Temperature | -40°C to 65°C (-40°F to 149°F) | |
Storage Temperature | -40°C to 80°C (-40°F to 176°F) | |
Waterproof/Dustproof | IP67 | |
MIL-STD | MIL-STD-810H | |
Shock Resistance | Designed to enduretoa 2 m pole drop on concrete floor with no damage | |
Vibration | Vibration resistant | |
