Super-wool Ceramic Wool Blanket Roll Insulation 1260 Ceramic Fiber Factory Price for Refractory Applications
Other recommendations for your business
Contact us
Quik Detail
| Grade | HP (High Pure) |
|---|---|
| Application | Liners Of Industrial Furnace |
| Thickness | 10-50mm |
| Width | 610/1220mm |
| Length | 3600/7200/14640mm |
| Chemical Composition | AL2O3+SIO2 |
| Ultimate Strength (≥ MPa) | 0.08-0.12MPa |
| Working Temperature | 1100C/1260C/1360C/1430C |
| Fiber Diameter | 2-5um |
| Shrinkage (1800 ℉, 3h) | 3%(24 Hours) |
| Thermal Conductivity | 0.055-0.180(W.k.m.) |
| Density (kg/m³ ) | 128 |
| Model Number | COM, ST, HP, HA, Zir-Alu, HZ |
| Brand Name | SSJD |
| Place of Origin | Henan, China |
| Product | Ceramic Fiber Blanket |
| Function | Refractory & Insulation & Fireproof & Acoustic |
| Raw Materials | Spuned Ceramic Fiber Bulk |
| Density | 96/128/160 Kg/M3 (6/8/10 Lb/FT3) |
| Category | Ceramic Fiber |
| Certificate | CE&ISO&TUV |
Product Detail

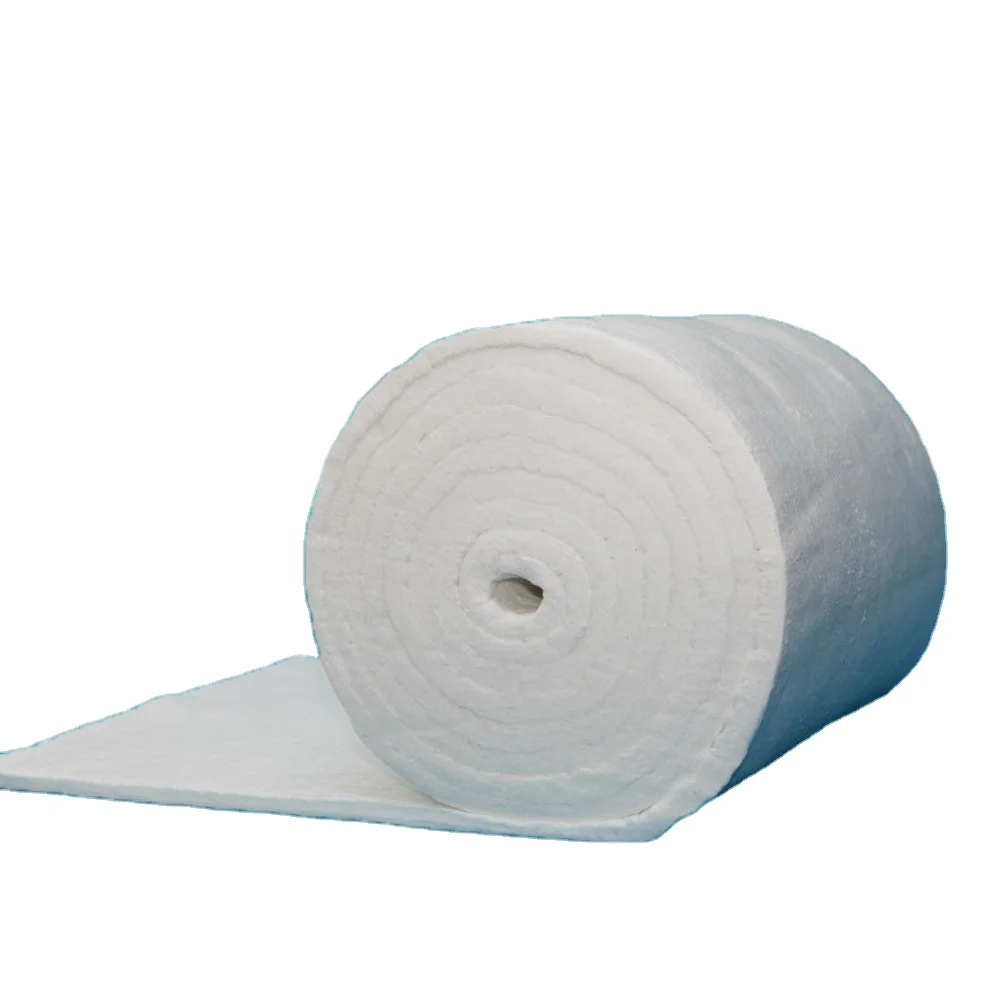

Ceramic Fiber Blanket Introduction:
Density: 96/128/160 kg/m³(6/8/10 lb/ft³)
Raw materials: Spuned Ceramic Fiber Bulk
Thickness: 10-50mm
Asbestos: 100% Non Asbestos
Function: Refractory & Insulation & Fireproof & Acoustic
SSJD ceramic fiber blanket has excellent specialties of low thermal conductivity, good heat stability, thermal shock resistance and tensile strength, good thermal insulation, fire proof and noise reduction. It is widely used in power generation, iron and steel, aluminum/n-ferrous metals, glass, ceramics, aerospace, super alloys, petrochemical, semiconductors, cement, automotive, domestic appliances etc. Temperature level is 1100-1430℃ (2012℉--2600℉).
Ceramic Fiber Blanket Technical Data:
| Type | COM | ST | HP | HA | Zir-Alu | HZ | |
| Classified Temp. | 1100℃ (2012℉) |
1260℃ (2300℉) |
1260℃ (2300℉) |
1360℃ (2480℉) |
1400℃ (2550℉) |
1430℃ (2606℉) |
|
| Working Temp. | <1000 ℃ (1832℉) |
1050℃ (1922℉) |
1100℃ (2012℉) |
1200℃ (2192℉) |
1200℃ (2192℉) |
1350℃ (2462℉) |
|
| Color | white | white | white | white | white | white | |
| Density(kg/m3) | 96/128 (6/8 lb/ft3) |
96/128 (6/8 lb/ft3) |
96/128 (6/8 lb/ft3) |
128/160 (8/10 lb/ft3) |
128/160 (8/10 lb/ft3) |
128/160 (8/10 lb/ft3) |
|
|
Linear Shrinkage(%) (24 hrs, density 128 kg/m³) |
-4 (1000℃/ 2012℉) |
-3 (1000℃/1832℉) |
-3 (1100℃/2012℉) |
-3 (1250℃/2282℉) |
-3 (1200℃/2192℉) |
-3 (1350℃/2462℉) |
|
|
Thermal conductivity (W/M.K) ( 8 lb/ft3) |
0.09 (400℃/752℉) 0.16 (800℃/1472℉) |
0.09( 400℃/752℉) 0.16 (800℃/1472℉) |
0.09 (400℃/ 752℉) 0.16 (800℃/ 1472℉) 0.20 (1000℃/1832℉) |
0.12 (600℃/ 1112℉) 0.20 (1000℃/1832℉) |
0.132 (600℃/1112℉) 0.22 (1000℃/1832℉) |
0.16 (600℃/ 1112℉) 0.20 (1000℃/1832℉) |
|
| Tensile Strength(Mpa) (Density 128kg/m³) |
0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | |
| Chemical(%) | Al2O3 | 44 | 46 | 47-49 | 52-55 | 45-46 | 39-40 |
| Al2O3+SiO2 | 96 | 97 | 99 | 99 | - | - | |
|
Al2O3+SiO2 +ZrO2 |
- | - | - | - | 99 | ||
| ZrO2 | - | - | - | - | 5-7 | 15-17 | |
| Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Size(mm) | 7200/3600*610/1220/10-50mm or customized as your specification 24′/12′ * 24"/48" * 0.4"/2" |
||||||
Ceramic Fiber Blanket Application:
1. Linings and back-up insulation for all types of furnaces, heaters and kilns
2. External insulation such as boiler, turbine, duct and piping, precision casting shell etc
3. Vehicles and domestic appliance insulation
4. High temperature sealing material such as ladle lid, duct connecting part etc
5. Noncombustible materials for building
6. High temperature gas filtration material, high temperature part sound absorbing material
7. Pressure and cryogenic vessel fire protection
8. Furnace repairs
Ceramic Fiber Blanket Features:
1. Low thermal conductivity, low heat storage
2. Good heat and chemical stability
3. Thermal shock resistance
4. Tensile strength
5. Good thermal insulation
6. Noise reduction
7. Fire proof
Notice: Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
