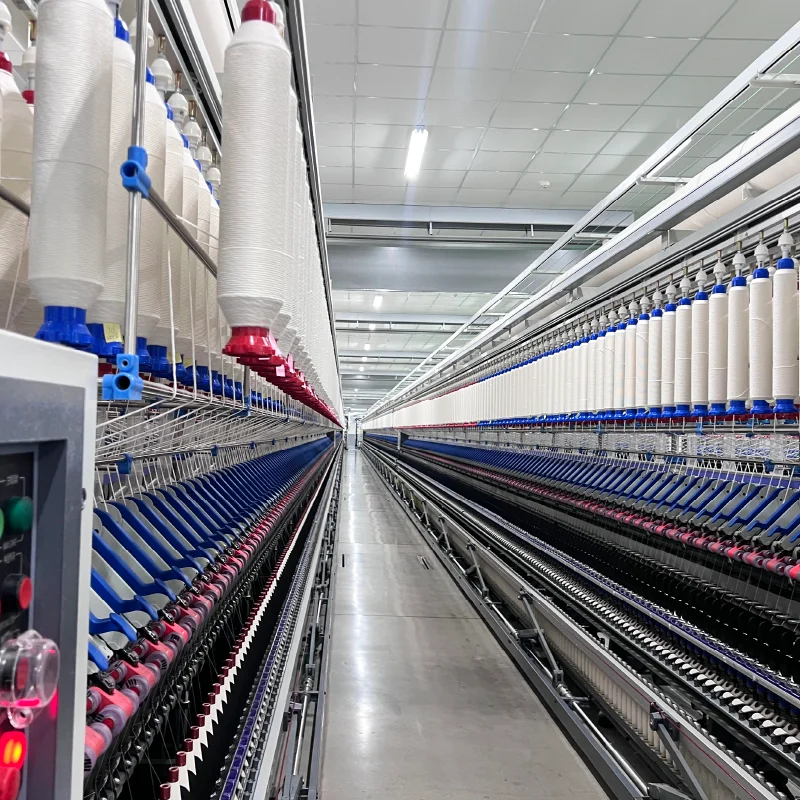

TONGDA FA1569 Textile Cotton Yarn Thread Making Machines Production Line Ring Spinning Frame Machine Price
US $45,000.00 / set
1 set(s)Minimum order
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC, Engine, Bearing, Gearbox, motor, Gear
production capacity:
99.9%
place of origin:
Shandong, China
brand name:
TONGDA
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$18,000.00
1 set (MOQ)
$125,000.00-180,000.00
1 set (MOQ)
$12,000.00
1 set (MOQ)
$12,000.00-16,000.00
1 set (MOQ)
$16,000.00
1 set (MOQ)
$8,900.00
1 set (MOQ) Contact us
Quik Detail
| video outgoing-inspection | Provided |
|---|---|
| machinery test report | Provided |
| core components | PLC, Engine, Bearing, Gearbox, motor, Gear |
| production capacity | 99.9% |
| place of origin | Shandong, China |
| brand name | TONGDA |
| Spinning Method | Ring Spinning |
| automatic | Yes |
| dimension(l*w*h) | 20300 x1150 x 2315mm |
| Power(W) | 25KW |
| Warranty | 1 Year |
| Spindle gauge | 70 |
| Yarn Count | 6-120Ne |
| Spinning Equipment | yarn making machine |
| After Warranty Service | Online support |
| Auto-doffing duration | 3 minutes |
| Suitable for fiber length | less than 40mm,40-51mm.51-60mm |
| Twist direction | Z with single tension disc,Z and S with dual tension disc |
| Spindle speed r/min | 12000-25000(mechanical speed with inverter |
| Drafting type | 3-line roller,cradle apron(short)plus bottom apron(long).top weighting |
| Service | Customized OEM |
| Applicable Industries | Manufacturing Plant |
| Showroom Location | Indonesia, Pakistan, India, Bangladesh, Uzbekistan |
| Warranty of core components | 1 Year |
| Condition | New |
| Type | Ring spinning frame |
| Marketing Type | Hot Product |
| Application | Spinning yarn |
| Weight | 9000 KG |
Product Detail
Main Technical Parameters
Spindle gauge | 70 |
Spindle number | from 612-1824.expanded by unit 36 spindles each |
Roller | Ф27XФ27XФ27orФ27XФ30XФ27 box length 6 spindles |
Lift | 160,180(with aluminum spindle) |
Ring diameter mm | 38,40,42,45(PG type) |
Suitable for fiber length | less than 40mm,40-51mm.51-60mm |
Suitable for yarn density Tex(Ne) | 36.4-4.86(16-120) |
Suitable for Twist(turns per meter) | 230-3000(Wharf diameter 19) |
Twist direction | Z with singletension disc,Z and S with dual tension disc |
Draft | Total draft 10-60(standard),total draft10-80(optional) |
Spindle speed r/min | 12000-25000(mechanical speed with inverter) driving by disc |
Spinning driving | driving by disc |
Drafting type | 3-lineroller,cradle apron(short)plus bottom apron (long). top weighting |
Lifting type of ring plate | arm by electronic lifting |
Twisting type | by electronic twisting |
Doffing type | Auto-doffing |
Bobbin lifting rate when doffing | >99.5% |
Tube inserting rate | 100% |
None-endbreak rate when auto-doffing finished | ≥97%(for medium count yarn) |
Auto-dofing duration | 3 minutes |
