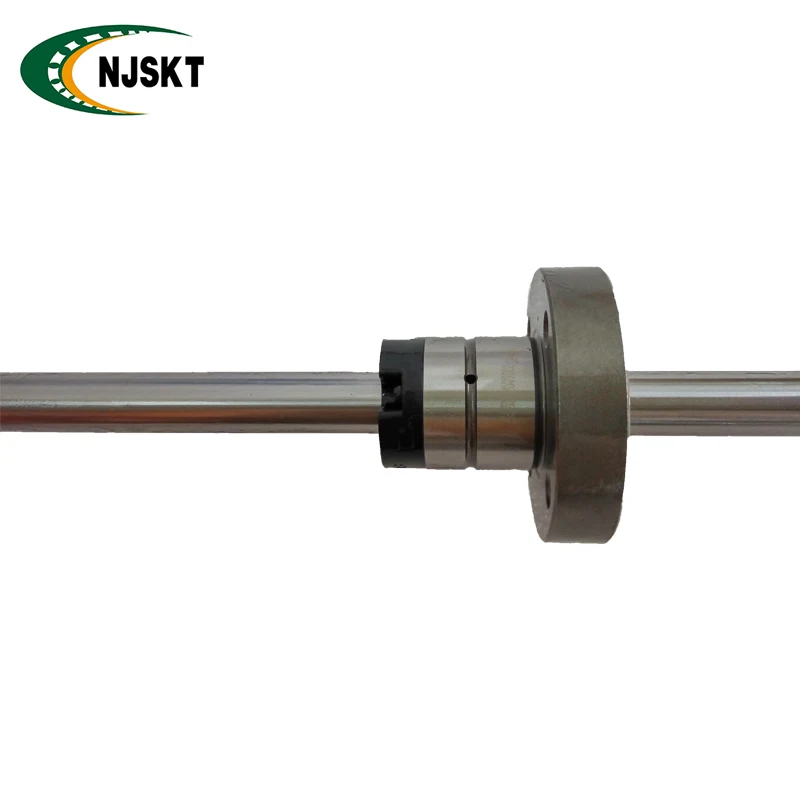

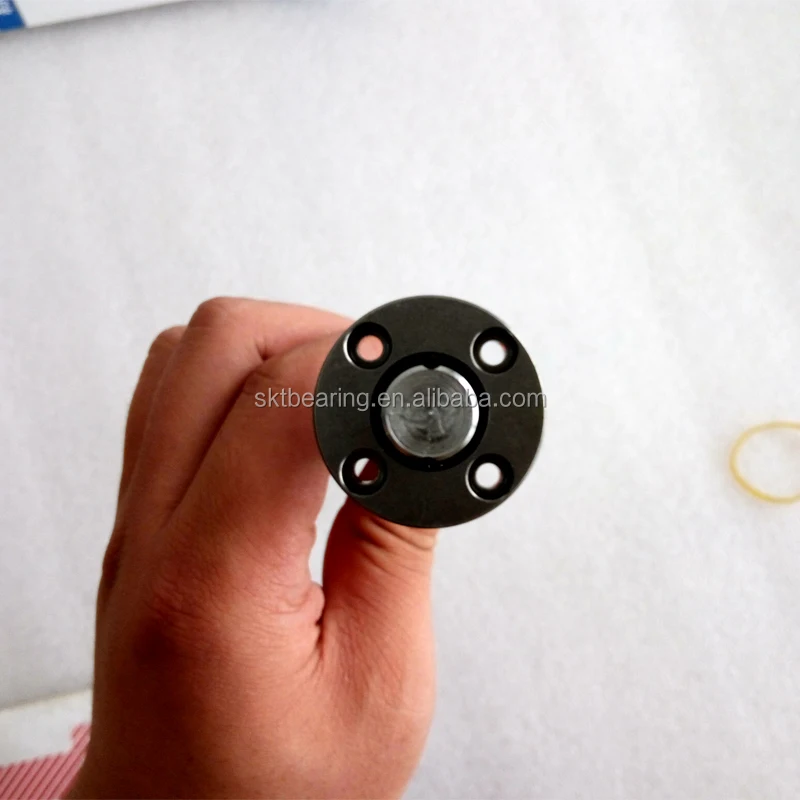

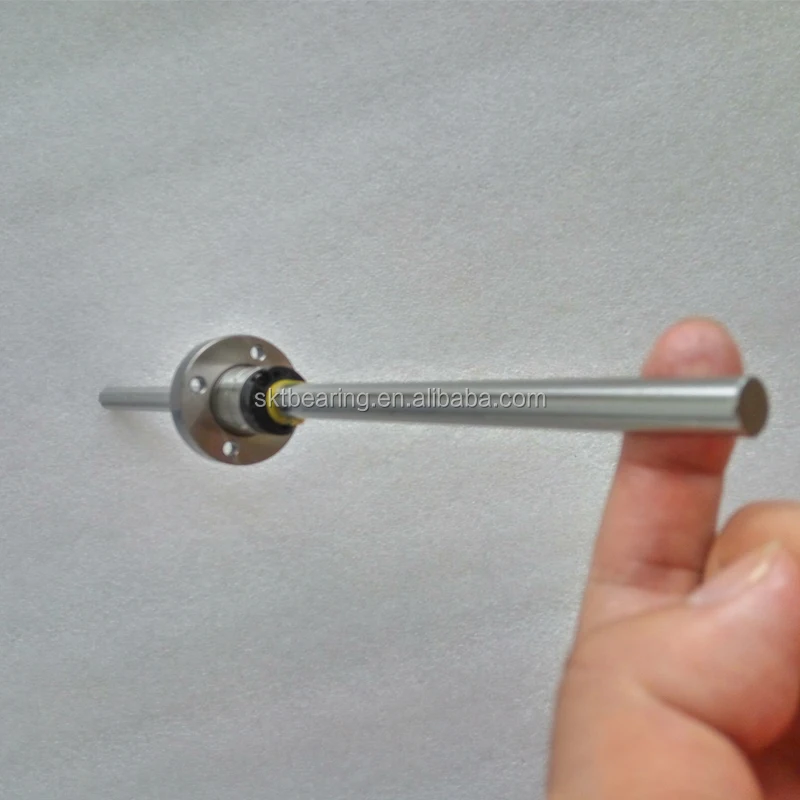

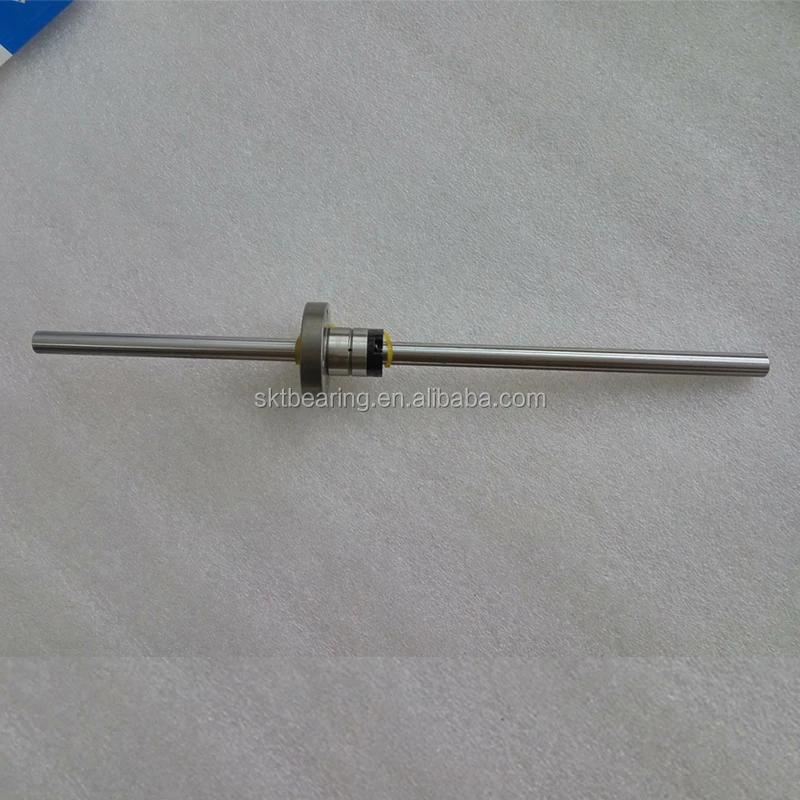

Top Quality China TaiWan TBI Ball Spline 6mm Hollow Solid Spline Shaft SLT006
Other recommendations for your business
Contact us
Quik Detail
| warranty | 1.5 years |
|---|---|
| weight (kg) | 1 |
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| core components | PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump |
| structure | Spline |
| material | Chrome Steel |
| coatings | NICKEL |
| torque capacity | 3600N |
| model number | SLT006 Ball Spline |
| place of origin | Taiwan, China |
| brand name | TBI |
| Product Name | Spline Shaft SLT006 |
| Model Number | SLT006 |
| Nut Type | SLT |
| OEM Service | Accept |
| Brand Name | TBI |
| Material | Steel |
| Preload | P0, P1. P2 |
| Spline Shaft Type | Hollow or Solid |
| Quality Standard | ISO9001 |
| Place of Origin | CHINA TAIWAN |
Product Detail
The Design of TBI Ball Spline is to utilize the friction force through the contact of steel balls within in the Spline Nut and the grooves on the Spline Shaft. With TBI MOTION’s unique 40° angular contact design which enables the Ball spline delivers highsensitivity and extreme high load carrying capacity. The concept is optimal for the application involve with high speed, vibrates, impacts of loading and precise positioning requirements. Also when the Ball spline is used to function as linear bushing, the Ball
spline provides ten times loading capacity than the linear bushing in the like dimensioned but with a compact profile. Namely, Durability and reliablility is the reason for choosing TBI Ball spline in your application.
Feature:
* High Load-Carrying Capacity
* Zero Angular clerance/backlash
* High Sensitivity
* High Rigidity
* EZY Mount on Design
Product Name | Top Quality China TaiWan TBI Ball Spline 6mm Hollow Solid Spline Shaft SLT006 |
Bearing Number | SLT006 |
Brand | NJSKT or OEM |
Material | Gcr15, Gcr15SiMn, Chrome steel, Carbon steel |
MOQ | 1 piece ball nut and 1pcs Spline Shaft |
Precision | P0, P4, P5, P6 |
Lubrication | Grease,Oil |
Quality Standard | ISO9001:2008 |
High quality
Trapezoidal Lead Screw
High quality
Ball Splines
High quality
Linear Guides
Our factory was found in May 2008, registered trademark for NJSKT. We are a professional manufacturer of Bearings.
In 2010 year, we passed ISO 9001 Quality management system sertificate. The main products of our factory are Machinery Bearings, Angular Contact Ball Bearings. Our factory can provide all standard bearings and we can also customize non-standard bearings according to our customers. Customized Bearing means that we can make them Track Roller Bearings, Needle Bearings, Cam Follower, we also produce Tapered Roller Bearings, Automobile Hub Bearings, Agricultural according customer's dimensions and construction, Then hang customer's own tags and package them according to request of customers.
Factory
Workshop
Warehouse
Team
Payment Ways
1. You can choose any payment way on the right.
2. Please remember to contact us about your right address, so that we can arrange the delivery as soon as possible.
Shipment Ways
1. For small orders,we will send them by express, such as UPS、DHL、FEDEX、 DHL or EMS with Tracking number.
2. For large quantity, we will ship them by air or by sea.
3. If you have your own courier account or forwarder, then please tell us in advance.
Favorable Comment
1. We are a professional manufacturer and we can supply you all kinds of technical support.
2. We have strict quality control processes and we supply high quality bearings with fair price.
3. We can manufacture any bearings according to the drawings and samples of our customers.
Packing Details : 1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the customers' requirement
Delivery Details : 5~7 Working Days
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
