UL List PIR Infrared Motion Sensor Switch Detector Switch
Other recommendations for your business
Contact us
Quik Detail
| Network | no |
|---|---|
| Place of Origin | Jiangsu, China |
| Brand Name | BAREP |
| Model Number | BAG-001 motion sensor switch |
| Max. Current | 15A |
| Max. Voltage | 125V |
| Mechanical Life | 40000 Times |
| Product name | UL list Infrared motion sensor switch detector switch |
| Color | White |
| Material | PC and Cu |
| Certificate | UL listed E511637 |
| Time delay | 5s-5mins |
| Function | Manual and auto |
| Keyword | motion sensor switch |
| Working environment | indoor use only |
| Specification | single pole |
| Package | color Box with wall plate |
| Customized support | package |
Product Detail
1.Voltage:120V, Frequency: 60Hz.
Technical data:
Voltage:120V
Tungsten: 1000Watt
Ballast: 1000 VA
Electronic Ballast/LED:5A
Motor Load:1/4 HP
Time delay:5secs to 5mins
Indoor use ONLY
Tools Needed Insulated Screwdriver, Wire Strippers
DESCRIPTION AND OPERATION

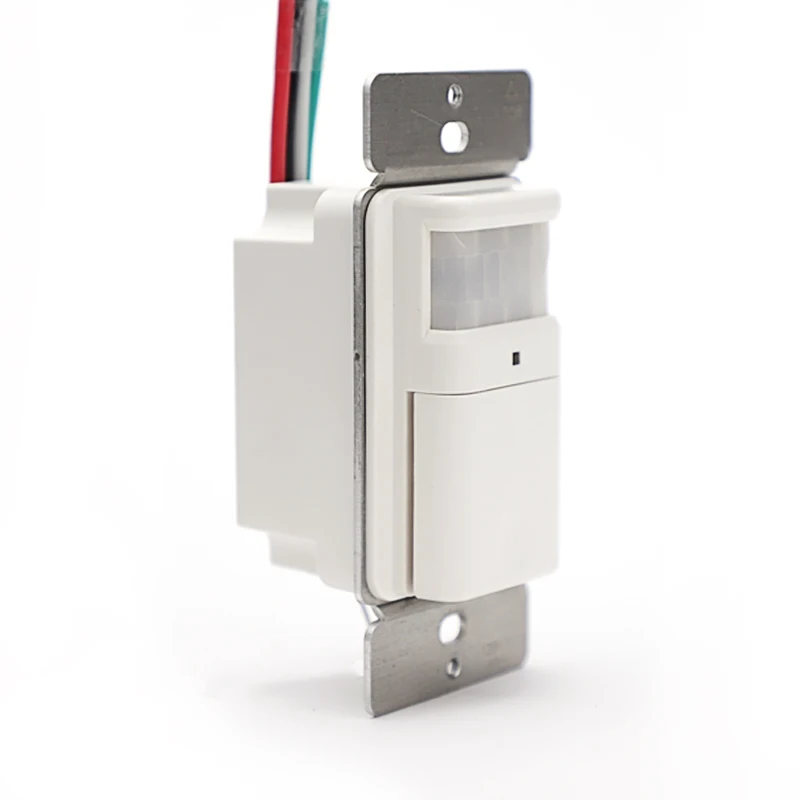

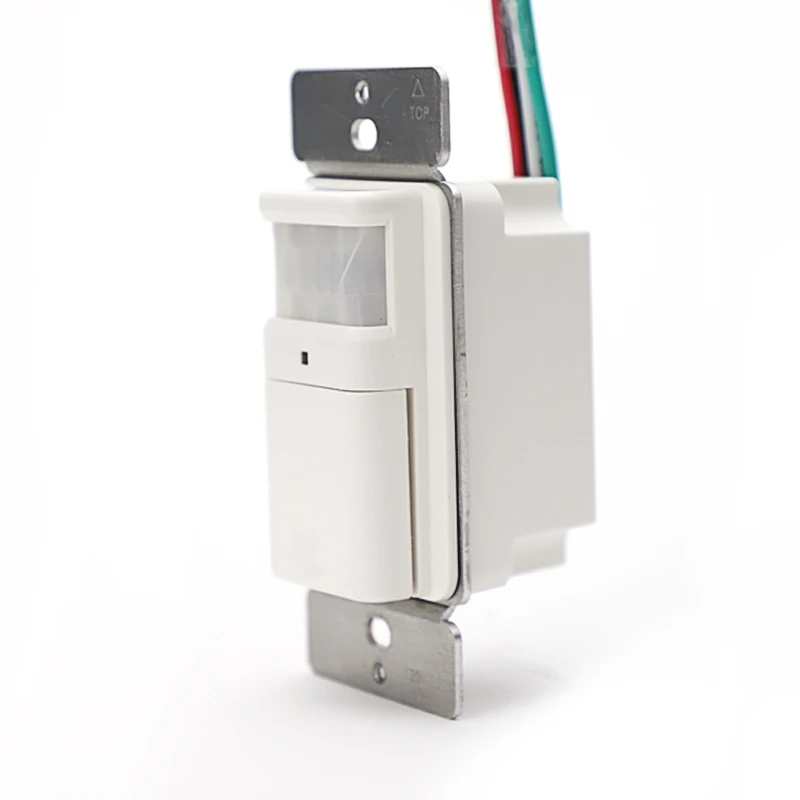

The BAG-0O1 Infrared Motion Sensor switch Detector Switch is designed to replace a standard light or fan switch. This device candefect motion from a heat-emitting source( such as a person entering a room ) within its field-of-views and automatically turn lights ON and OFF. The controlled lights will remain on until no motion is detected and time delay has expired. It is ideal for private offices, conference rooms, break rooms,lounges and any room which would benefit from automatic light control. It is suitable for indoor use only.
* Two operation Modes
Auto Mode
The BAG-001 works normally 15S after it is turned ON.
Manual Mode
The BAG-001 turns light ON and OFF by Push Button.
Time Delay
The time delay can be selected by the user during set up.
It can be adjusted from 5secs to 5Mins.
Coverage Area
The BAG 001 has a maximum coverage range of 180 degrees. The sensor must havs clear and unobstructed view of the coverage area.
Objects blocking the sensor’ s lens may prevent detection thereby causing the light to tum off even though someone is in the area.
1.Sensor Sensitivity Range Knob
The sensitivity adjustment is in the left and marked "SENS". Max sensitivity while
turning it clockwise will increase it.
2.Ambient Light Level Knob
This light level is in the middle and marked" LUX" used to defect if other light source such as sunlight, are enough to illuminate
the space without turning on the lights, if use of Ambient light level is desired, please turn the adjustment knob counter
clockwise.If use of the light level is not desired, please leave it on the maximum setting(+). This will allow the sensor to turn
the light on and off regardless of ambient light conditions
3.Time Delay Knob
Turn the adjustment on the left"- fully counterclockwise to the minimum setting ( 5Secs )while full clockwise to the maximum
setting( 5Mins).
Guarantee:Customer’s interestes can be full guaranteedEvery defective product or quality problem(besides the damage during transporation can be replace in the next order)
Packing Details:
1pcs motion sensor switch(with wall plate) in one color box, 10 boxes in one inner and 10 inners one carton. Size:49*38*27 G.W: 15KG
Delivery Details:
5-10 days if the goods are in stock, or 15-20 days if the goods are not in stock, it is according to quantity.
Barep Electrical Technology CO., LTd. is located in Tangqiao Town, Zhangjiagang City, Jiangsu Province, near Shanghai. Barep research and development, production and sales as a whole, specializes in manufacture high reliability, widely used Ground-Fault Circult Interrupter (GFCI) Receptacle outlets, dimmer switches,wall plates, junction boxes and other electrical wiring devices, technical indicators in line with the United States, Canada and Mexico electrical specifications.
All pruducts in Barep are made in CULUS certification, the company has ISO9001:2008 certification, products are widely used in the living room, kitchen, bathroom and various powertools, generators, are exported to North America, South America and Europe and other regions.
Q: Are you trading company or manufacturer ? A: We are motion sensor switch manufacturer. Our factory is located in Jiangsu Province,warmly welcome to visit our factory. | ||||||
Q:What certification do you have? A: Our company has ISO9001:2008 certification and all of our products have CULUS certification. | ||||||
Q: How long is your delivery time? A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. | ||||||
Q: How to do if I get the goods not I want? A: Please no hurry, you can contact us at the first time.We will give you a good reply. | ||||||
Q:Do you accept OEM or ODM? A:Yes.of course. Any logo can be printed on the product. | ||||||
