Wall Mounted IP67 Analog 4~20mA Flowmeter DN50-700 Digital RS485 Clamp on Ultrasonic Water Liquid Flow Meter
Other recommendations for your business
Ultrasonic Level Transmitter Digital Ultrasonic Level Gauge Measurement Ultrasonic Water Level Meter
Contact us
Quik Detail
| warranty | 18 months |
|---|---|
| customized support | OEM, ODM |
| place of origin | Henan, China |
| brand name | Junyuan |
| model number | JY-TUF2000B |
| accuracy | ±1% |
| type | Variable Area Water Flowmeters, Variable Area Oil Flowmeters, Ultrasonic meters, Ultrasonic flow meters, Other, Digital |
| material | ABS |
| Accuracy | 1% |
| Protection level | IP67,Sensor:IP68 |
| Measured pipe caliber | DN15-DN6000 |
| Liquid temperature | -30℃---+160℃ |
| Flow rate range | 0---±10m/s |
| Medium | Water ,Sea water,beer,Sewage,oil ects |
| Power supply | DC8-36V, or AC85-264V |
| Output | 4-20Ma |
| Communication | RS485 ,Moubus |
| Certification | CE,ISO9001 |
Product Detail

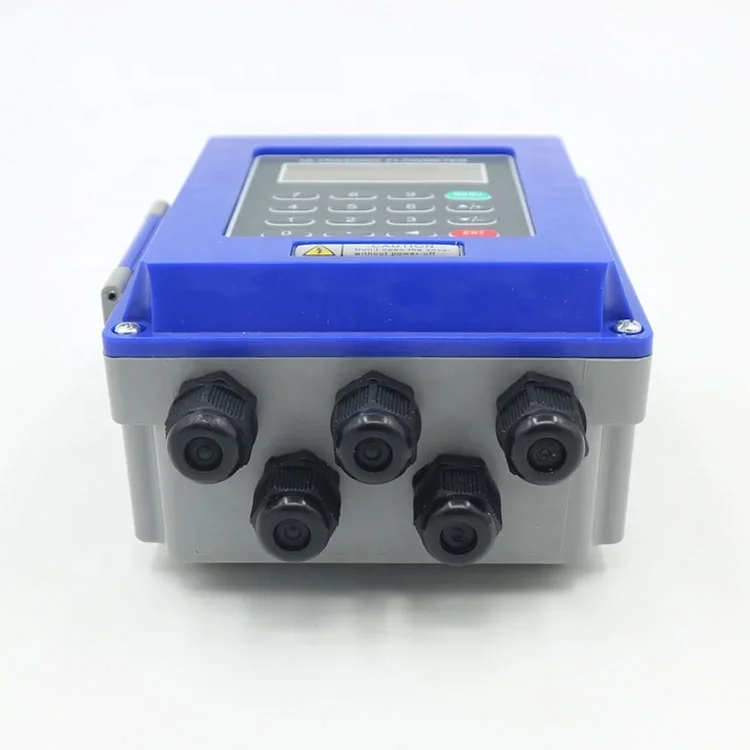

TUF-2000B ULTRASONIC FLOW METER
Ultrasonic flowmeters measure water, seawater, industrial sewage, acid and alkali, alcohol, beer, various oils and other single homogeneous liquids that can be transmitted to ultrasonic waves.
Ultrasonic flowmeter consists of host and sensor.
Category | Performance parameters | ||||
HOST | Working principle | Ultrasonic time difference principle | |||
Accuracy | Better than 1% | ||||
Display | Can be connected to 2x10 backlit Chinese characters or 2x20 characters Western-style LCD monitors, which can support Chinese, English and Italian languages. | ||||
Signal output | 1 channel 4-20Ma current output, impedance 0-1K, accuracy 0.1% (optional) | ||||
1 channel OCT pulse output (pulse width 6-1000ms, default 200ms) | |||||
1 relay output | |||||
Signal input | 3 line 4-20Ma current input, accuracy 0.1%, can collect temperature, pressure, liquid level and other signals | ||||
Can be connected to a three-wire PT100 platinum resistor for thermal measurement | |||||
Data Interface | Isolating the RS485 serial interface, the flowmeter can be upgraded through a PC computer, and supports protocols such as MODUBUS. | ||||
Data Record | Thermal printer, external SD card, capacity up to 2G | ||||
Pipe Condition | Pipe Material | Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, etc. All dense pipes, allowing lining | |||
Pipe inner diameter | 15-6000mm | ||||
Straight pipe | The sensor installation point is best to meet: upstream 10D, downstream 5D, from the pump outlet 30D (D is the pipe diameter) | ||||
Measuring medium | Species | Water, sea water, industrial sewage, acid and alkali, alcohol, beer, various oils, etc. | |||
Turbidity | 10000ppm and Less air bubbles | ||||
Flow Rate | 0-±10m/s | ||||
Temperature | -30---+160℃ | ||||
Working Temperature | Humidity | Host:-20--+60℃,Sensor:-30---+160℃ | |||
Humidity | Host:85%RH,sensor protection level :IP67 | ||||
Power supply | DC8-36v,or AC10-30V,AC85-264V | ||||
Power consumption | 1.5W | ||||
Sensor selection
Ultrasonic flowmeters use the principle of ultrasonic time difference to measure water, seawater, sewage, alcohol, beer, various oils and other single homogeneous liquids that can conduct ultrasonic waves.
Customer use feedback picturers
Packing:The ultrasonic flowmeter packed by wooden box or cartoon box,then delieveried by air or sea.
Logistics:Usually delieveried by TNT,UPS,SF,Fed,DHL,EMS.
Payment:L/C,D/A,D/P,T/T,Western Union,MoneyGram, payments for offline orders.
Production time:After customers deposite arrived our bank,then arrange produce as soon as possible.
Henan Junyuan Automation is a high-tech enterprise specializing in the research, development and production of flow meters such as ultrasonic flowmeter and electromagnetic flowmeters ects.
The company has advanced production technology and perfect after-sales service system. The main products are: electromagnetic flowmeter, vortex flowmeter, turbine flowmeter, ultrasonic flowmeter, throttling device, rotameter, complete set of automatic instrumentation, widely used in metallurgy, water supply and drainage, electric power, mining, petroleum, chemical, papermaking , medicine, light industry, environmental protection and other industries.
Our philosophy: the pursuit of excellence, professionalism.
Our aim: to survive by quality, to win the word of mouth by service
Our Team
Our Office
1.Q: you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
2.Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you .
3.Q: What is the warranty for your product ?
A: Warranty: 2 years
