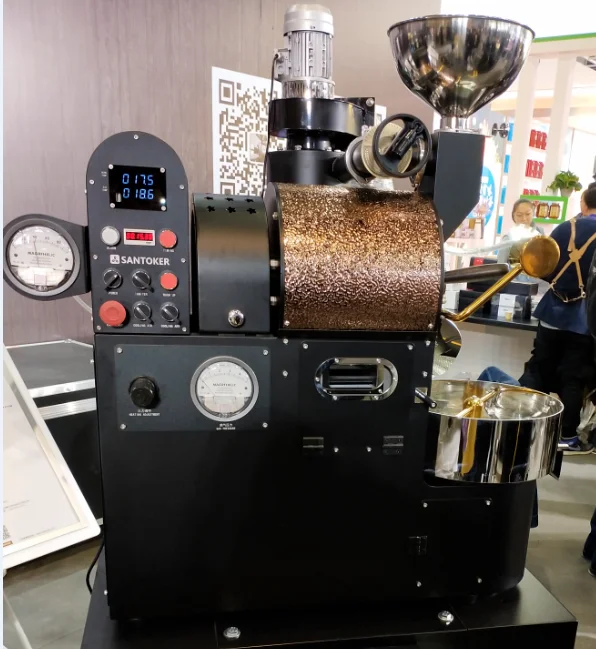

Wintop Santoker WS-3 3kg Drum Commercial Home USB Coffee Roaster Coffee Bean Roasting Machine

2 set(s)Minimum order
after-sales service provided:
Free spare parts, Onsite Installation
warranty:
1 Year
application:
Commercial, Household
power source:
Electric, Gas
app-controlled:
NO
private mold:
Yes
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

after-sales service provided

Free spare parts, Onsite Installation

warranty

1 Year

application

Commercial, Household

power source

Electric, Gas

app-controlled

NO

private mold

Yes

Housing Material

Stainless Steel

Power (W)

8000

Voltage (V)

220

place of origin

Henan, China

brand name

WINTOP

model number

WS-R3

type

Commercial, Drum Coffee Roaster

function

Heat Adjustment

material

Stainless Steel

Product name

WS-R3 3kg Double - layer inner pot Specialty Coffee Roaster machine.

Capacity

3kg/batch Maximum

Heating Source

LPG - LNG - Naturel Gas or electric

Roasting Time

10-15min/batch

Heating Mode

Half Hot Air Heating

Color

Red Black, White

Motor

4 ADDKA Motors

Temperature control

PID programmable control

Control Mode

Fully Automatic Control

Roaster Drum

Double Carbon Steel walled roaster drum

Product Detail

Product Description
Wintop Santoker R3 3kg coffee roaster with carbon steel double layer drum hot selling
WS-R3 Specialty Coffee Roaster Specifications
Model
WS-R3
Capacity
Max 3200g
Max 3200g
Heating Source
Electric
LPG-NG-Propane
Heating Mode
Direct Fire & Semi hot air heating
Voltage
Single Phase 220 V, 50/60 Hz
Power
8000 W
700 W
Motor
4
4
Roasting Time/ batch
10-15 mins
10-15 mins
Cooling Time / batch
1-2 mins
1-2 mins
Gas consumption
2 KW.h/roast
0.6 Kg/Hr
Dimensions
112*73*125cm
Weight
175 Kgs
Data Logger
Mobile phone Bluetooth & PC-USB connection
Detailed Images

Why Double-walled Drum?

Wintop WS-R3 the outer and inner layer made of carbon steel. When gas is ignited, hot air fills full in gap between the outer and inner layers, the hot air is around the inner drum, avoiding roasting beans direct touching fire, harm beans by over heat, or Inhomogeneous heat.

Smoke Exhaust System

Hot air volume adjust in precision by hand operation; The chaff cyclone connects to the coffee roaster unit simply by a hoop, the exhaust smoke pipe is parallel to ground and shortest between the chaff cyclone and main unit, that greatly improve the hot air working efficiency. Easy to clean Mainyain, Install and unistall.

Precise Thermocouples

Germany PT 100 thermocouples with Japan Fuji temperature controller to get the real time temperature of coffee beans and exhaust air inside the drum.

Sampler spoon and sight glass window help to control the roast degree easily

High Performance Burner

Santoker team work hard for developing the high performance heating burner. it is achieved gentle and evenly heating to the drum, plus the durable insulation layer around the drum, you can maximum use the heat only for beans which saves the fuel.

Vacuum Pressure Gauge
Controlling airflow is very important during roast, Normally, we control airflow is only by manual damper. But once you forget to clean up the exhaust pipe and exhaust fan motor in time, the dust and chaff may block the pipe or motor, or if you meet the bad weather (like strong wind, heavy rain etc.), you may not get exact pressure value by manual damper.
Double Walled Drum
WS-3 is released by a double-layer drum coffee roaster,the drum is made of two layers carbon steel alloy, drum total thickness is 10 mm. Carbon steel alloy has a better diathermancy than stainless steel. When it starts heating up, the hot air quickly full fill in the gap between two layers, the inner drum is surrounded by hot air, and the hot air can evenly through inner drum to beans for doing roasting to achieve gentle and evenly roast. Thanks to the drum structure design,
Gas Gauge Locking Function
WS-3 Gas gauge is more precise and the gas pressure knob can be locked. After you adjusted gas pressure value, you can push the gas pressure knob into machine to lock the operation and avoid someone else touching or misoperating it.

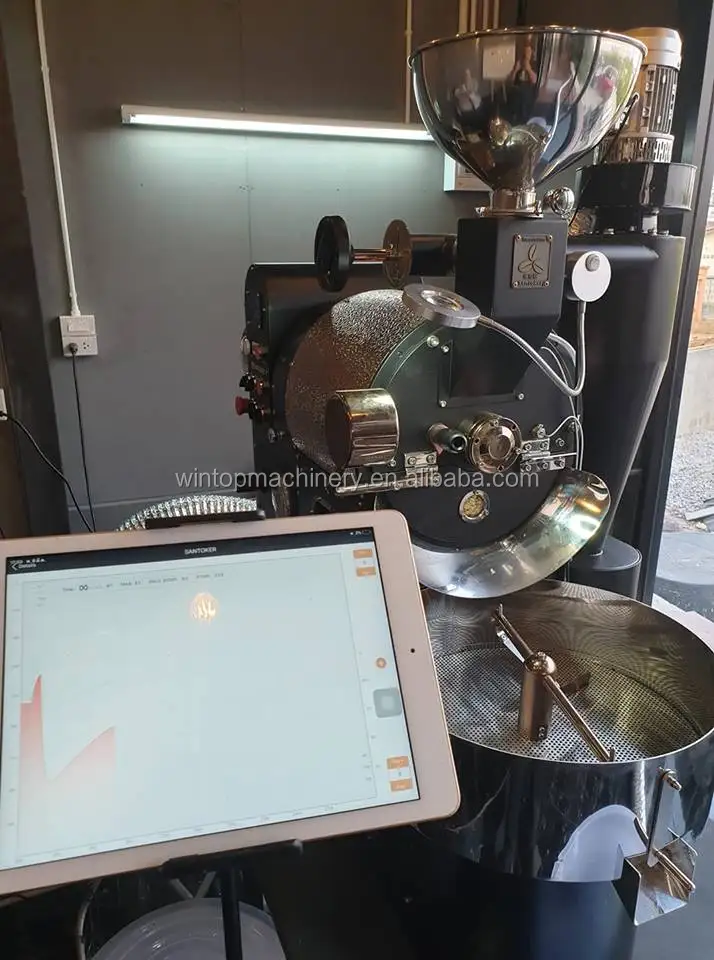

Mobile Phone Bluetooth data logger,or IPAD also can connect the Artisan,Crosper and Go ROASTER these APP .



Now you can watch and record your roasting profile details on your mobile phone. Just download“gangs of roasters” from your mobile phone APP store, then connect to WS-3 by Bluetooth to enjoy and share your own roast with friends immediately. Mobile Phone Bluetooth connection for data logger is our latest technology which is very popular in our coffee roaster
viewing window underneath the drum ,Beautiful design, more intuitive and clear observation, you can clearly see the fire burning
