Wood Log Bark Peeling Machine
US $7,500.00 / set
1 set(s)Minimum order
peeling rate:
Fresh log >95% Dry log > 90%
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Engine, Bearing, Gearbox
wood loss rate:
2%
wood length range:
depends on model
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$27,000.00
1 set (MOQ)
$26,500.00
1 set (MOQ)
Contact us
Quik Detail
| peeling rate | Fresh log >95% Dry log > 90% |
|---|---|
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| core components | Engine, Bearing, Gearbox |
| wood loss rate | 2% |
| wood length range | depends on model |
| place of origin | Shandong, China |
| brand name | Hongxin |
| voltage | Customized |
| power(w) | 7.5*2-30*2 |
| dimension(l*w*h) | 6m x 2.5m x 2m |
| warranty | 2 years |
| key selling points | High Productivity |
| weight (kg) | 23423 |
| Motor | 7.5-30KW |
Product Detail
提示信息
Subtitle/CC
Speed
Quality
Audio Track
Speed
Subtitle/CC
Audio Track
Quality

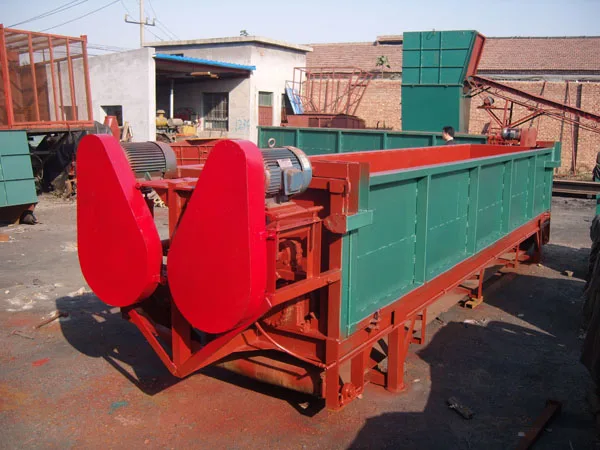

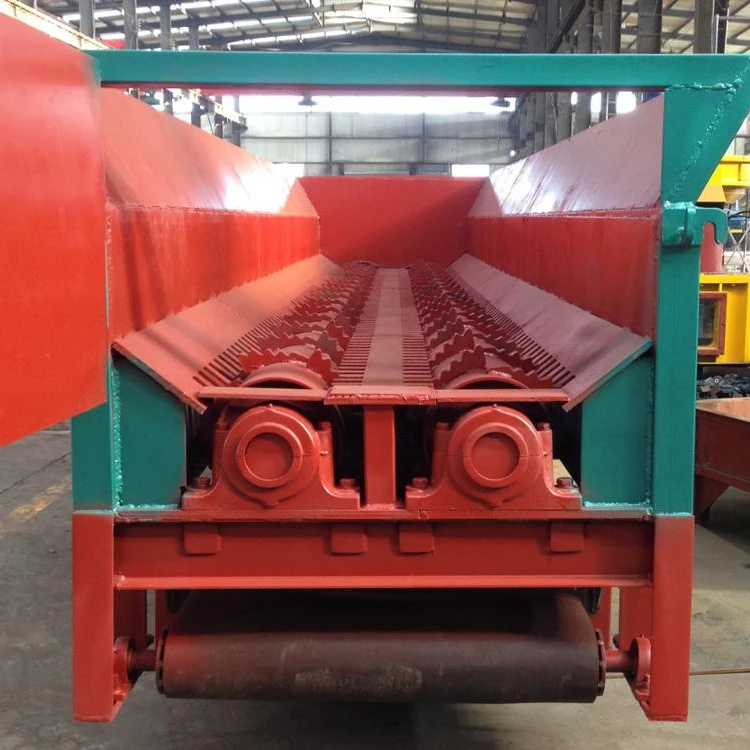

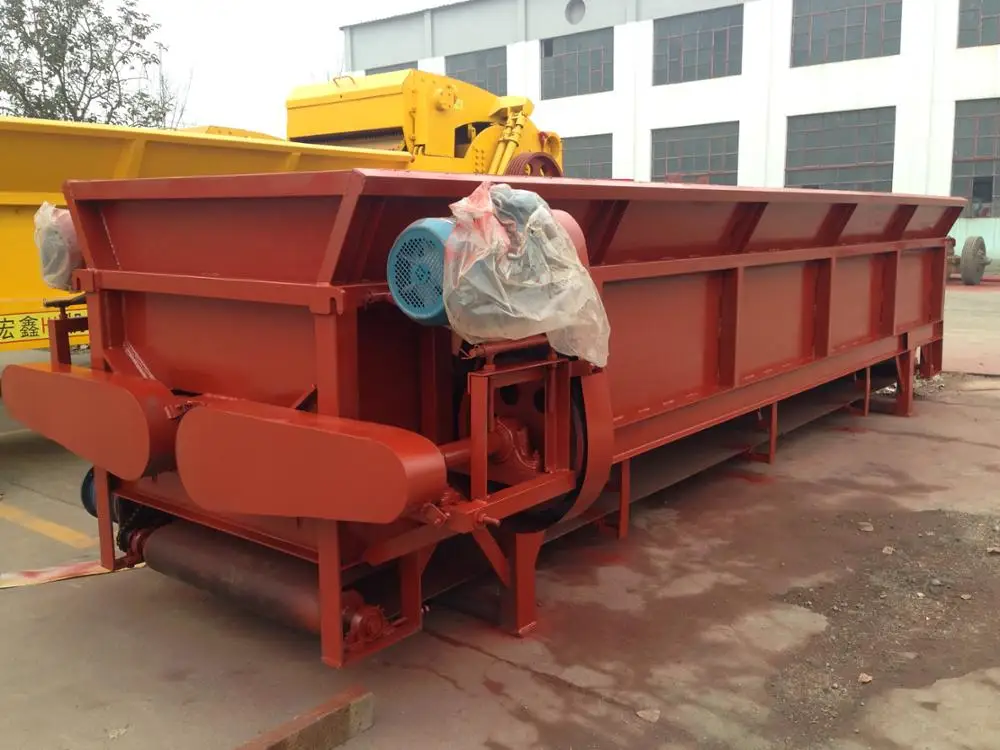

Wood debarking machine and disc chipper assembly line is widely used in paper mill to produce uniform wood chips for making paper pulp. The debarking rate is up to 95% and the output chips is uniform and elegant. It is a new type of high efficiency log debarking equipment. The rotor has ladder type debarking teeth. Its special acting force makes logs do circulatory motion, rotational motion and irregular bounce in the debarking chamber. It is featured by the following: 1) Open silo, assembly line work by feeding from one end and discharging from the other end, high work efficiency. 2) Due to strike of teeth, logs do circulatory motion and rotational motion, debarking rate is high.
3) Apply to all kinds of wood with different diameter, length and shape, even bent logs.
4) As the large main frame holds still, so low energy consumption, low failure rate, easy maintenance, low vibration and noise. It is also easy to install and operate, even can do without pedestal mounting.
Single rotor
| Model | HX630 | HX850 | HX1020 |
| Applied wood log diameter | 5cm-45cm | 15cm-55cm | 20cm-75cm |
| Capacity per hour | 15-25tons | 20-30 tons | 30-50 tons |
| Roller diameter | 630mm | 850mm | 1020mm |
| Debarking rate | >98% | >98% | >98% |
| Main motor power | 45KW | 55KW | 75KW |
| Roller length | 11m | 11m | 11m |
| Roller rotation speed | 65r/min | 61r/min | 55r/min |
| Machine size(m) | 11.5*2.2*2.63 | 11.5*2.4*2.73 | 11.5*2.65*3.3 |
