Wool Industrial Furnace Thermal Boiler Insulation Material 1430 Ceramic Fiber Aluminum Silicate Blanket
US $1.39-2.46 / roll
50 roll(s)Minimum order
Grade:
COM (Common)
Application:
Liners Of Industrial Furnace
Thickness:
6-50mm
Width:
610,1220mm
Length:
3600,7200,14400,28800mm
Chemical Composition:
SIO2+MgO+CaO
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$11.00-13.00
50 rolls (MOQ)
$7.60-11.00
100 rolls (MOQ)
$8.50-9.50
10 rolls (MOQ) Contact us
Quik Detail
| Grade | COM (Common) |
|---|---|
| Application | Liners Of Industrial Furnace |
| Thickness | 6-50mm |
| Width | 610,1220mm |
| Length | 3600,7200,14400,28800mm |
| Chemical Composition | SIO2+MgO+CaO |
| Ultimate Strength (≥ MPa) | 0.05-0.08 |
| Working Temperature | 1050-1350 |
| Fiber Diameter | 3.5 |
| Shrinkage (1800 ℉, 3h) | -2.5 |
| Thermal Conductivity | 0.09-0.32 |
| Density (kg/m³ ) | 160 |
| Model Number | 1430 |
| Brand Name | Jucos |
| Place of Origin | Shandong, China |
| Product name | Needled High Quality Ceramic Fiber Blanket |
| Keyword | Ceramic Fiber Blanket |
| Application of ceramic fiber blanket | Backing materials for industrial furnaces |
| Color | White |
| shot content | 12 |
| tensile strength | 0.05-0.06 |
| bulk density | 64-160 |
Product Detail
Description Of Products
Ceramic fiber blanket is manufactured by refractory ceramic fibers, providing effective solutions to a wide range of thermal management problems. Utilizing our proprietary high output blowing and spinning techniques, these products supply superior insulating performance, flexibility and resilience.
Features Of Product
High tensile strength
Excellent mechanical strength and structural strength
Low thermal conductivity, low shrinkage, low density
Excellent thermal capacity
Good sound absorption
Good thermal shock resistant
Applications Of Product
Annealing furnaces
Furnace door linings and seals
Soaking pit covers and seals
Furnace hot face repairs
Reheating furnace and ladle covers
Specifications Of Product
Alumina contents range from 40% to55%
Widely used throughout metallurgical industry
Physical And Chemical Indicators Of Product
Properties Brand | ST BLT | GC BLT | HA BLT | HZ BLT | PC BLT | |||||
Specification Temp. (℃) | 1260 | 1260 | 1360 | 1430 | 1600 | |||||
Working Temp. (℃) | 1050 | 1100 | 1200 | 1350 | 1500 | |||||
Bulk Density (kg/m3) | 64-160 | 64-160 | 64-160 | 64-160 | 96/128 | |||||
@24H Linear Shrinkage after Heating | -3 (1000℃) | -3 (1100℃) | -3 (1250℃) | -3 (1350℃) | -1 (1400℃) | |||||
(w/m.k) Thermal Conductivity | 0.09(400℃) 0.17(800℃) 0.32(1000℃) | 0.09(400℃) 0.17(800℃) 0.31(1000℃) | 0.09(400℃) 0.13(600℃) 0.22(1000℃) | 0.09(400℃) 0.76(600℃) 0.22(1000℃) | 0.16(600℃) 0.28(1000℃) 0.45(1400℃) | |||||
Tensile strength (MPa) | 0.05 | 0.05 | 0.06 | 0.06 | 0.08 | |||||
(%) Chemical Composition | Al2O3 | 43 | 44 | 51 | 35 | 71 | ||||
Al2O3+SiO2 | 96 | 98 | 99 | - | - | |||||
ZrO2 | - | - | - | 13-15 | - | |||||
Fe2O3 | 1.0 | 0.5 | 0.2 | 0.2 | 0.2 | |||||
Na2O+K2O | 0.5 | 0.3 | 0.2 | 0.2 | 0.2 | |||||
Size(mm) | LENGTH*WIDTH*THICKNESS 7200*610/1220*25，3600*610/1220*50，4800*610/1220*38 7200*610/1220*6，14400*610/1220*12.5，28800*610/1220*6.38 | THICKNESS 10-25 | ||||||||

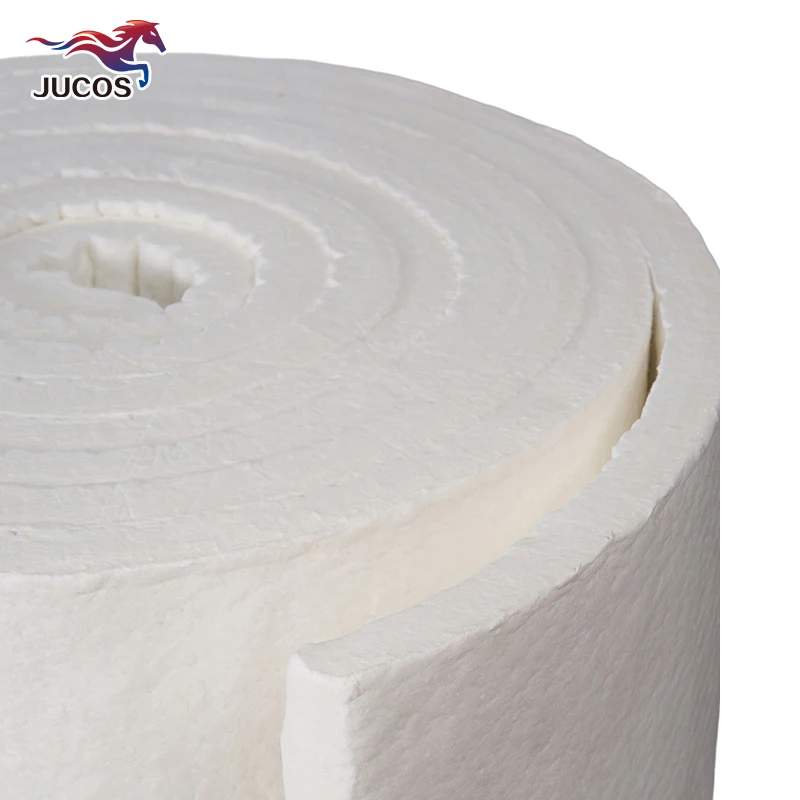

Pictures Of Product
Zibo Jucos Co Ltd is a refractory manufacturer and technology based company with combination of global expertise and local knowledge, aim to supplying range of shape and monolithic refractories products, installation and solutions to the global Steel,Foudry,Cement,Non-Ferrous,Glass,Petrochemical and Refinery etc other Industry furnace.
Jucos Refractory located in China Zibo established since the year of 2002, the place where rich in refractory raw material products,with 2 sets of tunnel kiln lines for 120,000 Mt shape refractory and 80,000 Mt of monolithic refractories for both yearly capacity, we understands the exact intelligence of the customers worldwide to design, offer, manufacture, installation and market premium quality & performance oriented refractory solutions with a team of Techno Creative Commercial Engineers. Consistent and reliable performance.
A truly global footprint. We find and invest for the best people.
