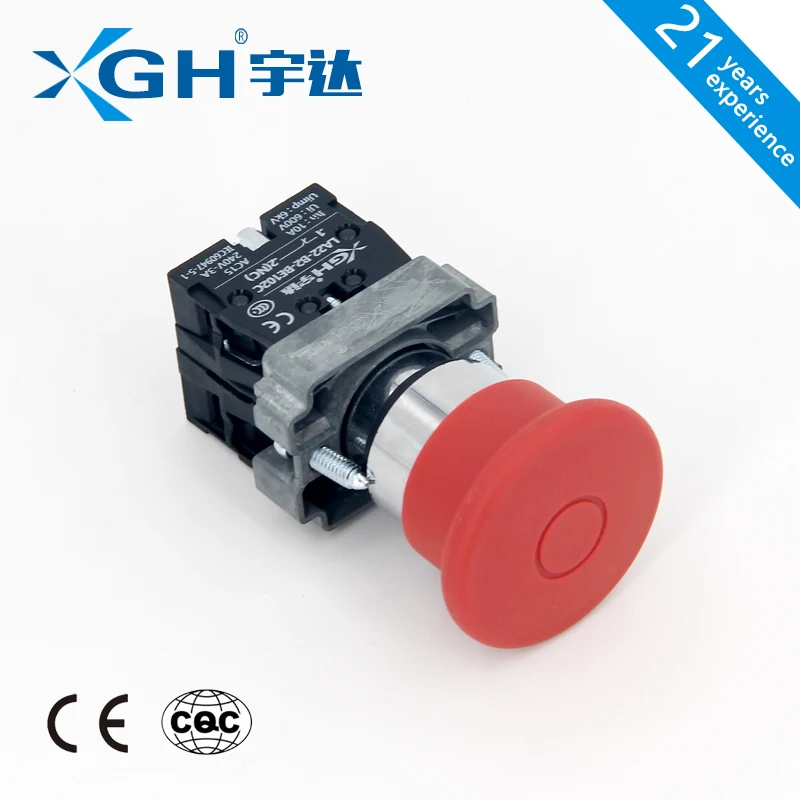

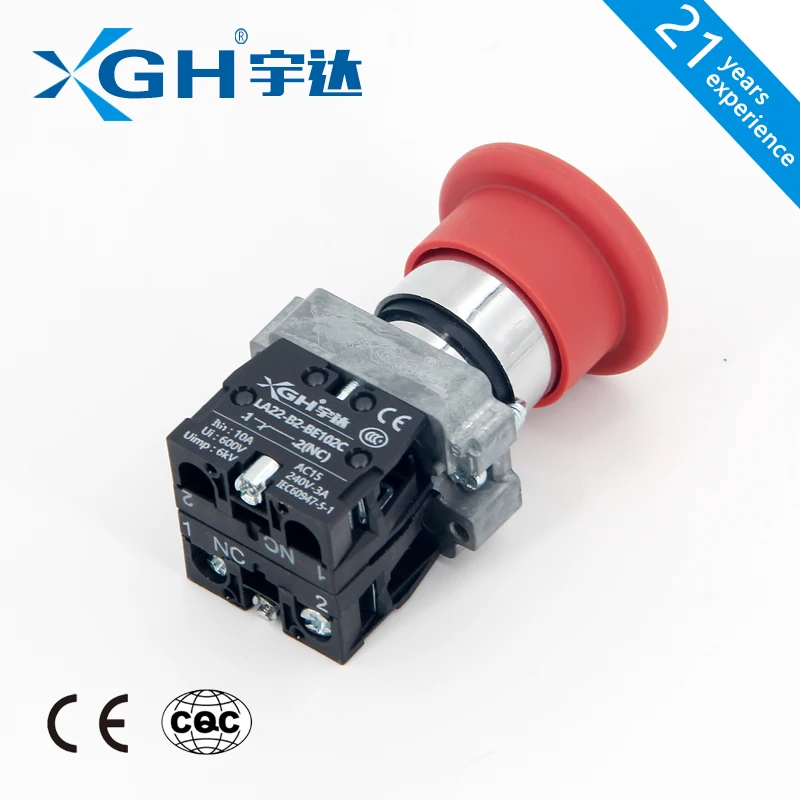

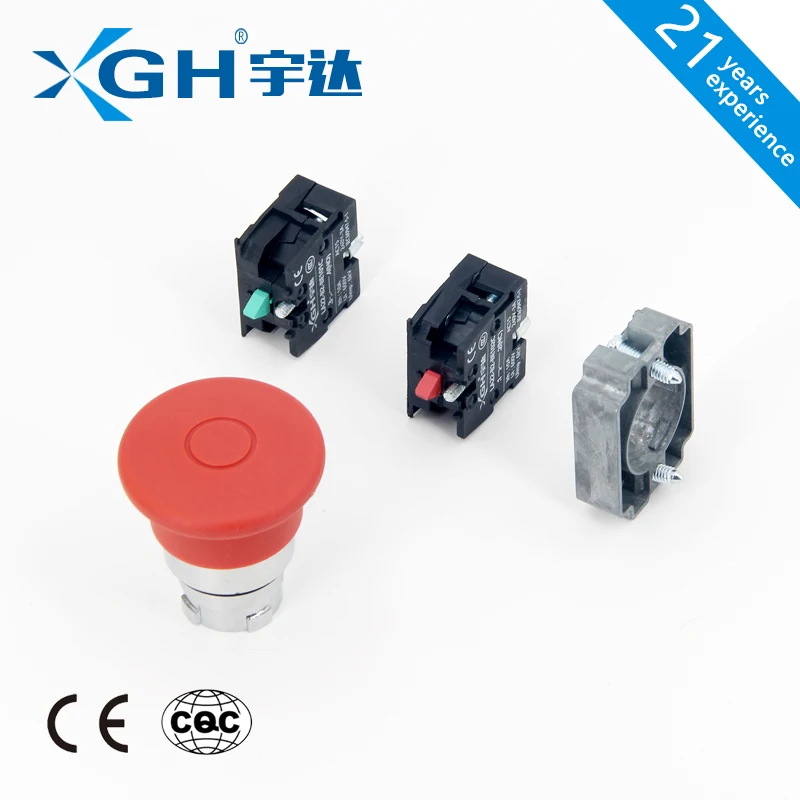

XB2-BT42 Emergency Stop Push Pull Push Button Switch
Other recommendations for your business
Contact us
Quik Detail
| Whether the smart | NO |
|---|---|
| Place of Origin | Zhejiang, China, Zhejiang, China (Mainland) |
| Brand Name | YUDA, YUDA |
| Model Number | B2-BA3311, B2-BA3341 |
| Max. Current | 10A, 10A |
| Max. Voltage | 6-440V |
| LED | Other |
| IP level | IP67 |
| Switch Combination | 1NO1NC, 1NO, 2NO |
| Contact configuration | NO+NC |
| Operating temperature | -20~+55 |
| Contact resistance | ≤50mΩ |
| Material | Plastic |
| Certificate | CCC CQC CE |
| free sample | available |
| Protection Level | IP55 |
Product Detail
LA22-B2-BT42
Mushroom head push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.
PRODUCT MODEL
TRADEMARK : XGH SIZE : 22MM
NAME : PUSH BUTTON RESET : LATCHING
TYPE : LA22-B2-BT42 WEIGHT: 150g
CONTACT MODULE : Silver point
