Y2-315L2-4 200KW 270HP 380V 400V 1500RPM Brushless Ac 3 Three Phase Induction Electric Motor 200 kw 270 hp 380 400 v Volt 50 hz Three Phase Asynchronous Motor
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | WPDJ |
| Model Number | Y2-315L2-4 200KW 1500RPM |
| Type | Asynchronous Motor |
| Frequency | 50HZ |
| Phase | Three-phase |
| Protect Feature | Drip-proof |
| AC Voltage | 380 / 400 V |
| Efficiency | IE 2 |
| Certification | CCC, ce, ISO9001-2000 |
| Motor Center Height | H315(mm) |
| Protection Degree | IP54/IP55 |
| Cooling Method | IC411 |
| Insulation Class | F Class |
| Mounting Type | IMB3 / IMB5 / IMB35 / IMV1 |
| Function | the machine tools for cutting metals, exhaust fan, compressors, etc |
| Gereral Use 01 | Ordinary industry , rolling mill machine, plastic extruding |
| Gereral Use 02 | Driving equipments, mining, metallurgy, printing, paper making, etc |
Product Detail
提示信息
Y2-315L2-4, 200KW, 380V/400V, 1500r/min, IC411, IP54/IP55, F Insulation
brushless ac 3 three phase induction electric motor
Y2 Series Cast Iron Three Phase Asynchronous Induction Motor
| Power: | 0.75kw - 315KW |
| Voltage: | 380V/400V |
| Speed: | 750RPM/1000RPM/1500RPM/3000RPM |
| Protection Degree: | IP54/IP55 |
| Cooling method: | IC411 |
| Insulation Class: | F |
| Duty: | S1 |
| Package: | Export Wooden Package |
| Payment: | 30% in advance, balance by T/T or L/C at sight |
The Y2 series motor is fully enclosed three-phase industrial standard motors with self-fan cooling system and a mouse-cage construction.
Y2 series has been designed and engineered in compliance with the latest
technical knowledge and production process,and has reached EFF1 & EFF2 efficiency
Standard.
It features it's high efficiency, energy saving, low noise, low vibration, light weight and reliability of running.
It is widely used on the mechanical equipment in common place where there are no inflammable, explosive and corrosive gases and in place with no special requirements, suchas the machine tools for cutting metals, exhaust fan, compressors, etc.
Working Condition
1. Ambient Working Temperature: Ambient temperature varying with seasons should be between 40℃ and -15℃.
2. Altitude: Not over 1000m above sea level.
3. The average relative humidity in the most moisture month is 90%. And meanwhile, the average lowest temperature should not be over 25℃.
4. Termination: Y connection below 3KW. Delta connection if over 4KW.
5. Operation Mode(duty): S1.
Mounting
Frame Size(H80-H160): IM B3, B5, B35, V1, B14, B34, V3,V5, V6, V15, etc.
Frame Size(H180-H280): IM B3, B5, B35, V1.
Frame Size(H315-H355): IM B3, B35, V1 order click here

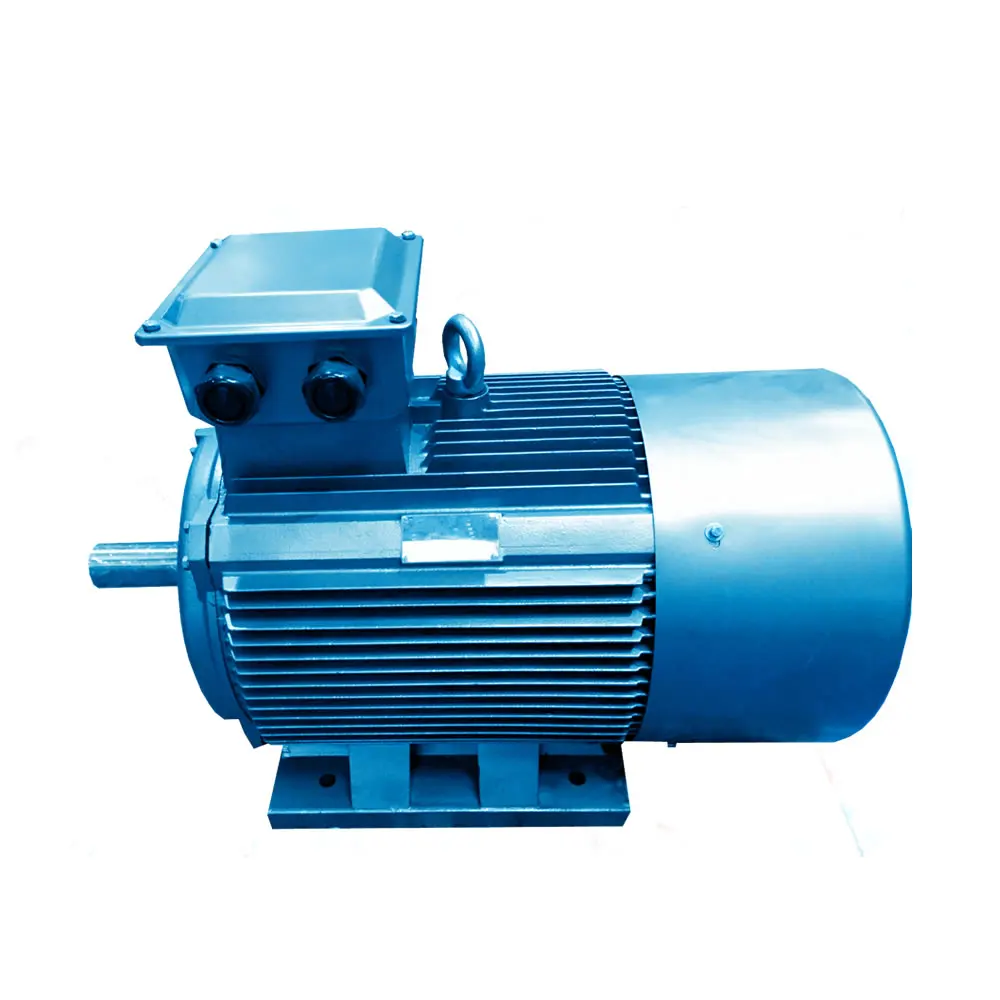

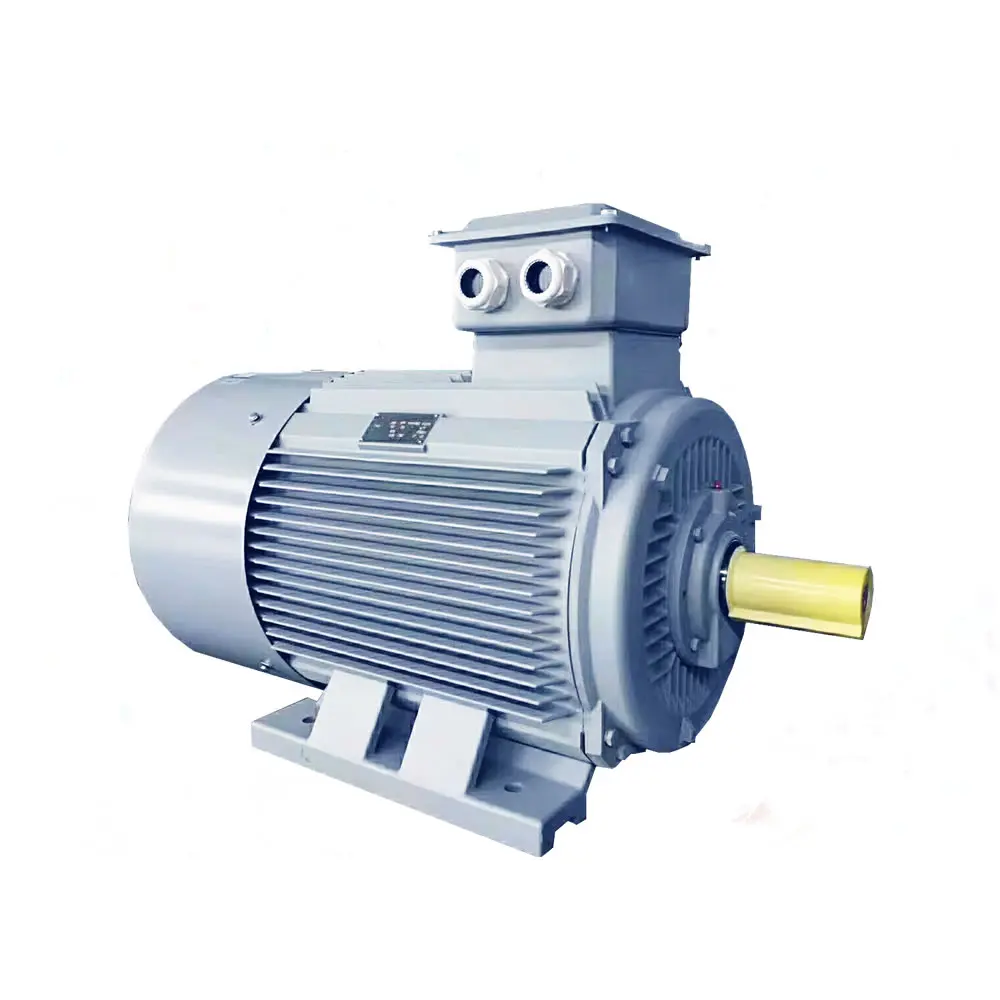

Product show
 |  |  |
