YIKA APDM 160A Low Voltage Fuse Switch Disconnector With Nh00 Size Fuses
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | YIKA |
| Model Number | APDM160 |
| Application | LOW VOLTAGE |
| Breaking Capacity | High |
| Safety Standards | IEC |
| Product name | Fuse Switch Disconnector |
| Rating Voltage | 500V |
| Rated current | 160A |
| Product type | Mini Fuse Holder |
| Frequency | 50/60HZ |
| Color | black |
| packing | carton |
| Port: | Ningbo, Shanghai |
Product Detail

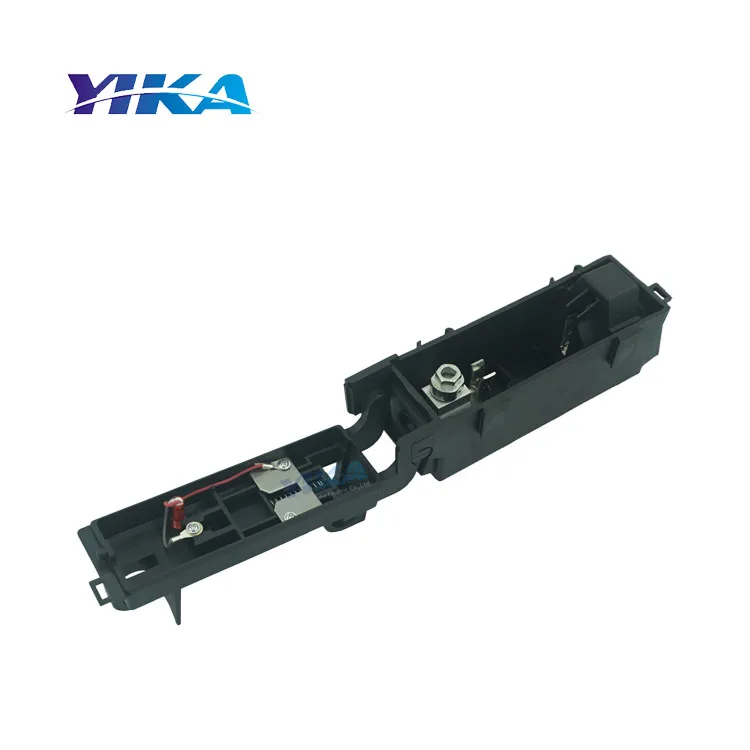

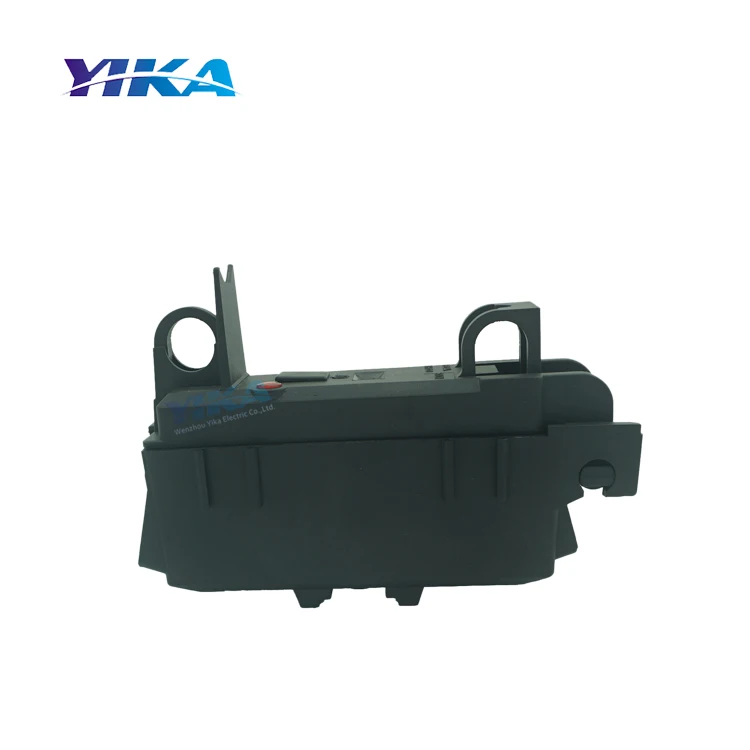

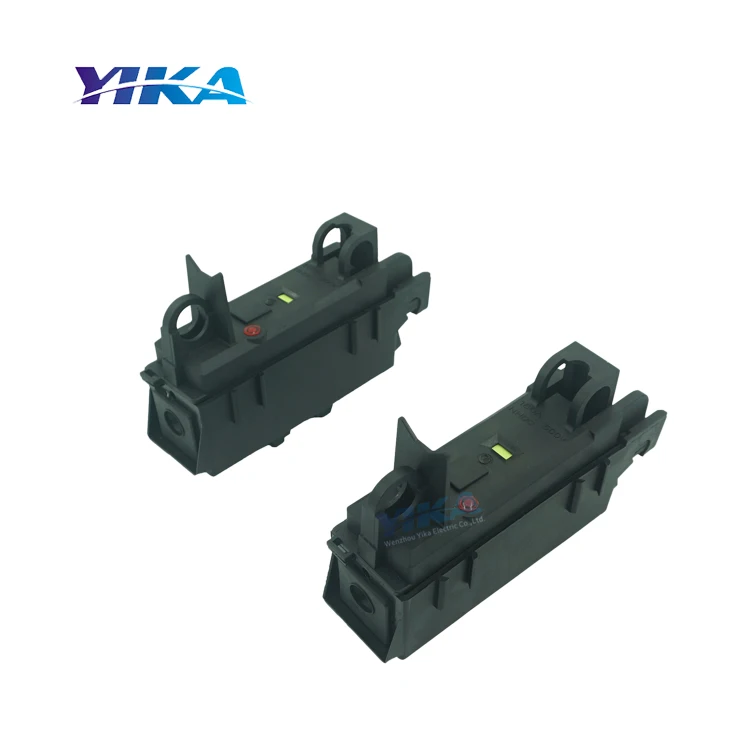

YIKA APDM 160A Low Voltage Fuse Switch Disconnector With nh00 size fuses
General Description:
The APDM160 fuse switch it is used either as an operation or protection device for low voltage line.It is designed to be used with NH 00 size fused offering a maximum of 160 Amps of line protection without blades.
In case blades are used ,the maximum switching load would be 250A. It is manu-factured in reinfored fiberglass polyamide and fulfills all the necessary requirements for outdoor installation and operation.
In the APED 160C model the connection is made with connectors suitable for aluminum and copper conductors with a section range between 16 and 95 mm2 (5-4/0 AWG).
The APDM 160 model can also be connected with terminals lugs and both models can be installed with single phase or three phase opening.
They have special sockets to obtain a compact set.
The switch is operated from the ground with an operating rod and also has an indicator to show if the fuse is placed.It can be sealed with security ties.
It also has a led to show the fusion of the fuse.
Feature:
The switch fuse 160 APDM has the following features included:
1,Internal connection
2,Operating light the fuse
3,Installed fuse indicator
4,Connection seal
5,Sealable safety

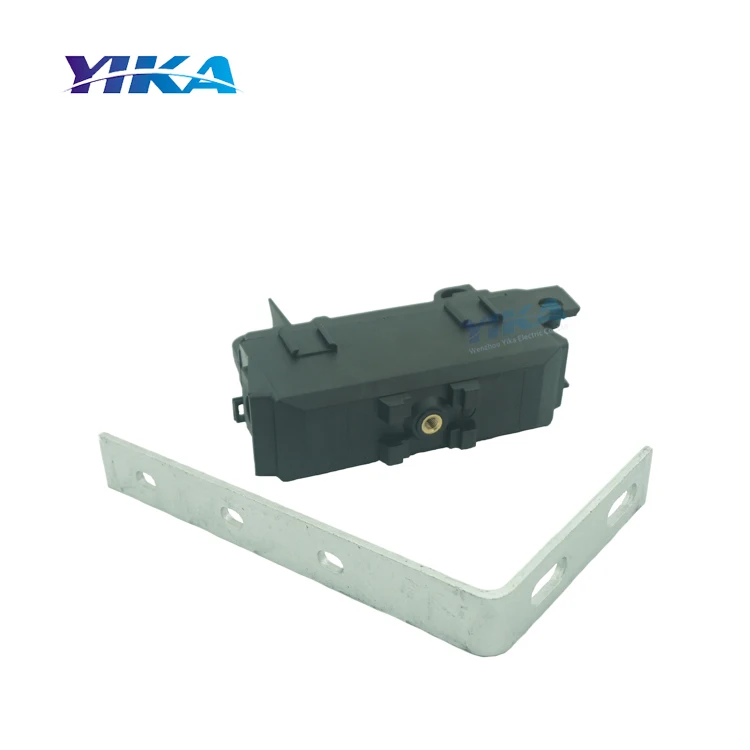

6,Inserts for mounting bipolar,tripolar,tetrapolar etc.
7,Eyelets suitable for proper and safe opening and closing operation,assembly and disassembly of the fuse cover
Technical Characteristics
|
Voltage |
500V |
|
Insulation level |
1000V |
|
Frequency |
50/60Hz |
|
Operational current with fuses |
160A |
|
Operational current with blades |
250A |
|
Installation category |
AC22 |
|
Short lasting current(1s) |
3,2KA |
|
Dynamic current(crest) |
25KA |
|
Interruption capacity |
100KA |
|
Minimum mechanical life(operation) |
1000 |
|
Weight |
600G |
|
Protection range |
IP23 |
Optionals:
APDM-1,2-160-3,4,5,6,7
1, 1-single mounting 3-tripolar mounting 4-tetrapolar mounting
2, a-single operation b-bipolar operation c-tripolar operation d-tetrapolar operation
3, C-internal connectors
4, Y-simple-simple D-simple-double
5, R-pole voul screw maneuver L-extreme cold maneuver
6, K-arc chamber
7, X-stainless steel bolts
