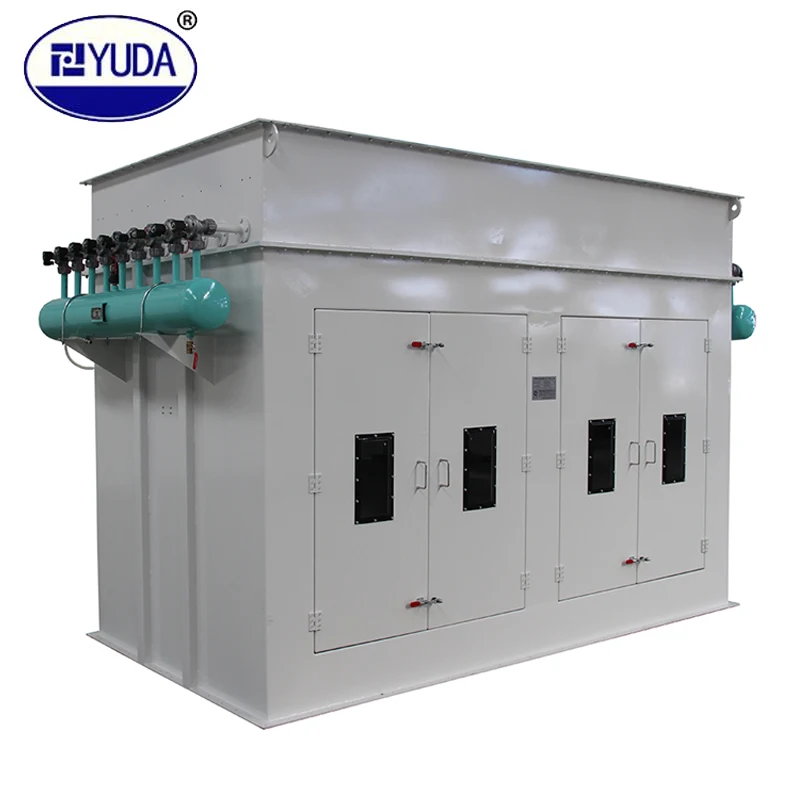

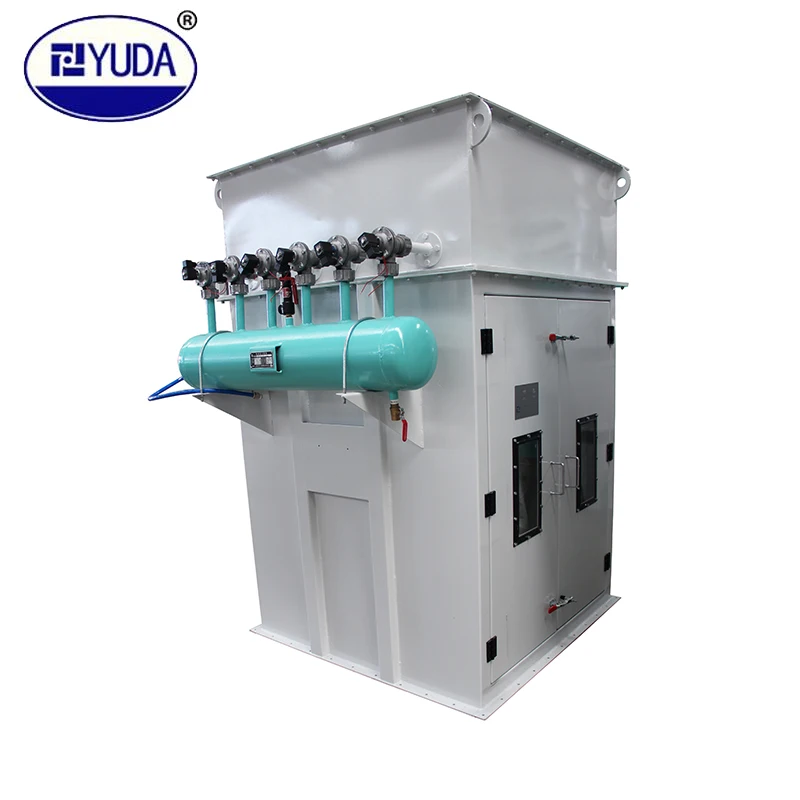

YUDA TBLMF Series Filter Dust Extractor for Wood Dust
US $1,000.00-2,000.00 / set
1 set(s)Minimum order
condition:
New
minimum particle size:
Wide
place of origin:
Jiangsu, China
brand name:
YUDA
dimension(l*w*h):
Actual
weight:
480 kg
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$1,000.00-1,500.00
1 set (MOQ)
$929.00-1,072.00
1 set (MOQ)
$800.00-1,500.00
1 set (MOQ)
$7,500.00-8,500.00
1 set (MOQ)
$9,785.00-15,000.00
1 set (MOQ)
$20,000.00-26,800.00
1 set (MOQ) Contact us
Quik Detail
| condition | New |
|---|---|
| minimum particle size | Wide |
| place of origin | Jiangsu, China |
| brand name | YUDA |
| dimension(l*w*h) | Actual |
| weight | 480 kg |
| warranty | 1 Year |
| Product name | dust extractor for wood dust |
| Feature | dust collector equipment |
| Shape | box type |
| Application | Dust Collect |
| Material | Carbon Steel/stainless steel |
| Color | Light green |
| Motor | Siemens China LTD. Motor(Beide) |
| Work stress | 0.5~0.7MPa |
| adjusting range of pulse interval | t=3S~90S, Width: t=0.01S~0.5S |
| Other Name | Dust Collector |
| Applicable Industries | Manufacturing Plant, Farms |
| Showroom Location | Egypt, Russia, South Korea, Australia |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Warranty of core components | 1 Year |
| Core Components | Engine, Bearing, Gearbox, motor |
| Marketing Type | New Product 2024 |
Product Detail
Product parameter
Model | Bag Qty. | Filter area | Weight (kg) | ||||
1m (m²) | 1.5m (m²) | 2m (m²) | |||||
TBLMF4 | 4 | 1.6 | 2.5 | 3.3 | 200 | ||
TBLMF6 | 6 | 2.5 | 3.7 | 5 | 240 | ||
TBLMF9 | 9 | 3.7 | 5.5 | 7.4 | 300 | ||
TBLMF12 | 12 | 5 | 7.3 | 9.9 | 380 | ||
TBLMF15 | 15 | 6.2 | 9.2 | 12.3 | 430 | ||
TBLMF18 | 18 | 7.4 | 11 | 14.8 | 480 | ||
TBLMF21 | 21 | 8.6 | 12.8 | 17.2 | 515 | ||
TBLMF24 | 24 | 9.9 | 14.7 | 19.7 | 600 | ||
TBLMF28 | 28 | 11.5 | 17.1 | 23 | 695 | ||
TBLMF32 | 32 | 13.1 | 19.6 | 26.1 | 720 | ||
TBLMF36 | 36 | 14.8 | 22 | 29.6 | 750 | ||
TBLMF40 | 40 | 16.3 | 24.5 | 32.7 | 820 | ||
TBLMF42 | 42 | 17.1 | 25.7 | 34.3 | 888 | ||
TBLMF48 | 48 | 19.7 | 29.3 | 39.4 | 900 | ||
TBLMF56 | 56 | 23 | 34.2 | 46 | 982 | ||
TBLMF64 | 64 | 26.1 | 39.2 | 52.2 | 1100 | ||
TBLMF72 | 72 | 29.4 | 44.1 | 58.8 | 1300 | ||
TBLMF104 | 104 | 42.5 | 63.7 | 84.9 | 1500 | ||
Product details
TBLMf series cylinder pulse dust jet filter:
1, This machine adopts in food, feed industry in standalone or suction dust and dust in the pneumatic conveying, also apply to other industries as a dust recycling, filter dust, etc.
2, The special circular air bag with straight solenoid valve reduce the damage of the solenoid valve diaphragm, stable and
reliable work.
3, The new practical patent technology, original structure, compact process.
4, The foreign party inside the circle, original and high efficient dust removal equipment, flexible process layout, cover a little area.
5, High dust removal efficiency (99.9% or higher)
6, Filter bag can be according to user needs to choose super fine, heat resistance, moisture resistance, antistatic, etc.
7, Work stress: 0.5~0.7MPa, the adjusting range of pulse interval: t=3S~90S, Width: t=0.01S~0.5S, Filtering wind speed: 2-4 m/min.
Filter bag:
1. Prevent condensation type, mill suction;
2. Common type, ordinary dust removal;
3. High intensive, Trace elements feeding
1, This machine adopts in food, feed industry in standalone or suction dust and dust in the pneumatic conveying, also apply to other industries as a dust recycling, filter dust, etc.
2, The special circular air bag with straight solenoid valve reduce the damage of the solenoid valve diaphragm, stable and
reliable work.
3, The new practical patent technology, original structure, compact process.
4, The foreign party inside the circle, original and high efficient dust removal equipment, flexible process layout, cover a little area.
5, High dust removal efficiency (99.9% or higher)
6, Filter bag can be according to user needs to choose super fine, heat resistance, moisture resistance, antistatic, etc.
7, Work stress: 0.5~0.7MPa, the adjusting range of pulse interval: t=3S~90S, Width: t=0.01S~0.5S, Filtering wind speed: 2-4 m/min.
Filter bag:
1. Prevent condensation type, mill suction;
2. Common type, ordinary dust removal;
3. High intensive, Trace elements feeding
