1/2" 3/4" 1" Brass Water Flow Sensor Flowmeter 1.75MPa DC3.5~24V NPN DN15 DN20 DN25 Hall Turbine Flow Switch Sensor
1 piece(s)Minimum order
application:
General
port size:
1/2" 3/4" 1"
warranty:
1 year
place of origin:
Guangdong, China
model number:
YF
power:
Electric
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$47.00
1 piece (MOQ)
Contact us
Quik Detail
| application | General |
|---|---|
| port size | 1/2" 3/4" 1" |
| warranty | 1 year |
| place of origin | Guangdong, China |
| model number | YF |
| power | Electric |
| temperature of media | Normal Temperature |
| type | water flow sensor |
| brand name | Acarps |
| structure | water flow sensor |
| media | Water |
| customized support | OEM, ODM, OBM |
| Output Signal | NPN |
| Working voltage range | DC3.5~24V |
| Medium temperature | ≤120℃ |
| Water pressure resistance | ≤1.75MPa |
| Output pulse high level | >DC 4.5 V (input voltage DC 5V) |
| Output pulse low level | |
| Insulation resistance | >100MΩ |
Product Detail
提示信息
Subtitle/CC
Speed
Quality
Audio Track
Speed
Subtitle/CC
Audio Track
Quality
Product Description
About this item

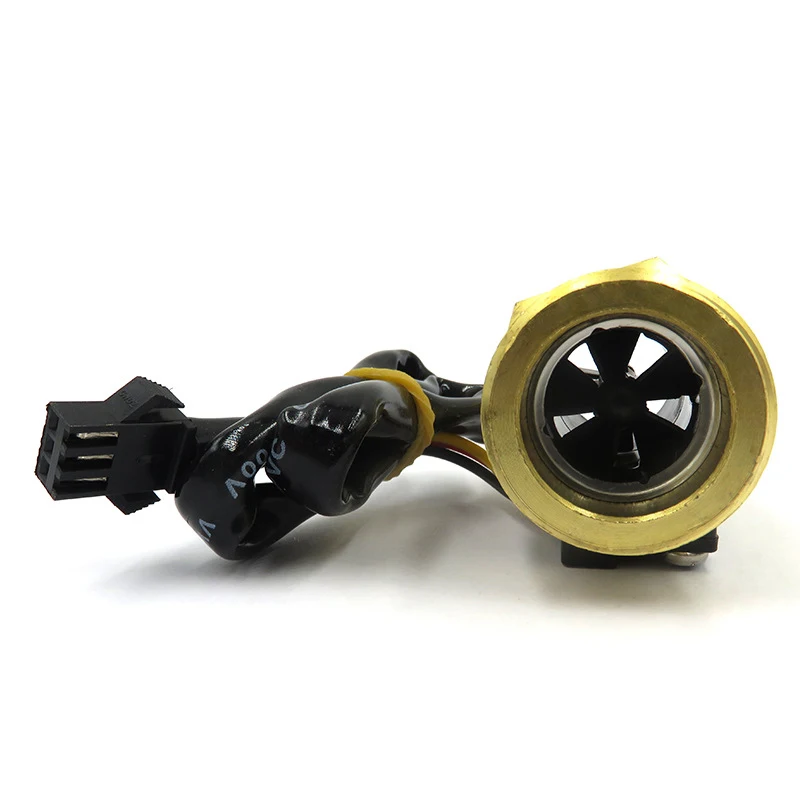

The water flow sensor is mainly composed of a brass valve body, a water flow rotor assembly, a steady flow assembly and a Hall element. It is installed at the water inlet end of the water heater to detect the flow rate of the inlet water. When the water passes through the water flow rotor assembly, the magnetic rotor rotates, and the speed changes linearly with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The controller judges the size of the water flow and regulates it.
Technical Specifications
Interface size: 1/2"(DN15), 3/4"(DN20), 1"(DN25)
Working voltage range: DC3.5～24V
Material: Brass
Medium temperature: ≤120℃
Output pulse high level: >DC 4.5V (input voltage DC 5V).
Output pulse low level: 100MΩ
Flow range: 1/2"(1~25 L/min within 3% within), 3/4"(1~40 L/min within 3% within), 1"(2~50 L/min within 3% within)
Flow pulse characteristics: 1/2" F=(11*Q)±3%; 3/4" F=(6.6*Q)±3%; 1" F=(8*Q-4)±3%; Q = L/Min
Tightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformation.
