2.2kw SS Dust Collector with Two Arms Vacuum Cleaner for Dust Dust Collector for Powder Flour Feeding Bunker
US $1,800.00-2,000.00 / set
1 set(s)Minimum order
condition:
New
minimum particle size:
0.3um
place of origin:
Jiangsu, China
brand name:
YORKTECH
dimension(l*w*h):
650*650*1700mm
weight:
180 kg
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$6,000.00-12,000.00
1 set (MOQ)
$6,000.00-12,000.00
1 set (MOQ)
$1,800.00-2,000.00
1 set (MOQ)
$1,400.00-1,500.00
1 set (MOQ)
$1,800.00-2,000.00
1 set (MOQ)
$6,000.00-12,000.00
1 set (MOQ)
$1,800.00-2,000.00
1 set (MOQ) Contact us
Quik Detail
| condition | New |
|---|---|
| minimum particle size | 0.3um |
| place of origin | Jiangsu, China |
| brand name | YORKTECH |
| dimension(l*w*h) | 650*650*1700mm |
| weight | 180 kg |
| warranty | 1 Year |
| Product name | 2.2kw SS Dust Collector with Two Arms |
| Power | 2.2 kW |
| Air volume | 2200m3/h |
| Filtration efficiency | ≥99.9% |
| Filter cartridge quantity | 2 |
| Filter cartridge material | PTFE |
| Air inlet | 200 mm |
| Pressure | 1470 Pa |
| Size | 650*650*1700mm |
| Dust cleaning type | Pulse-jet Dust Cleaning |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Building Material Shops, Construction works , Food & Beverage Shops |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Warranty of core components | 1 Year |
| Core Components | motor |
| Marketing Type | New Product 2024 |
Product Detail
2.2kw SS Dust Collector with Two Arms Vacuum Cleaner for Dust Dust Collector for Powder Flour Feeding Bunker
Product Features：
✅ Corrosion Resistance – Built to withstand harsh environments
✅ High Filtration Efficiency – Capture fine dust and improve air quality
✅ Durable & Low Maintenance – Longer service life with minimal upkeep
✅ Heat & Chemical Resistance – Perfect for high-temp and chemical-heavy industries
✅ Easy to Clean – Ideal for hygienic sectors like food and pharma
Main application industries：
🔹Pharmaceutical and Medical 🔹Food and Beverage
🔹Chemical Processing 🔹Metalworking and Foundry
🔹Cement and Construction 🔹Mining and Mineral Processing
🔹Woodworking 🔹Power Generation
🔹Automotive and Aerospace 🔹Electronics
Selection Parameters
Model | Air flow m³/h | Power kw | Filter Qty. pc | Filter material | Air inlet mm | Air outlet mm | Pressure (pa) | Size mm |
YKM-800 | 800 | 0.75 | 1 | PTFE/coated film | Φ100 | 100*300 | 1210 | 500*500*1450 |
YKM-1600 | 1600 | 1.5 | 1 | PTFE/coated film | Φ150 | 150*350 | 1360 | 550*550*1450 |
YKM-2200 | 2200 | 2.2 | 2 | PTFE/coated film | Φ200 | 200*400 | 1470 | 650*650*1700 |
YKM-2700 | 2700 | 3 | 4 | PTFE/coated film | Φ250 | 300*300 | 1578 | 800*800*2000 |
YKM-4000 | 4000 | 4 | 4 | PTFE/coated film | Φ250 | 300*300 | 1650 | 800*800*2000 |
YKM-6000 | 6000 | 5.5 | 4 | PTFE/coated film | Φ300 | 350*350 | 2014 | 950*950*2100 |
YKM-8000 | 8000 | 7.5 | 6 | PTFE/coated film | Φ400 | 400*400 | 2554 | 1000*1200*2100 |
YKM-10000 | 10000 | 11 | 9 | PTFE/coated film | Φ500 | 400*400 | 3100 | 1200*1200*2300 |
YKM-15000 | 15000 | 15 | 9 | PTFE/coated film | Φ500 | 400*400 | 3200 | 1200*1200*2300 |
Product display
Suction fan：
Optimized Airflow Management: The fan in a filter cartridge dust collector is designed to maintain consistent and optimized airflow, ensuring that dust-laden air is efficiently drawn into the system and through the filter cartridges
Energy Efficiency: High-quality fans used in these systems are designed for energy efficiency. They are capable of delivering the required airflow with minimal power consumption
Durability and Reliability: Fans in filter cartridge dust collectors are typically built to withstand harsh industrial environmentsControl instruments:
Pressure Differential Gauges (Manometers)：Purpose: Measures the pressure difference across the filter media, indicating the level of dust buildup and the filter's efficiency.
Pulse Controller：Purpose: Controls the cleaning cycle of the filters by sending signals to the solenoid valves for pulse-jet cleaning.
Control Panels：Purpose: Centralized control of all monitoring and operational functions of the dust collector.
Filter cartridge：
High Filtration Efficiency:Filter cartridges can achieve high levels of filtration, removing fine particles, contaminants, and impurities with great accuracy.
Ease of Installation and Replacement:Cartridges are typically easy to install and replace, requiring minimal tools and technical expertise.
Versatility: Suitable for use in diverse industries, including water treatment, food and beverage, pharmaceuticals, petrochemicals, and more.
Ease of Installation and Replacement:Cartridges are typically easy to install and replace, requiring minimal tools and technical expertise.
Versatility: Suitable for use in diverse industries, including water treatment, food and beverage, pharmaceuticals, petrochemicals, and more.
Air source processing unit:
Enhanced Gas Purity: Effectively removes impurities such as moisture, hydrocarbons, particulates, and other contaminants, ensuring that the gas meets required purity standards.
Pressure and Flow Regulation:Maintains a stable and consistent gas flow rate and pressure, crucial for processes that require precise control.
Increased Equipment Longevity:By providing clean, regulated gas, the unit minimizes the risk of damage to downstream equipment.
Pressure and Flow Regulation:Maintains a stable and consistent gas flow rate and pressure, crucial for processes that require precise control.
Increased Equipment Longevity:By providing clean, regulated gas, the unit minimizes the risk of damage to downstream equipment.
Air receive：
Compressed Air Reservoir: The gas storage tank acts as a reservoir for compressed air, which is used to clean the
filter cartridges. During the pulse-jet cleaning process,
Pressure Stabilization: The gas storage tank helps to stabilize the air pressure within the system. It ensures that a consistent and sufficient amount of compressed air is available for the pulse-jet cleaning process, even if the demand fluctuates.
Pulse-jet Cleaning: The stored compressed air is released through pulse valves, creating a sudden burst of air that shakes the filter cartridges, knocking off accumulated dust.
filter cartridges. During the pulse-jet cleaning process,
Pressure Stabilization: The gas storage tank helps to stabilize the air pressure within the system. It ensures that a consistent and sufficient amount of compressed air is available for the pulse-jet cleaning process, even if the demand fluctuates.
Pulse-jet Cleaning: The stored compressed air is released through pulse valves, creating a sudden burst of air that shakes the filter cartridges, knocking off accumulated dust.
Dust collection drawer:
Sliding Mechanism: The drawer often includes a sliding mechanism for easy removal and insertion, making it user-friendly when emptying the collected dust.Seal and Containment:Sealed Edges: The drawer typically has rubber or foam gasketsto create a tight seal when closed, preventing dust from escaping
Handles or Latches: Equipped with handles or latches for easy gripping, securing the drawer in place during operation, and providing ease of access for maintenance.
Inhalation arm：
Flexible Joints: The suction arm typically consists of multiple joints or segments that allow it to be adjusted and
positioned easily.
360-Degree Rotation: Many suction arms can rotate fully, enabling precise positioning at any angle.
Durable Construction: Suction arms are usually made of robust materials like steel, aluminum, or high-grade plastics to withstand harsh working environments.
Variable Diameter: The diameter of the suction arm typically ranges from 2 to 8 inches or more, depending on the volume of dust or fumes being collected.
positioned easily.
360-Degree Rotation: Many suction arms can rotate fully, enabling precise positioning at any angle.
Durable Construction: Suction arms are usually made of robust materials like steel, aluminum, or high-grade plastics to withstand harsh working environments.
Variable Diameter: The diameter of the suction arm typically ranges from 2 to 8 inches or more, depending on the volume of dust or fumes being collected.
Wooden crate packaging:
Robust Protection: Wooden boxes are highly durable and provide excellent protection for heavy or fragile
items during shipping and handling.
Load-Bearing Capacity: They can bear significant weight, making them ideal for transporting large, heavy, or bulky items.
Shock Absorption: Wood provides a natural cushioning effect, helping to absorb shocks and vibrations during transit.
Traditional Look: Wooden packaging offers a classic, natural aesthetic that can enhance the perceived value of the product.
items during shipping and handling.
Load-Bearing Capacity: They can bear significant weight, making them ideal for transporting large, heavy, or bulky items.
Shock Absorption: Wood provides a natural cushioning effect, helping to absorb shocks and vibrations during transit.
Traditional Look: Wooden packaging offers a classic, natural aesthetic that can enhance the perceived value of the product.
Company Profile
Since 2008, located in Wuxi New- district Industrial Park, in Wuxi City,Jiangsu province. Wuxi YORK is a comprehensive enterprises which integrates researching, manufacturing,market developing and service. YORK Environmental Protection Machinery, specialize in design, R&D and manufacture all kinds of dust collector,fume extractor ,dust/fume collection system,etc.
At present, our company products have been all over the country's major provinces and cities, we have exported to more than 60 countries and regions.Our products have been widely recognized and highly praised by customers.

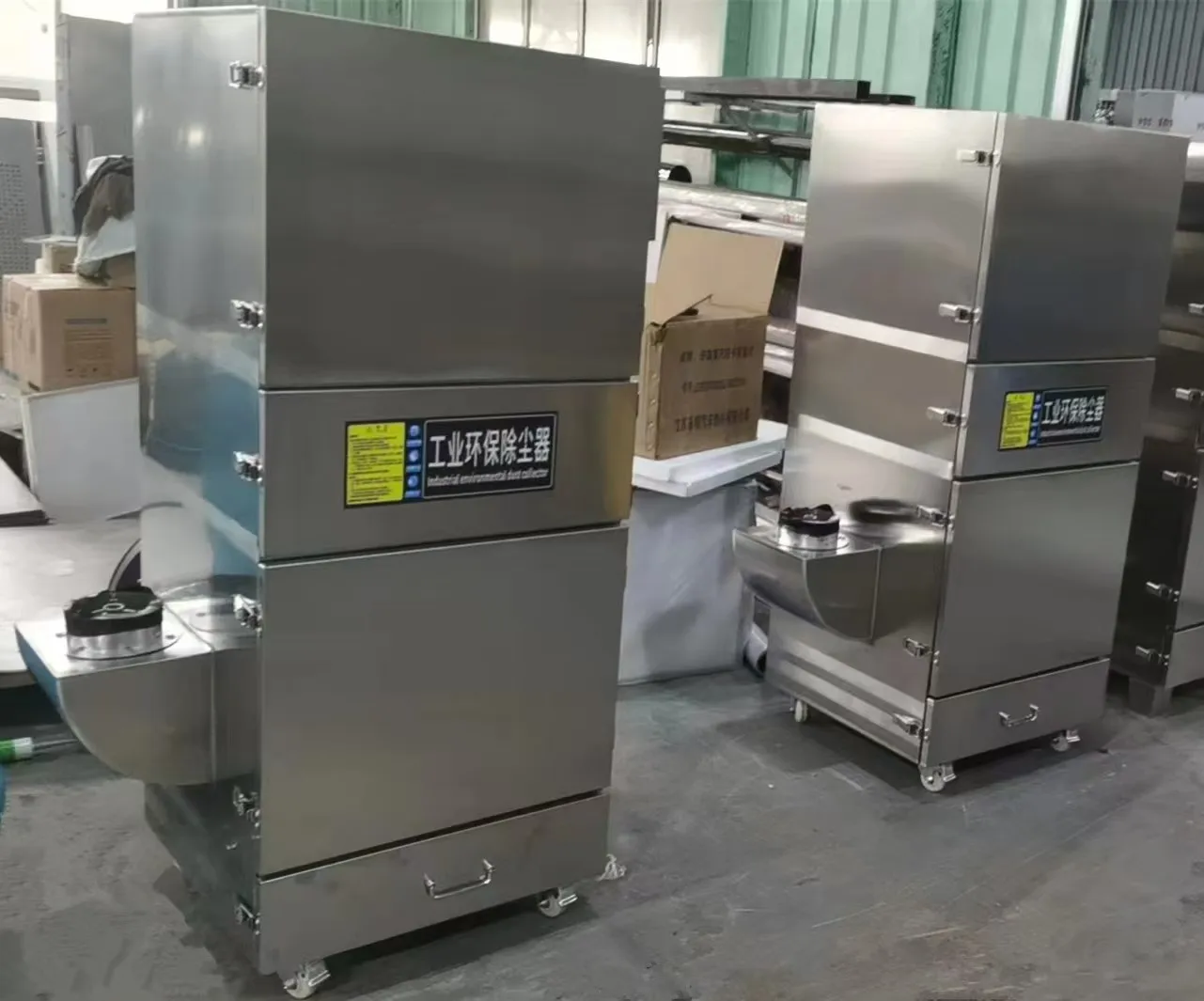

Appearance and workmanship display：
