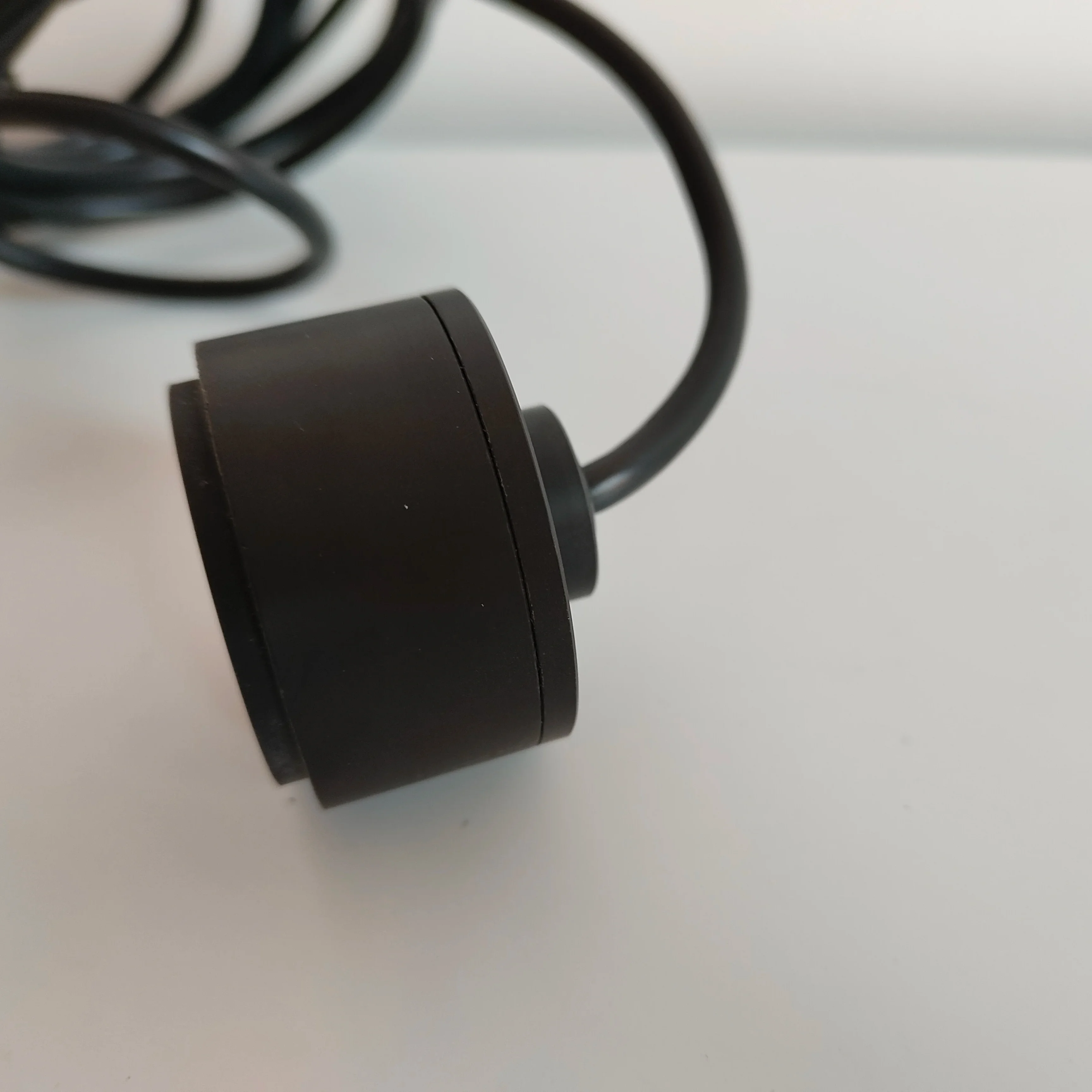

200khz Depth Sounder Fish Finder sensor water level Underwater Ultrasonic Transducer

US $16.00-26.00 / piece
1 piece(s)Minimum order
Series:
Water level Transducer, Water Depth Transducer
Mounting Type:
Easy to install
Description:
Ultrasonic Sensor, ultrasonic transducer
Model Number:
LH-SS200-02A
Type:
Ultrasonic Sensor
Place of Origin:
Jiangsu, China
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Series

Water level Transducer, Water Depth Transducer

Mounting Type

Easy to install

Description

Ultrasonic Sensor, ultrasonic transducer

Model Number

LH-SS200-02A

Type

Ultrasonic Sensor

Place of Origin

Jiangsu, China

Brand Name

LIANHUI

Use

water depth measurement/fishing

Theory

Ultrasonic

Output

other

Product name

Ultrasonic Transducer

Transducer frequency

200KHZ±4 KHZ

Sensitive element material

PZT-4

Send response

161dB/V

Revalidation failed

-190dB

Beam Angle

14±1°

Electrostatic capacitance

1500±15%

Shunt impedance

500(±30%Ω)

Ambient temperature

'-20℃ - 70℃

Product Detail

Product Description
Specification
Transducer frequency
200KHZ±4 KHZ
Sensitive element material
PZT-4
Send response
161dB/V
Revalidation failed
-190dB
Beam Angle
14±1°
Electrostatic capacitance
1500±15%
Shunt impedance
500±30%(Ω)
Ambient temperature
-20℃ - 70℃
rated power
200W
Housing Material
ABS
Cable length
6M
Note
Construction and size of transducer is customizable。
