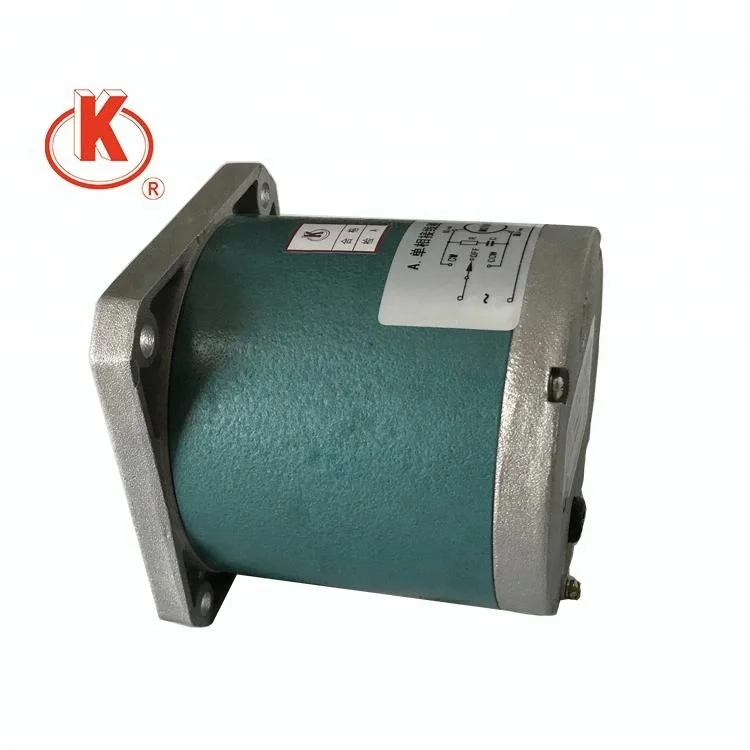

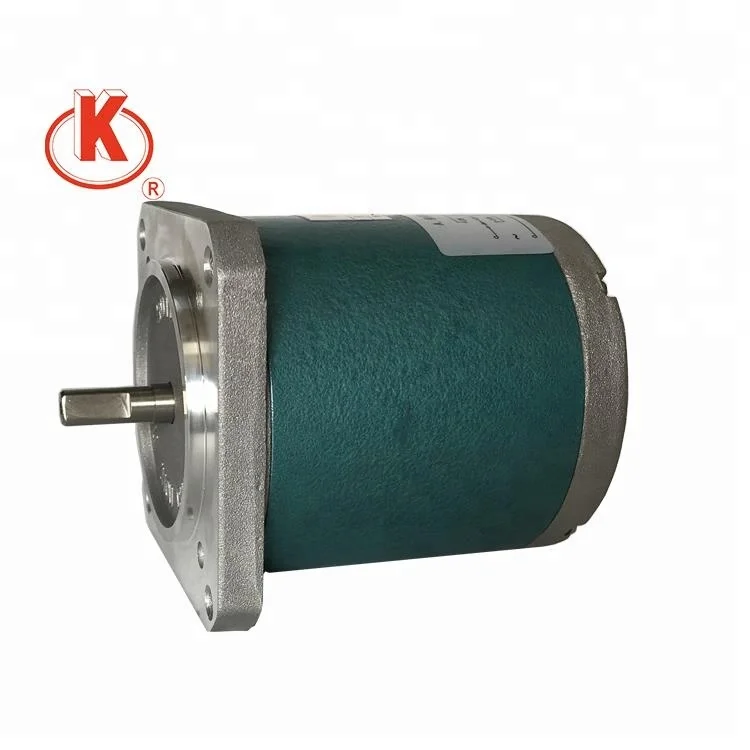

230V 90mm Ac Micro Motors Sale for Wind Generator
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SOK MOTOR- wind generator motors for sale |
| Model Number | 90TDY120D7-2- wind generator motors for sale |
| Output Power | request |
| Type | Synchronous Motor |
| Frequency | 60Hz |
| Phase | Single-phase |
| Protect Feature | Drip-proof |
| AC Voltage | 230V |
| Certification | CCC, ce, rohs, BV |
| wind generator motors for sale | 230V 90mm micro motors sale for wind generator |
| Speed | 120RPM |
| Input current | 0.35A |
| Input power | 70W |
| Rated torque2 | 2300mN.m |
| Capcitor | 1.8uF/500V |
| Insulation class | B |
| Weight | 3.2kg |
| Resistance | 910Ω/50W |
Product Detail
PM slow speed synchronous motor is one kind of totally enclosed motor, which can naturally turn at low speed ( 60 rpm ,72 rpm, 115 rpm, 214 rpm,300 rpm ,etc.).
For even lower speed planetary gear reducers are offered. SOK synchronous motors produce very low speed with modest gear reductions.
1.Temperature:-25℃～ +40℃；
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2
Typical application
Auto-testing equipment
Medical equipment
Timing belt drives
X-ray scanning
Textile machines
Electrical valve actuator
Cryogenic pump
Heat exchanger
Remote control of switches rheostat
Printing,packaging machines
Antenna rotors
Auto-welding machines
Parameter of 230V 90mm ac micro motors sale for wind generator
Note: The typical specifications above just for your reference. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Dimension of 230V 90mm ac micro motors sale for wind generator
