250LPH Water Filter RO Production Line River Water Purification System Water Treatment Machine
US $1,530.00 / set
1 set(s)Minimum order
machinery capacity:
2000BPH
application:
Beverage
packaging type:
CANS, Bottles, Bags, Pouch
packaging material:
Plastic
automatic grade:
Automatic
driven type:
Electric
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$18,000.00
1 set (MOQ)
$3,200.00-3,700.00
1 set (MOQ)
$400.00-450.00
1 meter (MOQ)
Contact us
Quik Detail
| machinery capacity | 2000BPH |
|---|---|
| application | Beverage |
| packaging type | CANS, Bottles, Bags, Pouch |
| packaging material | Plastic |
| automatic grade | Automatic |
| driven type | Electric |
| Voltage | 220V/380V |
| place of origin | Jiangsu, China |
| brand name | AK-MACHINE |
| dimension(l*w*h) | 2200X2100X2200MM |
| warranty | 2 years |
| key selling points | Easy to Operate |
| filling material | Water |
| filling accuracy | 95% |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| core components | motor, Bearing |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Suitable for | Water Filling Line |
| type kind | water treatment plants |
| Function | water treatment system |
| Material | SUS304 |
| Usage | ro water treatment plant |
| Capacity | 2000L/H |
| Bottle type | PET Plastic Bottle |
| Advantage | High Effective |
| Packing material | Wood Packing |
| Type | Filling Machine |
| Condition | New |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Home Use |
| Showroom Location | United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Nigeria, Malaysia, Australia |
| Warranty of core components | 2 years |
| Weight | 2500 KG |
Product Detail
Product Description

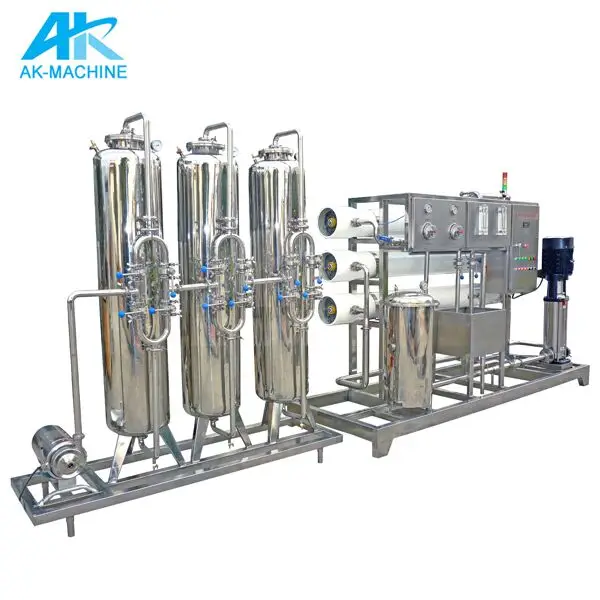

250LPH Water Filter RO Production Line River Water Purification System Water Treatment Machine
Production Capacity | 250L-10000L per hour |
TDS range | 500-700（one stage） |
Water resouce1 | river water,well water, |
Water resouce1 | underground water,rain water,tap water |
Process system | RO Reverse osmosis |
Machine Material | Stainless Steel 304 |
Application | drinking water table water juice soft drink |
Raw water→raw water tank → raw water booster pump→mechanical filter→activated carbon filter →precise filter →high-pressure pump →Reverse Osmosis Components→pure water tank→pure water
Detailed Images
Raw water pump
We use high quality CNP pump as raw water pump.Requested access to the system's raw water has a stable flow and pressure, its purpose is to prevent water fluctuations have an impact on the system operation to ensure the stability of the system into the water.
RO Water Treatment Machinery pretreatment process
1.Silica sand filter:It can remove the suspended solids and gluten particles in the water, thus reduce turbidity of water.
2.Active carbon filter:It can remove the pigment, smell and a large number of biological organisms in the water.
3.Sodium ion exchanger :It can remove calcium and magnesium ions in the water, so as to soften the water.
4.Precision filter:It can ensure that granularity of the water into reverse osmosis membrane is less than 0.1 um.
quartz sand filter
Raw water into the filter for a simple mechanical filter, mainly to remove suspended solids in water, colloidal particles and other large impurities in the water
when the water pressure and the pressure difference over 10Psi (0.7kg/cm2) or water SDI> 5, the need for backwashing .
In general, before running back wash once a day.
activated carbon filter
Activated carbon is used wood, coal, shell (nuclear) and other carbonaceous material through chemical or physical method activation made. It has a very large number of pores and specific surface area, which has a strong physical adsorption capacity, the effective adsorption of organic pollutants in water. Primarily to remove organic matter in raw water, chlorine, odor, color, etc., so that the original residual chlorine in water ≤ 0.1mg / l, effective protection of RO membrane from chlorine damage to parts of activated carbon
water softer
The sodium ion exchange softening is used to remove water calcium and magnesium ions , preparation of demineralized water of ion exchange . The composition of the water hardness , calcium, magnesium , and softening in the ion exchange resin to exchange the water calcium and magnesium ions by sodium ion exchange , so that the water is not easy to form carbonate scale and sulfate scale , resulting in softened water
Precision Filter
The precision filter, also known as cartridge filter housing,
is used to prevent impurities like particles from entering high pressure pump and reverse osmosis membrane module.
The filtration precision ranges form 0.10μm to 60μm and it is free from influences feed pressure fluctuation.
RO main machine
This system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.
ozone mixing tower and generator
Ozone generator is used to produce ozone and provide raw materials for mixing tower. The ozone mixing tank is a kind of water
treatment equipment. It is to fully mix water and ozone, thus achieving purposes of sterilization, retaining freshness and
avoiding secondary pollution for the producing of mineral pure water.
treatment equipment. It is to fully mix water and ozone, thus achieving purposes of sterilization, retaining freshness and
avoiding secondary pollution for the producing of mineral pure water.
Contact Us
Related Products
Packing&Shipping
All the machines packed in wooden case packing with plywood.
After Sales Service
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30 days,if complete production line it is 45-60 days.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
Before shippment.
