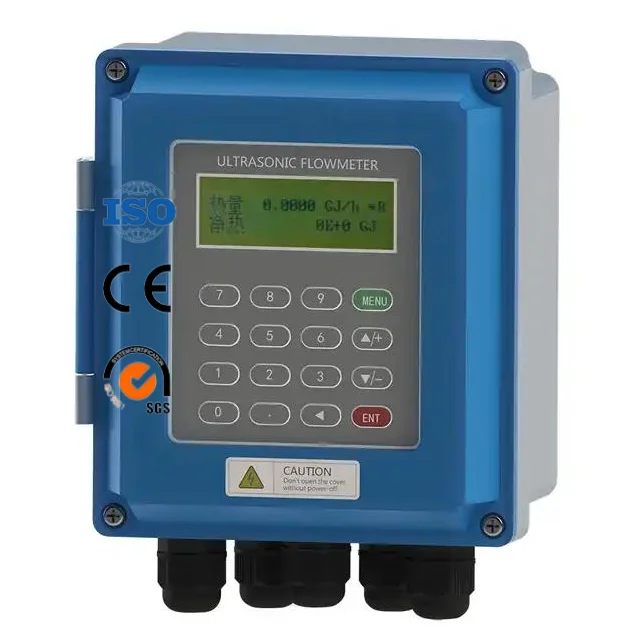

4-20mA RS485 Pipe Ultrasonic Flow Meter Clamp Price Portable Water Flow Meter Gas Ultrasonic Liquid Flowmeter
US $150.00 / set
1 set(s)Minimum order
warranty:
1 Year
customized support:
OEM, logo, label, package
place of origin:
Henan
brand name:
Kaifeng Fantai
model number:
FTUF
accuracy:
±0.5%, ±1%, OTHER
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$210.50-230.00
5 pieces (MOQ)
Contact us
Quik Detail
| warranty | 1 Year |
|---|---|
| customized support | OEM, logo, label, package |
| place of origin | Henan |
| brand name | Kaifeng Fantai |
| model number | FTUF |
| accuracy | ±0.5%, ±1%, OTHER |
| type | Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, ultrasonic flow meter, wall-mounted flow meter, portable flow meter |
| material | Stainless Steel |
| Medium | Water, Oil, liquid, acids, corrosive liquid |
| Product Name | On Chemical Liquid Water Transducer Portable Ultrasonic Flow Meter |
| Accuracy | +/-0.5% (Customize), +/-1.0% (Standard) |
| Power supply | Battery Powered |
| Output signal | 4~20mA, Pulse |
| Communication | RS-232, MODBUS |
| Connection | Clamp on, wall-mounted type, Clamp on, wall-mounted type |
| Caliber | DN15~DN6000 mm |
| Power consumption | <13W |
| Ambient temperature | -25 Deg C~+160Deg C |
| Display | LCD Digital |
| Temperature | 25 Deg C~+160Deg C |
| Pressure | 0.1-0.6 |
Product Detail
Product Description
Customized support | OEM, logo, label, package |
Type | Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, ultrasonic flow meter, wall-mounted flow meter, portable flow meter |
Product Name | On Chemical Liquid Water Transducer Portable Ultrasonic Flow Meter |
Accuracy | +/-0.5% (Customize), +/-1.0% (Standard) |
Power supply | Battery Powered |
Output signal | 4~20mA, Pulse |
Communication | RS-232, MODBUS |
Connection | Clamp on, wall-mounted type |
Caliber | DN15~DN6000 mm |
Power consumption | <13W |
Ambient temperature | -25 Deg C~+160Deg C |
Display | LCD Digital |
Parameters | ||||
No. | Name | Details | ||
1 | Diameter | DN40-500 | ||
2 | Accuracy | Better than ±1% | ||
3 | Repeatability | Better than 0.2% | ||
4 | Principle | Transit-time measuring principle | ||
5 | Flow range | 0.1-8m/s | ||
6 | Display | LCD, instantaneous flow, Positive and negative cumulative flow, Flow rate | ||
7 | Input | Three analogue 4-20mA can connect 3-wired heat transducers PT100 to measure heat | ||
8 | Medium | Sea water | ||
9 | Medium temperature | -30℃-90℃ | ||
10 | Power supply | DC8-36V or AC85-264V | ||
11 | Wire length | 5meters | ||
12 | Output | 4-20mA, MODBUS-RS485 | ||
13 | Power dissipation | 1.5W | ||
Recommend Products
Product Classification
Company Profile
Customer Feedback
Production Process
FAQ
1. How do you calibrate the flowmeter?
We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters.We use the Gravimetric for the 0.2% R flowmeters.
2. How can you gurantee the high accuracy?
The Gravimetric mothod is much more accurate than the volumetric calibration and we use the high accuracy sidorious scale to gurantee the less tolerance. Our high accuracy Sartorius scale can reach the 0.01%.so it is no problem to gurantee the 0.2% accuracy.
3. Can I be your agent?
Of course, yes, we are a developing company, welcome all the friends to be our agents.
We use the reference standard flowmeter method to calibrate the 0.5%R flowmeters.We use the Gravimetric for the 0.2% R flowmeters.
2. How can you gurantee the high accuracy?
The Gravimetric mothod is much more accurate than the volumetric calibration and we use the high accuracy sidorious scale to gurantee the less tolerance. Our high accuracy Sartorius scale can reach the 0.01%.so it is no problem to gurantee the 0.2% accuracy.
3. Can I be your agent?
Of course, yes, we are a developing company, welcome all the friends to be our agents.
