ASTM A516 Gr.65 SA 516 Gr 55 60 n 65n Steel Sheet Gr60 Gr70 Steel Plate SA516 Gr70n
US $0.60-0.70 / kilogram
1000 kilogram(s)Minimum order
Place of Origin:
Tianjin, China
Brand Name:
YCT
Application:
Boiler Plate
Type:
Steel Sheet, Hot Rolled Steel Sheet
Thickness:
3-500mm
Standard:
AiSi
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$0.60-0.80
1000 kilograms (MOQ)
$3,333.00-3,533.00
1 ton (MOQ)
$515.00-580.00
5 tons (MOQ)
$580.00-600.00
1 ton (MOQ)
$1.30-2.10
1000 kilograms (MOQ)
$1.20-2.00
1000 kilograms (MOQ) Contact us
Quik Detail
| Place of Origin | Tianjin, China |
|---|---|
| Brand Name | YCT |
| Application | Boiler Plate |
| Type | Steel Sheet, Hot Rolled Steel Sheet |
| Thickness | 3-500mm |
| Standard | AiSi |
| Width | 1000mm-2500mm |
| Length | As required |
| Certificate | ce, ISO9001 |
| Grade | A516 Gr70 |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Skin Pass | Yes |
| Alloy Or Not | Non-Alloy |
| Delivery Time | within 7 days |
| Surface | Smooth |
| Shape | Flat Plate |
| Material | A516 Gr70 |
| Usage | Boiler and pressure vessel plate |
| Packing | Standard Seaworthy Packing |
| Payment term | 30%TT Advance + 70% Balance |
| Special Use | High-strength Steel Plate |
| Model Number | carbon steel plate |
Product Detail
Product Description

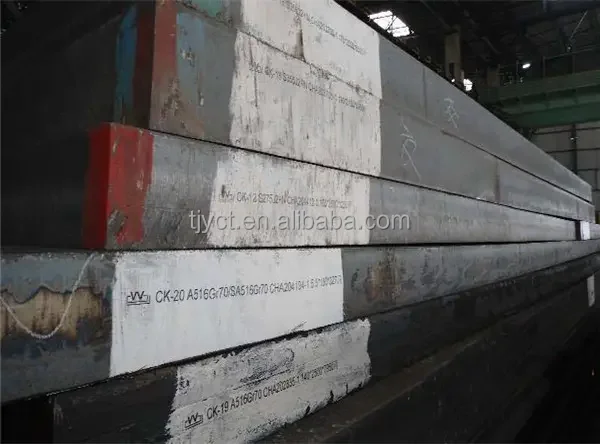

Boiler and Pressure Vessel Steel Coil / Sheet / Plate
ASTM A516 Steel Plates: A516 Gr 55 / A516 grade 380, A516 Gr 60 / A516 grade 415, A516 Gr 65 / A516 grade 450, A516 Gr 70 / A516 grade 485
ASTM A516 steel plates are carbon steel plates intended primarily for service in welded pressure vessels where improved notch toughness is important.
A516 grade 55, A516 grade 60, A516 grade 65, A516 grade 70 steel plate heat treatment:
1) ASTM A516 steel plates 1.50 in. [40 mm] and under in thickness are normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both.
ASTM A516 Steel Plates: A516 Gr 55 / A516 grade 380, A516 Gr 60 / A516 grade 415, A516 Gr 65 / A516 grade 450, A516 Gr 70 / A516 grade 485
ASTM A516 steel plates are carbon steel plates intended primarily for service in welded pressure vessels where improved notch toughness is important.
A516 grade 55, A516 grade 60, A516 grade 65, A516 grade 70 steel plate heat treatment:
1) ASTM A516 steel plates 1.50 in. [40 mm] and under in thickness are normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both.
2) ASTM A516 steel plates over 1.50 in. [40 mm] in thickness shall be normalized.
3) When notch-toughness tests are required on plates 1.5 in. [40 mm] and under in thickness, the A516 steel plates
shall be normalized unless otherwise specified by the purchaser.
shall be normalized unless otherwise specified by the purchaser.
Specification
ASTM A516 Steel Plate Chemical Composition: | ||||||||
Elements | A516 grade 55 | A516 grade 60 | A516 grade 65 | A516 grade 70 | ||||
C (Thk≤12.5mm) | 0.18 | 0.21 | 0.24 | 0.27 | ||||
C (12.5-20mm) | 0.20 | 0.23 | 0.26 | 0.28 | ||||
C (50-100mm) | 0.22 | 0.25 | 0.28 | 0.30 | ||||
C (100-200mm) | 0.24 | 0.27 | 0.29 | 0.31 | ||||
C (Thk>200mm) | 0.26 | 0.27 | 0.29 | 0.31 | ||||
Mn (Thk≤12.5mm) | 0.55-0.98 | 0.55-0.98 | 0.79-1.30 | 0.79-1.30 | ||||
Mn (Thk>12.5mm) | 0.55-1.30 | 0.79-1.30 | 0.79-1.30 | 0.79-1.30 | ||||
P | 0.025 | 0.025 | 0.025 | 0.025 | ||||
S | 0.025 | 0.025 | 0.025 | 0.025 | ||||
Si | 0.13-0.45 | 0.13-0.45 | 0.13-0.45 | 0.13-0.45 | ||||
ASTM A516 Steel Plate Mechanical Properties: | ||||||||||
ASTM A516 | ASTM A516 | Tensile strength | Yield strength | Elongation in | Elongation in | |||||
Steel Grade | Steel Grade | ksi [Mpa] | ksi [Mpa] min. | 8in. [200mm] | 2in. [50mm] | |||||
A516 Gr 55 | A516 grade 380 | 55-75 [380-515] | 30 [205] | ≥23% | ≥27% | |||||
A516 Gr 60 | A516 grade 415 | 60-80 [415-550] | 32 [220] | ≥21% | ≥25% | |||||
A516 Gr 65 | A516 grade 450 | 65-85 [450-585] | 35 [240] | ≥19% | ≥23% | |||||
A516 Gr 70 | A516 grade 485 | 70-90 [485-620] | 38 [260] | ≥17% | ≥21% | |||||
Packing & Delivery
Company Profile
TJYCT Steel Co., Ltd is a comprehensive company, who is founded in 2008. Specialized in stainless steel, alloy steel, galvanized steel in pipe and tube,plate and coil,profiles.
We are located in Tianjin Province, the Steel base of China, It is well-known all over the world. We are close to Tianjin Seaport, that is much convenient in carriage. Since our establishment, we have always adhered to the business policy of "Quality for Survival, Product for Development, Credibility for Cooperation and Service for Customer".
Under the guidance of this business policy, our company acts as a perennial distributor of steel pipe, steel plate, steel coil, steel rod, steel profiles of Angang Steel, HBIS, JISCO,SGHB ,and etc. Modern large-scale outdoor storage and indoor storage have been set up in our company, and 20,000 tons of available goods have been prepared.
We welcome all users,manufacturers and traders to cooperate with us.
