C9350C Automotive Drum Disc Brake Lathe
US $2,700.00-2,800.00 / set
1 set(s)Minimum order
max. length of workpiece (mm):
Other
range of spindle speed(r.p.m):
0 - 140 r.p.m
machining capacity:
Light Duty
type:
Horizontal
place of origin:
Shandong, China
brand name:
WELLDE
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$320.00-350.00
1 set (MOQ)
$8,200.00-8,500.00
1 set (MOQ)
$600.00-650.00
1 set (MOQ) Contact us
Quik Detail
| max. length of workpiece (mm) | Other |
|---|---|
| range of spindle speed(r.p.m) | 0 - 140 r.p.m |
| machining capacity | Light Duty |
| type | Horizontal |
| place of origin | Shandong, China |
| brand name | WELLDE |
| model number | C9350C |
| voltage | 380V, 220V, 110V |
| dimension(l*w*h) | 1280*1100*1445MM |
| weight (kg) | 300 |
| warranty | 1 Year |
| key selling points | Competitive Price |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| max. weight of workpiece(kg) | 300 |
| spindle taper | Other |
| cutting torque | 0 N.m |
| tool post stations | None |
| Condition | New |
| Applicable Industries | Machinery Repair Shops |
| Showroom Location | None |
| Core Components | Motor |
Product Detail
Products Description

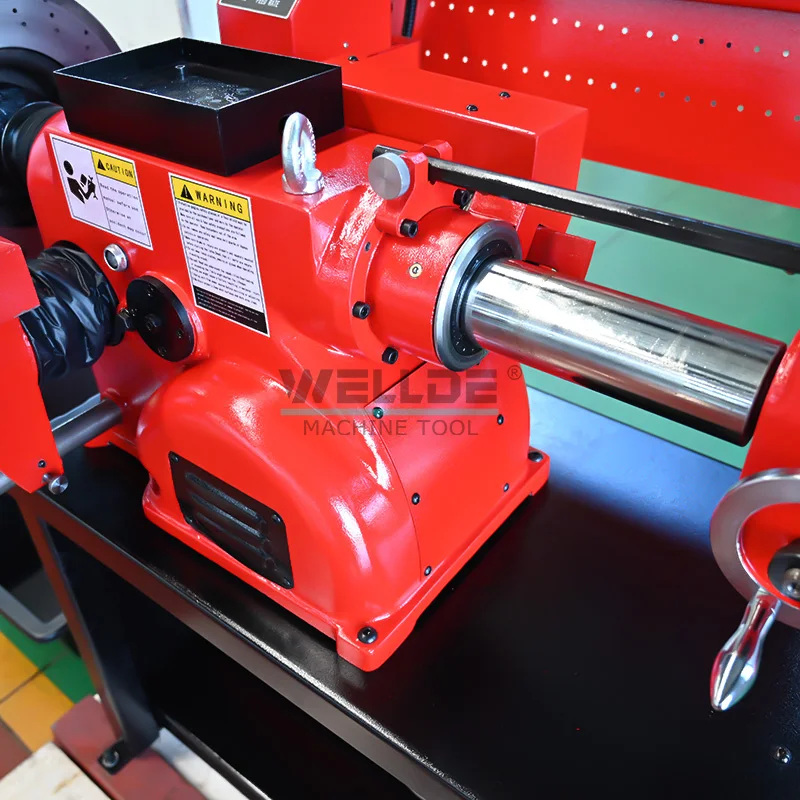

C9350C Automotive Drum Disc Brake Lathe
Brake Drum Brake Disc Lathe C9370C Applicable for repairing large, medium & small brake disc/drum.
3 spindle speed can be adjusted by changing belt position.
Mechanical feeding transmission ensures long working life.
3 spindle speed can be adjusted by changing belt position.
Mechanical feeding transmission ensures long working life.
Specification
Model | C9350c | C9370 | C9370C | ||
Brake disc | Diameter mm | 178-368 | 178-457 | 178-457 | |
Thickness mm | 48 | 48 | 48 | ||
Brake drum | Diameter mm | 152-450 | 152-711 | 152-711 | |
Depth mm | 160 | 220 | 220 | ||
spindle speed rpm | 70,88,118 | 70,88,118 | 70,88,118 | ||
Cross feeding capacity mm/r | 0-0.4 | 0.05/0.25 | 0.-0.4 | ||
spindle feeing capaity mm/r | 0-0.4 | 0.05-0.5 | 0-0.4 | ||
Motor power kw | 0.75 | 0.75 | 0.75 | ||
Overall dimensions(L*M*H)mm | 1200*900*1500 | 1280*1100*1445 | 1280*1100*1445 | ||
Weight kg | 300 | 300 | 320 | ||
