CA6140 Series Universal Metal Manual Lathe, Affordable Price, Factory Direct Delivery Price Guarantee
US $3,700.00-3,900.00 / set
1 set(s)Minimum order
table travel (x) (mm):
810
machining capacity:
Medium Duty
table travel (y) (mm):
400
table travel (z) (mm):
400
spindle taper:
R8/ISO40
range of spindle speed(r.p.m):
80 - 4540 r.p.m
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$2,700.00-2,800.00
1 set (MOQ)
$1,600.00-1,680.00
1 set (MOQ)
$7,000.00-8,200.00
1 set (MOQ)
$960.00-1,200.00
1 set (MOQ)
Contact us
Quik Detail
| table travel (x) (mm) | 810 |
|---|---|
| machining capacity | Medium Duty |
| table travel (y) (mm) | 400 |
| table travel (z) (mm) | 400 |
| spindle taper | R8/ISO40 |
| range of spindle speed(r.p.m) | 80 - 4540 r.p.m |
| place of origin | Shandong, China |
| brand name | WELLDE |
| model number | CA6140 |
| type | Universal |
| voltage | 220V/380V/410V |
| weight (kg) | 2000 |
| warranty | 1 Year |
| key selling points | Competitive Price |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| max. table load(kg) | 2000 kg |
| Name | Drilling Milling Machine |
| Condition | New |
| Showroom Location | UAE |
| Core Components | Gear |
| Applicable Industries | Manufacturing Plant |
| Warranty of core components | 1 Year |
| Marketing Type | New Product |
Product Detail
Products Description
WELLDE good price Classic multifunctional mechanical lathe CA6140 lathe
Lathe is a machine tool mainly used for turning the rotating workpiece. In the lathe can also be used to drill, reamer, reamer, tap, die and knurling tools for the corresponding processing
Specification
Type | CA6140 CA6240 | CA6150 CA6250 | CA6161 CA6261 | CA6166 CA6266 | CA6180 CA6280 | |||||
Max. swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm | |||||
Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm | |||||
Max. swing in gap | 630mm | 720mm | 830mm | 880mm | 1020mm | |||||
Max. effective length in gap | 210mm | |||||||||
Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | |||||||||
Width of bed | 400mm | |||||||||
Section of turning tool | 25×25 mm | |||||||||
Main spindle motor | 7.5kw(10HP) | |||||||||
Spindle | ||||||||||
Spindle speed | 16--1400rpm(24step) | |||||||||
Spindle bore | 52mm (80mm),(105mm) | |||||||||
Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | |||||||||
Feed | ||||||||||
NO. of feed | (64 kinds)(for each) | |||||||||
Range of metric threads | (1-192mm) (44 kinds) | |||||||||
Range of inch threads | (1-24tpi) (21kinds) | |||||||||
Range of module threads | 0.25-48 (module 39 kinds) | |||||||||
Range of diametral pitch threads | 1-96DP (37 kinds) | |||||||||
Tailstock | ||||||||||
Max. tailstock spindle travel | 150mm | |||||||||
Tailstock spindle diameter | 75mm | |||||||||
Taper of tailstock spindle centre hole | 1-96DP (37 kinds) | |||||||||
Packing dimensions (L*W*H) | ||||||||||
Overall dimensions for 750mm | 2440×1140×1750mm | |||||||||
Overall dimensions for 1000mm | 2700×1140×1750mm | |||||||||
Overall dimensions for 1500mm | 3200×1140×1750mm | |||||||||
Overall dimensions for 2000mm | 3700×1140×1750mm | |||||||||
Overall dimensions for 2200mm | 4030×1140×1750mm | |||||||||
Overall dimensions for 3000mm | 4800×1140×1750mm | |||||||||
Overall dimensions for 4000mm | 5680×1140×1750mm | |||||||||
Weight (kg) | ||||||||||
Overall dimensions for 750mm | 2100 | 2170 | 2300 | 2400 | 2520 | |||||
Overall dimensions for 1000mm | 2200 | 2260 | 2380 | 2580 | 2720 | |||||
Overall dimensions for 1500mm | 2380 | 2450 | 2577 | 2830 | 3000 | |||||
Overall dimensions for 2000mm | 2750 | 2800 | 3000 | 3050 | 3300 | |||||
Overall dimensions for 2200mm | 2800 | 3000 | 3150 | 3400 | 3500 | |||||
Overall dimensions for 3000mm | 3300 | 3500 | 3600 | 4000 | 4220 | |||||
Overall dimensions for 4000mm | 3500 | 3800 | 3950 | 4600 | 4900 | |||||
Recommend Products

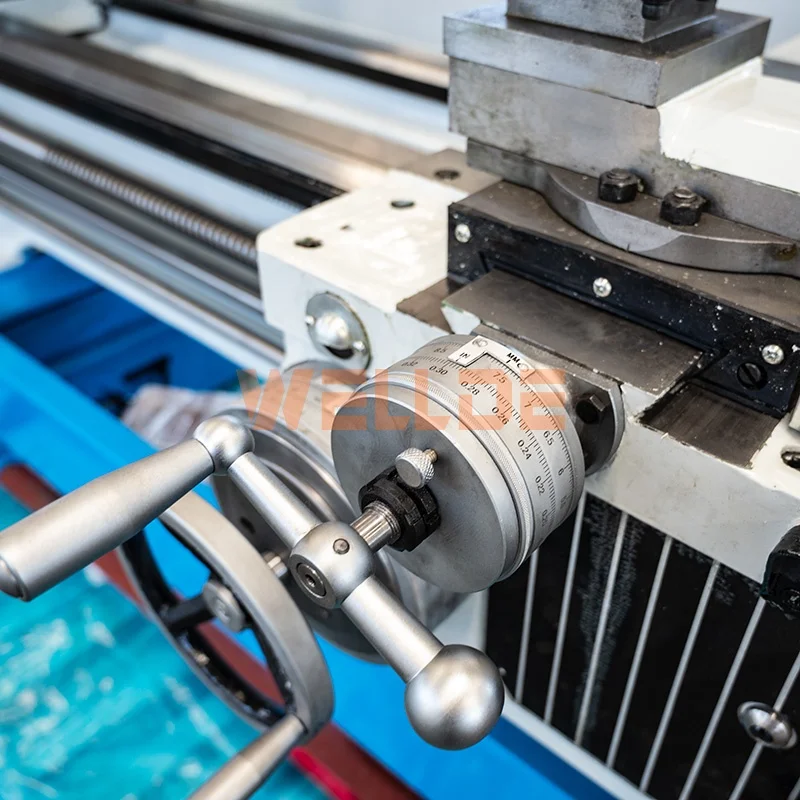

Details Images
Company Profile
Shandong Wellde CNC Machine Tool Co.,Ltd
Is specialized in machine products export, production, sales and after-sales service .In many years of practice, we established a strict quality assurance system.
Our products range cover press machine, CNC lathe, CNC milling machine,automobile service equipment and precision hardware parts and so on.our products have passed CE,ISO,SGS,TUV certificates.
Our principle is product and service first!Our products win high praise for good quality and favorable price.
Packing & Delivery
contact us
FAQ
1:How can I choose the most suitable machines ?
Please tell us your requirement of the machine, or you can also send us the
products drawing, our engineer can help to choose the best model for you.
products drawing, our engineer can help to choose the best model for you.
2. What's your main products of your company?
We specialized in all kinds of machines ,such as press machine, CNC lathe, CNC milling machine,automobile service equipment, machine tool accessories, steel wire woven hydraulic hose and rubber pipe and precision hardware parts.
3: What's the Payment Terms ?
A :T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
4.OEM Service?
We accept purchase orders with customers' brand or trade mark.
5: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set )
1 set .(Only some low cost machines will be more than 1 set )
