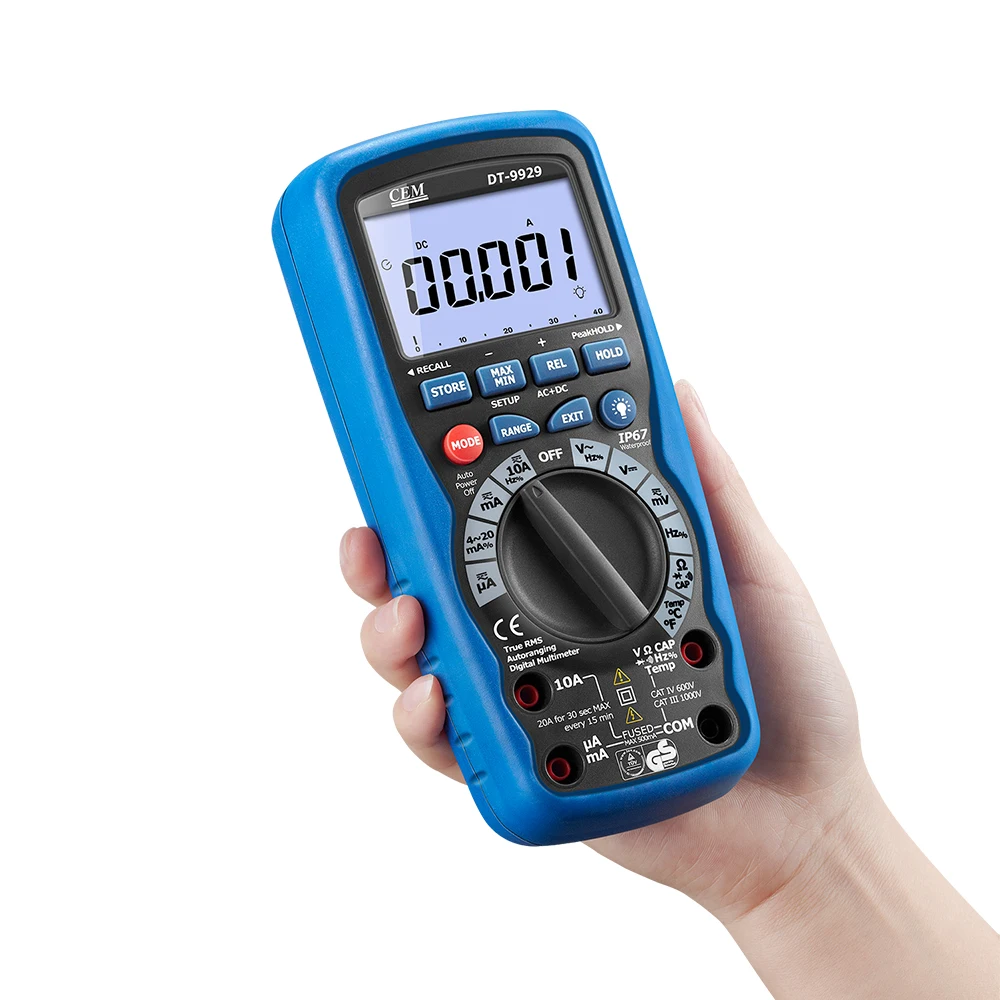

CEM DT-9929 Professional True RMS Industrial Digital Multimeter with AC+DC Measurement
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | CEM |
| Model Number | DT-9929 |
| Measuring Current Range | 10A |
| Measuring Voltage Range | 1000V |
| Measuring Resistance Range | 40MΩ |
| Measuring Capacitance Range | 10mF |
| Operating Temperature | 0-50C degree |
| Dimensions | 183mm x 82mm x 55mm |
| AC ,DC Voltage | 1000V |
| Current DC AC | 10A |
| Frequency | 10MHz |
| Resistance | 40 M ohm |
| Bandwidth | 20MHz |
| Diode Check | YES |
| Duty Cycle | 99.90% |
| True RMS | YES |
| Memory | 9999 reading memories |
| Capacitance | 40mF |
Product Detail
DT-9919/9929/9939/9949/9959 are the new Professional Digital Multimeters which provide much more safe measurements with double molded plastic housing design and IP67 waterproof function. 9949/9959 performance like datalogger & True RMS AC voltage and current measurements, 50,000 counts resolution and a 0.03% basic DC accuracy within the reach of more customers. The large LCD display with analog bargraph and backlit ensure that readings are easy to read under all circumstances. All inputs are protected to EN 610101-1 CATIV 600V/CATIII 1000V.
Safety Conformance
EN61010-1 CAT IV 600V, CAT III 1000V
1000V input protection on all ranges
10A/1000V & 0.5A/1000V fuses protection on current ranges
| Features | DT-9919 | DT-9929 | DT-9939 | DT-9959 |
| 40,000 counts high resolution (0.01mV, 0.01µA, 0.01) | * | * | * | |
| 50,000 counts high resolution (0.01mV, 0.01µA, 0.01) | * | |||
| Triple LCD display with bargraph & Backlit | * | * | * | |
| AC+DC Measurement | * | * | * | |
| 9999 Readings memories | * | * | * | |
| True RMS measurement & Peak capture mode | * | * | * | * |
| 1000V input protection on all ranges | * | * | * | * |
| 4-20mA process loop measurements with % reading | * | * | * | * |
| Data Hold/MAX/MIN recording mode | * | * | * | * |
| IP67 Waterproof and Auto Power Off | * | * | * | * |
| Wide capacitance range | * | * | * | * |
| Wireless USB interface | * | |||
| Bluetooth interface with Meterbox iMM software | * |
| Specifications | |||
| Function | Max. Range | Max. Resolution | Basic Accuracy |
| Voltage DC | 1000 V | 10µV | ±0.03% (9959) ±0.06% (9929/9939) ±0.06% (9919) |
| Voltage AC | 1000 V | 10µV | ±1.0% |
| Current DC | 10A | 0.01µA | ±1.0% |
| Current AC | 10A | 0.01µA | ±1.5% |
| Resistance | 40M | 10m | ±0.3% |
| Duty Cycle | 99.90% | 0.10% | ±1.2% |
| Frequency | 10MHz | 0.001Hz | ±0.1% |
| Capacitance | 40mF | 10PF | ±3.5% |
| Temperature | 1200ºC/2192ºF 760ºC/1400ºF (9919) | 0.1ºC/ºF | ±1.0% |
| Diode Check | |||
| Continuity Test | |||
Please feel free to contact us for better price and catalogue !
CEM already over 30+ years instrument manufacturer !
Welcome OEM/ODM services .
