ELEWIND Stainless Steel 316L Piezo Switch (22mm,PS223P10YSS1,Rohs,CE)
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | ELEWIND |
| Model Number | PS223P10YSS1 |
| Max. Current | 200mA |
| Max. Voltage | 24V |
| Install diameter | 22mm hole diameter |
| Standard | Rohs,CE |
| Crust Material | Stainless steel |
| Crust Color | Stainless steel |
| Function | Momentary NO |
| Operation force | 2 to 6 (N) |
| Life | 5 Million |
| Operation temperature | -40 to +75 degree |
| Protection Level | IP68 |
Product Detail

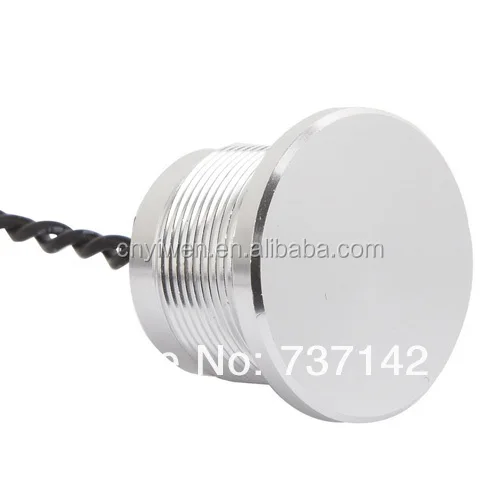

ELEWIND Stainless steel 316L piezo switch (22mm,PS223P10YSS1,Rohs,CE)
Part number: PS223P10YSS1
Install diameter : 22mm hole diameter Rated current : 200mA Rated voltage : 24VAC/DC Crust Material : Stainless steel Crust color: Stainless steel Function: Momentary NO IP rated : IP68 Life : 5 Million Standard : Rohs, CE Operation force: 2 to 6 (N) Operation temperature: - 40 to +75 degree
Wire connection: Multi-wire leads section 0.22mm2 length 300mm,twisted by pair.
For more quantity,pls contact us for GOOD PRICE!! We can make below special requirement(It will take extra charge, pls contact us first before you order):
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be make like Red,Green,Yellow,Blue,White,Orange,Golded.
3.Special design for the big diameter to 35mm or small diameter to 8mm. 4. We accept different payment way, like paypal,T.T,Escrow and so on.
5. Other special pls contact me, OEM or ODM for you!!!!
Ms.Candice (International trade mangaer) ELEWIND/YUEQING ELEWIND ELECTRIC CO.,LTD. skype: chen.candice85
|
