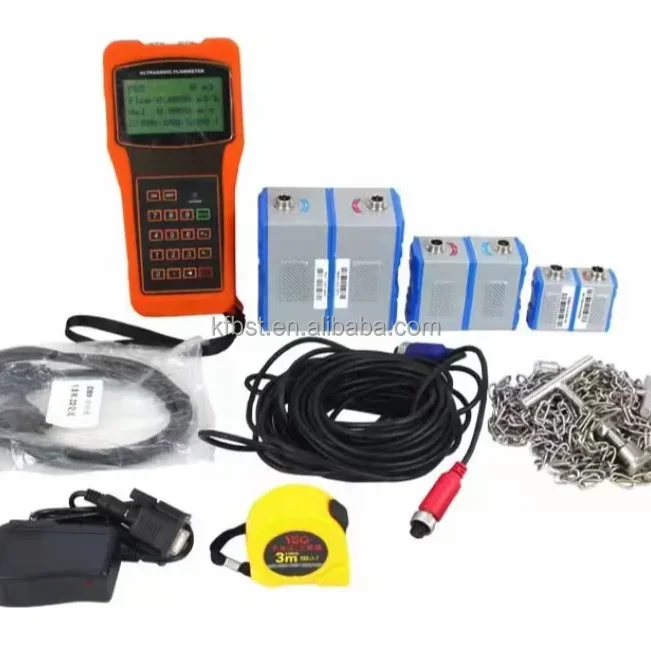

Handheld Type Wall-Mounted Ultrasonic Meter Clamp on RS485 RS232 Battery Power Ultrasonic Flowmeters
US $234.00 / set
1 set(s)Minimum order
warranty:
1 Year
customized support:
OEM, ODM, Software reengineering, OBM
place of origin:
Henan, China
Flow Rate:
0.05m/s
brand name:
KFBST
model number:
BST
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
| warranty | 1 Year |
|---|---|
| customized support | OEM, ODM, Software reengineering, OBM |
| place of origin | Henan, China |
| Flow Rate | 0.05m/s |
| brand name | KFBST |
| model number | BST |
| Measurement Range | DN15-DN6000 |
| accuracy | ±1% |
| type | Ultrasonic meters, Ultrasonic flow meters, Variable Area Water Flowmeters |
| material | Stainless Steel 304, Stainless Steel 316L |
| Medium | Water, liquid, Oil, corrosive liquid, acids |
| Product Name | Ultrasonic Flow Meter |
| Media | Liquid |
| Accuracy | 1.0% |
| Output Signal | 4-20mA/Pulse/RS485/RS232 |
| Connection | Clamp-on |
| Power Supply | 220VAC/24VDC |
| Flow Transducer | Standard/High Temp. |
| Temperature | -30℃ ~ +90℃ / -30℃ ~ +160℃ |
| Transducer Cord Length | Standard: 5m x 2 |
| Warranty | 1 Years |
Product Detail
| Product Name | Ultrasonic Flowmeter |
| Accuracy | ±1% of reading at rates>0.2 mps |
| Repeatability | 0.2% |
| Principle | Transmit time |
| Velocity | +32m/s |
| Pipe Size | DN15mm-DN6000mm |
| Display | LCD with backlight, display accumulated flow/heat, instantaneous flow/heat, velocity, time etc. |
| Signal Output | 1 way 4-20mA output; 1 way OCT pulse output; 1 way relay output |
| Signal input | 3 way 4-20mA input achieve to heat measurement by connecting PT100 platinum resistor |
| Other Functions | Automatically record the forward, reverse, net accumulated flow rate and heat. Automatically record the time of power-on/off and flow rate of the last 30 times. Replenish by hand or read the data through Modbus communication protocol. |
| Pipe Material | Carbon Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed |
| Straight Pipe Section | Upstream: 10D; Downsteam: 5D: From the pump: 30D (D means outer diameter) |
| Liquid Types | Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid |
| Liquid Temperature | Standard: -30°C~90°C, High-temperature: -30°C~160°C |
| Liquid Turbidity | Less than 10000ppm, with a little bubble |
| Flow Direction | Bi-directional measuring, net flow/heat measuring |
| Environment Temperature | Main Unit: -30°C~80°C; Transducer: -40°C~110°C; Temperature transducer: select on enquiry |
| Environment Humidity | Main Unit: 85% RH; Transducer: standard is lP65, lP68(optional) |
| Cable | Twisted Pair Line, standard length of 5m, can be extended to 500m (not recommended)Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m |
| Power Supply | AC220v and DC24V |
| Power Consumption | Less than 1.5W |
| Communication | MODBUS RTU RS485 |
