HIGH AUTOMATIC MOTHER YARN SPLITTING MACHINE
US $3,800.00-4,000.00 / set
1 set(s)Minimum order
Weight (kg):
600
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Engine
place of origin:
Jiangsu, China
Machine Type:
Mother yarn splitting machine
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$105,000.00-130,000.00
1 set (MOQ)
$105,000.00-130,000.00
1 set (MOQ)
$105,000.00-130,000.00
1 set (MOQ)
$105,000.00-130,000.00
1 set (MOQ)
$105,000.00-130,000.00
1 set (MOQ)
$3,800.00-4,000.00
1 set (MOQ)
$105,000.00-130,000.00
1 set (MOQ)
$105,000.00-130,000.00
1 set (MOQ) Contact us
Quik Detail
| Weight (kg) | 600 |
|---|---|
| video outgoing-inspection | Provided |
| machinery test report | Provided |
| core components | Engine |
| place of origin | Jiangsu, China |
| Machine Type | Mother yarn splitting machine |
| product | Machine |
| material capabilities | Nylon and polyester mono yarn |
| Warranty | 1 Year |
| Name | Mother yarn splitting machine |
| Winding coil skeleton | 95-130x230mm |
| Splitting tension | 0.6g/d- 1.0g/d |
| Winding | 120*2300mm |
| splitting speed | 200D/10F can reach 800m/min |
| Forming device | 100mm-460mm |
| Spindle motor | 1kw |
| Wire feed motor | 0.24kw |
| Forming motor | 0.02kw |
| Spitting motor | 0.02kw |
Product Detail
SALES AND SERVICE NETWORK
After sales service:
The machine is guaranteed for one year and maintained for life. If there is any problem when using ,please send pictures and videos to us , and we will solve your problem as soon as possible . As we sell over 150 sets in China, have enough experience tosolve most of your problems.
Product Description
Specification
item | value |
Applicable Industries | Manufacturing Plant |
Weight (KG) | 600 |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2024 |
Warranty of core components | 1 Year |
Core Components | Engine |
Place of Origin | China |
Jiangsu | |
Warranty | 1 Year |
Machine Type | Mother yarn splitting machine |
Product | Machine |
Material Capabilities | Nylon and polyester mono yarn |
Condition | New |
Name | Mother yarn splitting machine |
Winding coil skeleton | 95-130x230mm |
Splitting tension | 0.6g/d- 1.0g/d |
Winding | 120*2300mm |
splitting speed | 200D/10F can reach 800m/min |
Forming device | 100mm-460mm |
Spindle motor | 1kw |
Wire feed motor | 0.24kw |
Forming motor | 0.02kw |
Spitting motor | 0.02kw |
FEATURES AT A GLANCE
Product Overview

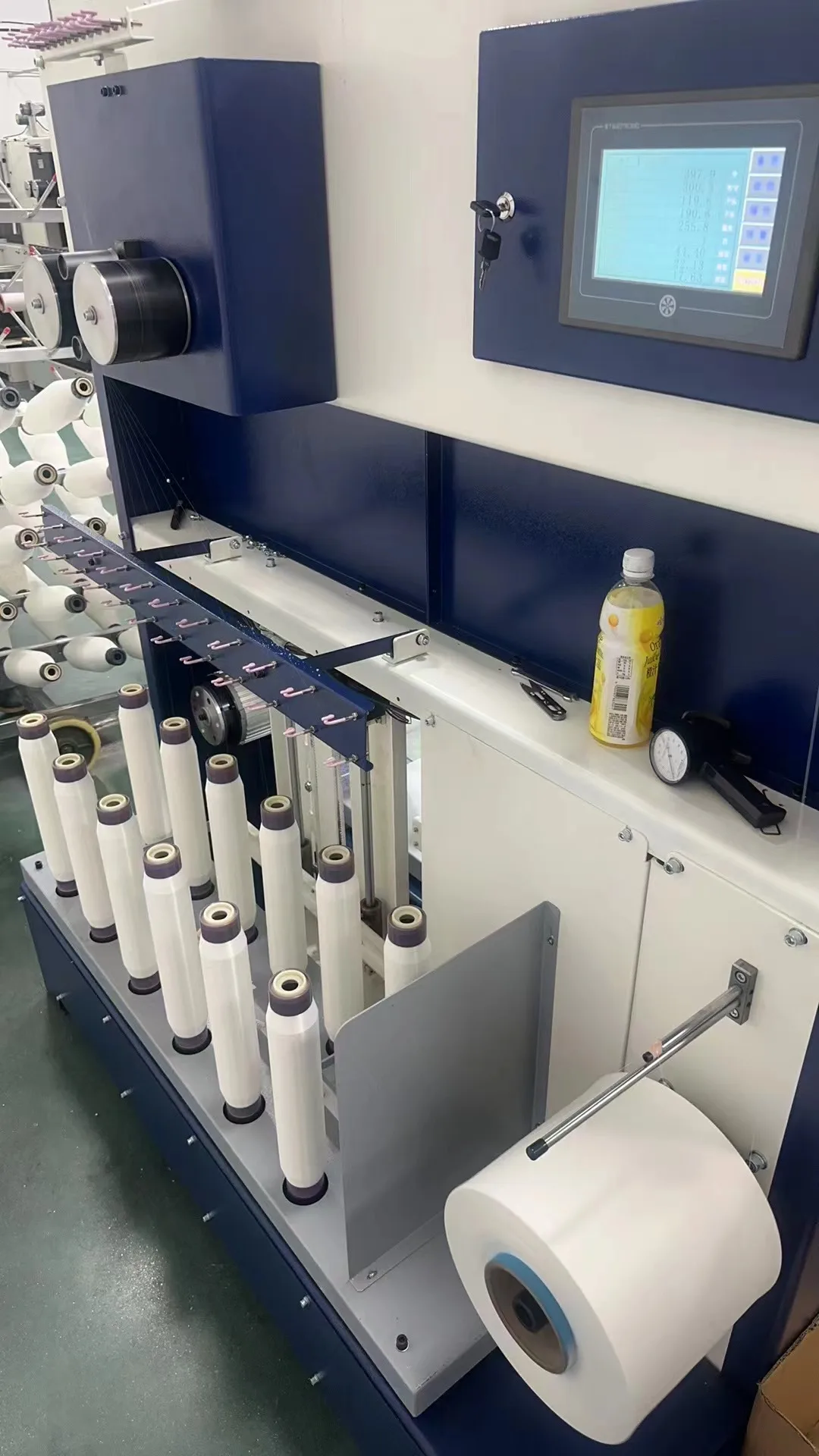

Mother yarn splitting machine
1/ One side 12 spindles, two sides 24 spindles,
2/ Not only can do FDY mother yarn splitting , but also can do DTY mother yarn splitting
3/ Machine have two sides ( R side and L side ) can run according to yourdifferent require
4/ Two sides have counter on length of yarn, can confirm length on each cone
5/ The size of winding coil skeleton is 95-130x230mm, can match each size of papper bobbin
6/ Have over-feeding roller, can adjust tension automatic, so that can keep even tension
Main spec
1) Size and weight on splitting machine
2/ Not only can do FDY mother yarn splitting , but also can do DTY mother yarn splitting
3/ Machine have two sides ( R side and L side ) can run according to yourdifferent require
4/ Two sides have counter on length of yarn, can confirm length on each cone
5/ The size of winding coil skeleton is 95-130x230mm, can match each size of papper bobbin
6/ Have over-feeding roller, can adjust tension automatic, so that can keep even tension
Main spec
1) Size and weight on splitting machine
spindles:24 height:1.950mm length:1.500mm width:900mm
Net Weight: About 550kg／1set
2) splitting mother yarn: weight max 22kg on mother yarn
Nylon and polyester mono yarn with 10D-70D, within 12F
3) Splitting tension: 0.6g/d- 1.0g/d, have tension fix part
4) Winding: 120*2300mm, also can match your own winding part
5) splitting speed: 200D/10F can reach 800m/min
6) Forming device: max 460mm, min:100mm
7) Electric require:
Spindle motor （500w x 2） 1kw
Wire feed motor （120w x 2） 0.24kw
Net Weight: About 550kg／1set
2) splitting mother yarn: weight max 22kg on mother yarn
Nylon and polyester mono yarn with 10D-70D, within 12F
3) Splitting tension: 0.6g/d- 1.0g/d, have tension fix part
4) Winding: 120*2300mm, also can match your own winding part
5) splitting speed: 200D/10F can reach 800m/min
6) Forming device: max 460mm, min:100mm
7) Electric require:
Spindle motor （500w x 2） 1kw
Wire feed motor （120w x 2） 0.24kw
Forming motor (10w x 2） 0.02kw
Spitting motor （10w x 2） 0.02kw
合计 1.28kw
Spitting motor （10w x 2） 0.02kw
合计 1.28kw
FAQ
Q:Are you manufacturer?
A:Yes, We are manufacturer.
Q:How to place machines order?
A:Please send us your purchase order by email, whatsapp or wechat. We need to know the following information for your order:
(1)Your products width and thickness(webbing, tapes, lace width and thickness)
(2)Price Item, Destination Port, Delivery time required
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q:What are the payment terms?
A:For orders, we can accept T/T, L/C at sight
Q:How many years of producing these machine?
---We produced these machine for more than 15 years.
Q:How to place machines order?
A:Please send us your purchase order by email, whatsapp or wechat. We need to know the following information for your order:
(1)Your products width and thickness(webbing, tapes, lace width and thickness)
(2)Price Item, Destination Port, Delivery time required
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q:What are the payment terms?
A:For orders, we can accept T/T, L/C at sight
Q:How many years of producing these machine?
---We produced these machine for more than 15 years.
