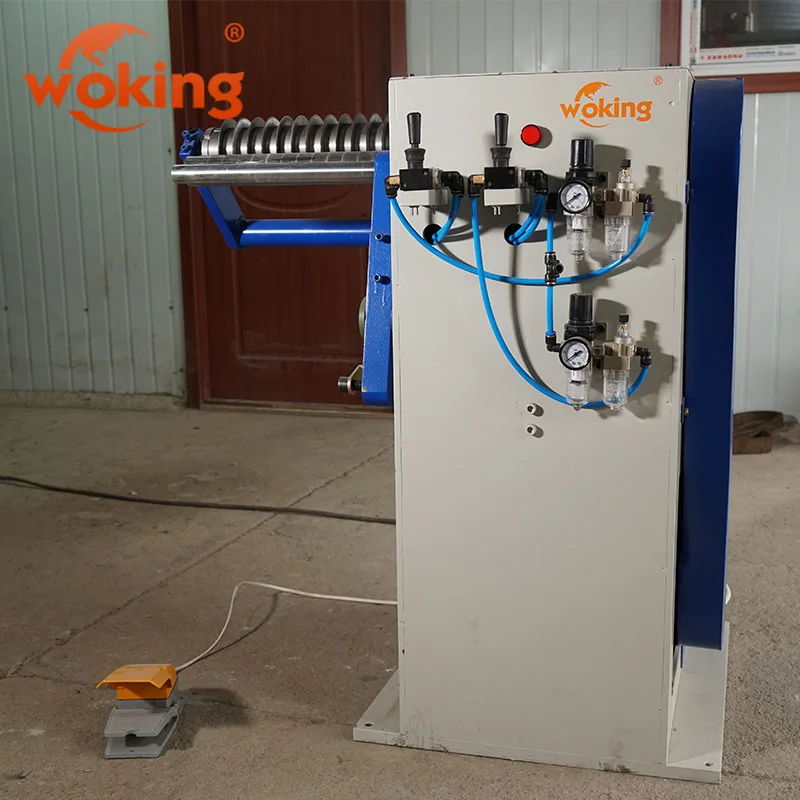

Narrow Belt (300-400 Mm) Slitter Machine

1 set(s)Minimum order
type:
Abrasive Belt Slitter
computerized:
Yes
place of origin:
Henan, China
brand name:
WOKING
model number:
WH
voltage:
380V
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

type

Abrasive Belt Slitter

computerized

Yes

place of origin

Henan, China

brand name

WOKING

model number

WH

voltage

380V

power(w)

2.2 KW

dimension(l*w*h)

1000mm*1000mm*1020mm

warranty

2 years

Weight

0.7 ton

After-sales Service Provided

Engineers available to service machinery overseas

Condition

New

Certification

ISO9001

Machine type

Abrasive Belt Slitter

Application

Making sand belt

Slitting length

Narrow belt (300-400 mm) slitter machine

Usage

making abrasive belts

Cutting precision

± 0.5mm

Installed power

2.2 KW

Package

Packed in wooden case 1*1*1.02M

Total weight

0.7 ton

Air power pressure

0.7Mpa

Color

Blue/Green

Product Detail

Product Description

Product Application

The belt slitter  is designed to slit narow belts of abrasive paper or cloth.WH is a machine for medium performance.

SPECIFICATIONS






Technical Data
Cutting surface width
10mm-650mm
Cutting length
530mm-4000mm
Setting Pressure
500Kgf
Cutting precision
± 0.5mm
Installed power
2.2 KW
Package
Packed in wooden case 1*1*1.02M
Abrasive band tension force
120KGF
Color
Green or Blue

Main Features

1) Simple structure ,easy in installation and maintation.

2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

Details
Relative Machine

Name: skiving machine

Brand: WOKING

Original: China

skiving/grinding width:No limitation

Working speed:30-200mm/s(adjustable)

Pressure device:Pneumatic

Air pressure:0.7 MPa

Installed power:10 KW

Total weight:1.5 Tons

Name:Belt slitting machine
Brand: WOKING
Original: CHINA
Cutting surface width:10mm-650mm

Cutting length: 530mm-4000mm

Setting Pressure:500Kgf

Cutting precision:± 0.5mm

Installed power:2.2 KW

Package:Packed in wooden case 1*1*1.02M


Name: Joint press machine
Brand: WOKING
Original: CHINA
Max working surface width:450mm

Working Temperature:Temperature can be adjustable

Press time:1-99 seconds/belt adjustable

Press pressure:15T

Installed power:4 KW

Package:Packed in wooden case 1.36*1.05*1.85M

Name: Joint wide abrasive cloth cutting machine
Brand: WOKING
Original: CHINA

Cutting surface width:0-1650mm/2050mm

Air pressure:0.75Mpa

Cutting method:Reciprocating rolling

Cutting precision:0.75 KW

Package:Packed in wooden case 2.9*1.6*0.8M

Our Service

Pre-Sales Service

* View our Machined manufacturer in Henan.

* Video instruction of machine operation

After-Sales Service

* 7x24 After Sale Service

* With us your money in SAFE your business in SAFE.

Packing & Delivery
Packaging
Size
Wooden case 1.9*1.5*2.05M
Weight
1.5 T



Packaging Details
The normal package is wooden box(Size:5.0*1.0*1.75M).,Wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
