smart water tank level sensor for pumps ON&OFF control,non contact type water level detection switch

1 piece(s)Minimum order
Series:
XKC-Y26
Features:
non-contact level sensor
Mounting Type:
wall mounted glue fixed
Description:
non-contact liquid water level sensor, Liquid Level Sensor
Model Number:
XKC-Y26
Type:
Liquid Level Sensor
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

Series

XKC-Y26

Features

non-contact level sensor

Mounting Type

wall mounted glue fixed

Description

non-contact liquid water level sensor, Liquid Level Sensor

Model Number

XKC-Y26

Type

Liquid Level Sensor

Place of Origin

Guangdong, China

Brand Name

XKC

Use

Liquid Level Sensor

Theory

Liquid level switch

Output

switch output, V/NPN/PNP

Name

tank level sensor liquid

Application

Water Level Dectective

Detection Type

Capacitance level sensor

Certificate

CE,RoHS

Customized support

OEM/ODM

MOQ

100 Pcs

Input Voltage

DC 5-24v

Product Detail


Overview:
The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chip, which breaks through the influence of container wall thickness and realizes a true non-contact type of liquid level height in a closed container Detection. The liquid level sensor (probe) is installed on the upper and lower sides of the outer wall of the container to be measured (the high and low levels of the liquid level). The non-metallic container does not need to be opened, and the installation is simple and does not affect production. It can detect the liquid level of various liquid toxic substances, strong acids, strong alkalis and various liquids in high-pressure airtight containers. The liquid level sensor has no special requirements for the material of the liquid medium and the container, and can be widely used. XKC-Y26-XXX series products are specially developed for non-metallic pipeline liquid level detection. This series of liquid level sensors is divided into three types:

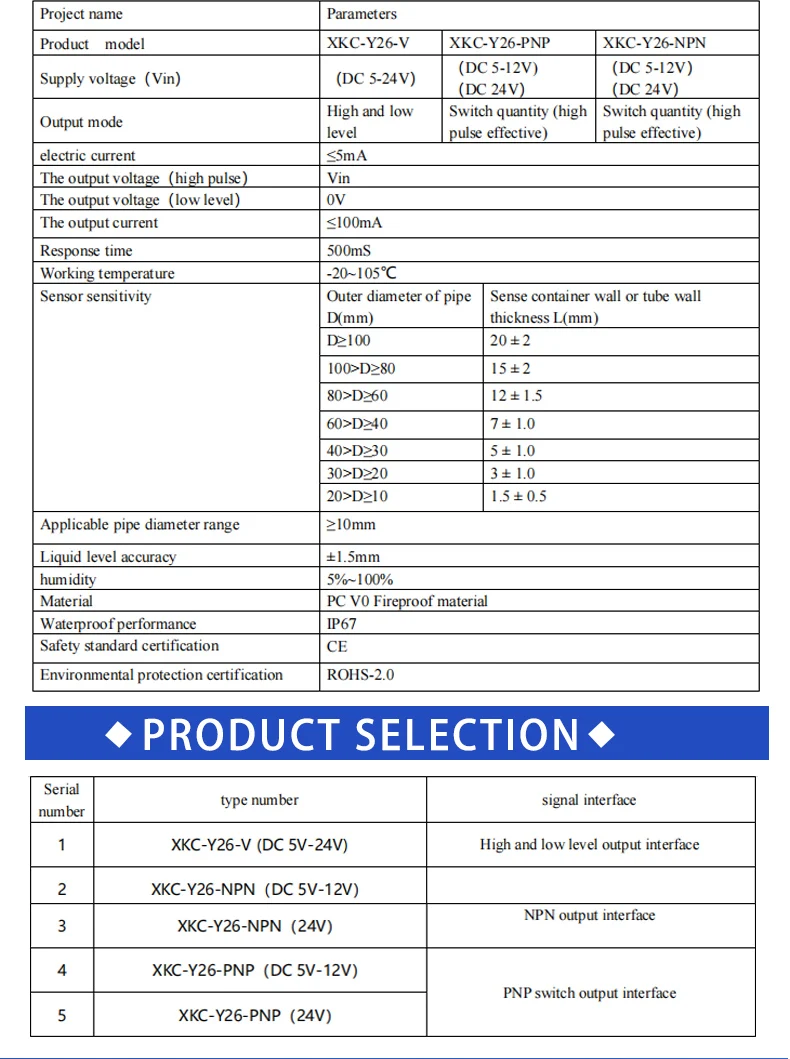

item No. MPN Output
1
XKC-Y26-V
High and low level output
2
XKC-Y26-NPN
NPN output
3
XKC-Y26-PNP
PNP output



Product Features:
1. XKC-Y26-XXX non-contact liquid level sensor is suitable for all kinds of non-metal containers. The product detects the liquid through the detection signal through the non-metal container and the outer wall of the pipeline, without direct contact with the liquid. It is corroded by strong acids and alkalis and other corrosive liquids, and is not affected by scale or other debris, and it can be completed to detect whether there is liquid inside the container or pipeline.
2. Product design intelligent liquid level reference adjustment and liquid level memory function, liquid level status
display mode, can realize multi-point series connection control mode. It can support high and low level output, NPN, PNP signal output control (please refer to the manufacturer's instructions when selecting the model).
3. The detection liquid level is accurate and stable, and cold, hot and boiling liquids can be detected.
4. Pure electronic circuit structure, non-mechanical working mode, stable performance and long lasting service life.
5. High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with all 5~24V power adapters on the market.
6. Wide range of application, strong sensing ability, can penetrate and detect the liquid level in various non-metallic
containers and pipes, such as plastic, glass, ceramics and other containers. The thickness of the sensing pipe wall can
reach 20mm; it can be applied to various curved surfaces. , Arc, cylindrical and other irregular containers or pipeline
liquid level detection.
7. Wide voltage range (5~24V), suitable for connecting various circuits and product applications

Product Applications
The intelligent non-contact liquid level sensor uses the inductive capacitance of water to detect the presence of liquid.
When there is no liquid close to the sensor, the sensor has a certain static capacitance to the ground due to the presence of distributed capacitance on the sensor. When the liquid level is slow When the sensor is slowly raised, the parasitic
capacitance of the liquid will be coupled to the static capacitance of the sensor, making the capacitance value of the
sensor larger. The changed capacitance signal is then input to the control IC for signal conversion, and the changed
capacitance is converted into a circuit signal When the amount of change exceeds a certain threshold, it is judged that the liquid level has reached the sensing point.

Y26_01.jpgY26_02.jpgY26_03.jpgY26_04.jpgY26_05.jpgY26_06.jpgY26_07.jpgY26_08.jpgY26_09.jpgY26_10.jpgY26_11.jpgY26-1_01.jpgY26-1_02.jpgY26-1_04.jpg
