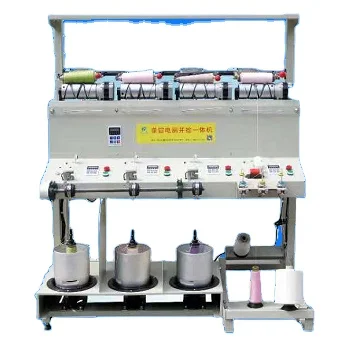

Textile Yarn Twisting Machine for Yarn Cotton Yarn Doubling Machine
US $1,800.00-2,400.00 / set
1 set(s)Minimum order
video outgoing-inspection:
Provided
machinery test report:
Not Available
core components:
Drive
production capacity:
5-20kg/spindle(within 24 hours)
place of origin:
China
Spinning Method:
Ring Spinning
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
video outgoing-inspection | Provided |
---|---|
machinery test report | Not Available |
core components | Drive |
production capacity | 5-20kg/spindle(within 24 hours) |
place of origin | China |
Spinning Method | Ring Spinning |
automatic | Yes |
dimension(l*w*h) | 680*700*1450mm |
Power(W) | 180/90W |
Warranty | 1 Year |
Product name | Yarn Doubling and Twisting Machine |
Usage | Twisting and Doubling Yarn |
Production Capacity | 5-20kg/spindle(within 24 hours) |
For material | All Yarns |
Machine Type | Doubling and Twisting Machine |
Power Supply | Single phase 220V 50HZ |
Machine Specification | Single side machine, 2 spindles/set, 4 spindles/set, 6 spindles/set |
Yarn Winding Speed Range | 100-800m/min |
Yarn Winding Weight | Max 2KG |
Tube Size | 175 mm |
Showroom Location | None |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Condition | New |
Type | Twisting Machine |
Applicable Industries | Retail, Other, Textile Factory |
Application | all kinds of spun yarn twisting and doubling |
Weight | 120 KG |
Product Detail

Product application

Function:
It is suitable for all knids of spun yarn twisting and doubing on one machine. It is convenient for proofing. The twist of each spindle yarn can be adjusted independently, the yarn breaking can stop automatically.
Application | Twisting and doubling yarn | ||||||
MOQ | 2 Spindle/set, 1 spindle is or doubling, 1 spndle is for twisting | ||||||
Power Supply | Single phase 220V 50HZ | ||||||
Consumption Power | 90W/spindle for doubling and 180W/spindle for twisting at the highest speed | ||||||
Machine Specification | Single side machine, 2 spindles/set, 4 spindles/set, 6 spindles/set | ||||||
Bobbin Diameter | Maxium winding diameter is 250 mm | ||||||
Yarn Winding Weight | Maxium 2KG | ||||||
Yarn Winding Speed Range | 100-800m/min | ||||||
Direction of Twist | It can adjust S or Z direction |
The automatic winding machine is suitable for winding sewing thread, embroidery thread, nylon thread etc. It has the device of automatic feed bobbin and change bobbin. The function is of full automatic high speed operation and fast change bobbin.
Product Introduce
Product Advantage:
1. Each spindle is independently controlled by computer numerical control, with simple structure and convenient operation.
2. The twist of 10-800 twists is independently adjusted by numerical control, which can save employees' energy.
3. Automatic stop function of machine yarn breakage alarm greatly saves yarn material and reduces the strength of staff watching machine.
4. Yarn doubling and twisting by independently motor control, two functions do not interfere with each other, it can realize one machine dual use.
