Voltage Current Power Energy Ammeter DC 50A Digital Solar Power Meter PZEM-051 DC 6.5-100V 4in1 Single Phase Watt Meter LCD 100V
US $7.00-8.50 / piece
2 piece(s)Minimum order
Place of Origin:
Zhejiang, China
Brand Name:
peacefair
Model Number:
PZEM-051/50A
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
DC6.5-100V
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
Contact us
Quik Detail
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | peacefair |
| Model Number | PZEM-051/50A |
| Display Type | Digital Only |
| Phase | Single Phase |
| Measuring Energy Range | DC6.5-100V |
| Accuracy Class | 1.0grade |
| Output Voltage | 100V |
| Operating Temperature | -10-60 |
| Dimensions | 89.6*49.6*24.4mm |
| backlight color | blue |
| Certificate | CE FCC |
| Shunt | 50A/75mv |
| Type | Energy Digital Kwh Meter |
| Display | LCD |
| Weight | 149g |
| Color | Black |
| Name | Watt Meter |
Product Detail
Product Description
PZEM-051 DC 6.5-100V 4in1 Voltage Current Power Energy Ammeter DC 50A Digital Solar Power Meter
Product Type | PZEM-051 |
Current Range | 0-100A（with 50A shunt） |
Voltage Range | AC 6.5-100V |
1. Measure voltage, current, active power, energy 2. Voltage alarm function 3. Reset energy 4. Store data when power off. 5. Large-screen LCD 6. Backlight function. | |
Power Range | 0~5kW |
Energy Range | 0~9999kWh |
Reset energy
Step1: Long press the key until the power display area display “CLr”, then release the key.
Step2: At this moment, the energy is flashing to prompt this is the energy reset state, if short press the key again, then the energy value is cleared and exit the reset flashing state.
Step 3: If there is no operation within 5 seconds, it means the energy value is not cleared and will exit the reset state.
Set voltage alarm threshold
Step1: Long press the key until the power display area display “SET”, then release the key.
Step2: After enter this state, the voltage area display the current high voltage alarm value, the current area display the current low voltage alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operation over 3 seconds, it will switch the digit position automatically, from the high voltage alarm value to the low voltage alarm value, there are total six digits, the range of the voltage alarm threshold is 6.5～99.9V;
Step3: After finish the setting, long press the key until the screen display “PASS”, that means you set successfully and will exit the setting state automatically.
Step2: At this moment, the energy is flashing to prompt this is the energy reset state, if short press the key again, then the energy value is cleared and exit the reset flashing state.
Step 3: If there is no operation within 5 seconds, it means the energy value is not cleared and will exit the reset state.
Set voltage alarm threshold
Step1: Long press the key until the power display area display “SET”, then release the key.
Step2: After enter this state, the voltage area display the current high voltage alarm value, the current area display the current low voltage alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operation over 3 seconds, it will switch the digit position automatically, from the high voltage alarm value to the low voltage alarm value, there are total six digits, the range of the voltage alarm threshold is 6.5～99.9V;
Step3: After finish the setting, long press the key until the screen display “PASS”, that means you set successfully and will exit the setting state automatically.
Choose measuring range
Step1: Long press the key until the power area display “Curr”, then release the key
Step2: At this moment, the current area display “100A”, short press the key to switch between“100A”and “50A”, to prompt the range of the external shunt is 100A/75mV or 50A/75mV, please note that this meter can only use these two specification shunt.
Step3: Long press the key to exit the setting state or after no operation within 3 seconds it will store automatically and exit the setting state.
Size Information
Related Products
Company Introduction

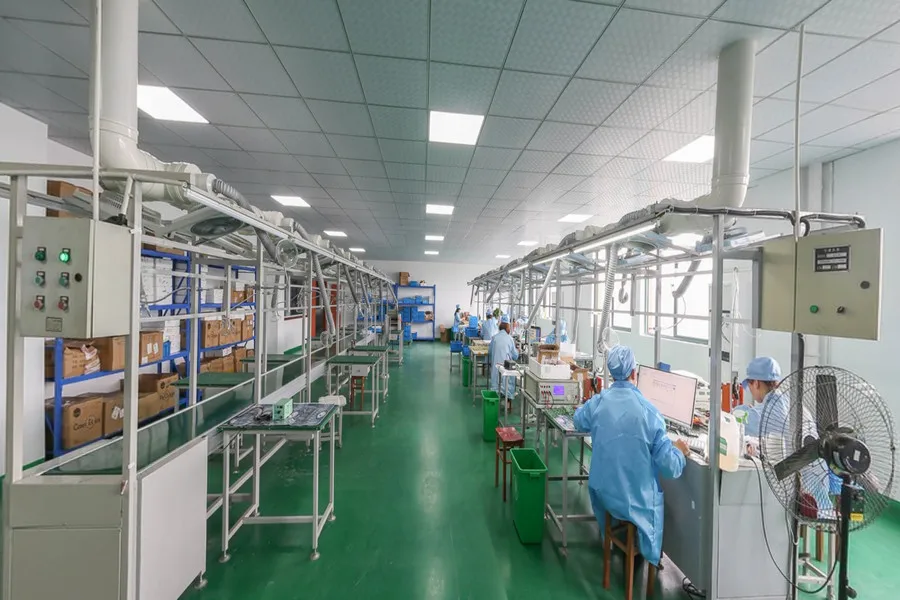

Ningbo Peacefair Electronic Technology Co., Ltd. is founded in 2 0 1 4. The area of the factory is 1800square meters, has two assembly line. We are a professional manufacturer engaged in the research, development, production, sale and service of AC and DC Electric digital power meter, Voltage meter and Energy meter. Our products have the patent and C E, F C C certificates.
