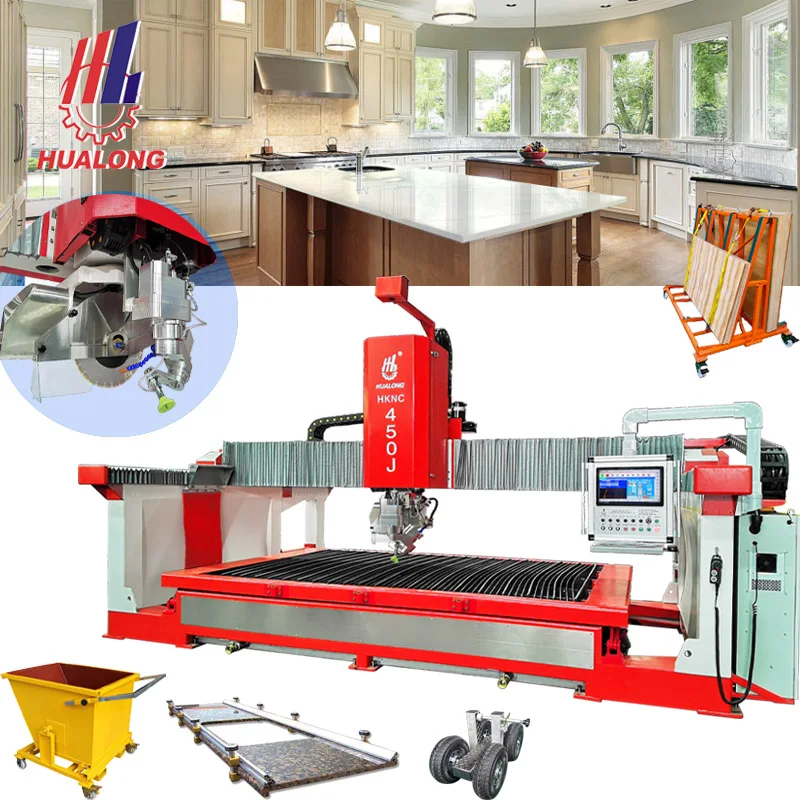

HUALONG Stone Machinery Bridge Saw Type Cnc Stone Cutting Machine for Marble Granite Quartz Kitchen Countertop
US $43,000.00-46,000.00 / set
1 set(s)Minimum order
Type:
Stone Cutting Machine
Use:
stone cutting milling engraving
Production Capacity:
high
Place of Origin:
Fujian, China
Brand Name:
Hualong
Voltage:
220/380V
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$28,000.00-31,000.00
1 set (MOQ)
$253,500.00-260,000.00
1 set (MOQ)
Contact us
Quik Detail
| Type | Stone Cutting Machine |
|---|---|
| Use | stone cutting milling engraving |
| Production Capacity | high |
| Place of Origin | Fujian, China |
| Brand Name | Hualong |
| Voltage | 220/380V |
| Power | 26.4 kw |
| Dimension(L*W*H) | 5700*3260*2765mm |
| Weight | 5800 kg |
| Warranty | 1 Year |
| Key Selling Points | Multifunctional |
| Cutting thickness (max) | 140mm |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Core Components | Bearing, Gear, main motor, servo motor, servo driver, touch screen, computer, worm reducer, gearbox, gear, linear guide, helical gear rack, bearings, hydraulic motor, hydraulic pump |
| Control system | Italian CNC |
| Max. diameter of blade | 500 mm |
| Cutting head rotation | 0-360° |
| Blade tilt | 0-90° |
| Worktable tilt | 0-85° |
| Guide rail | Hiwin linear guide |
| Nesting | Manual or automatic |
| Lubrication | Automatic |
| Structure | monoblock |
| Certification | ce |
| Showroom Location | None |
| Condition | New |
| Warranty of core components | 1 Year |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works , Stone Processing |
| Marketing Type | New Product 2024 |
Product Detail
CNC Stone Machine
HKNC-500+ with 5 axis interpolation controlled, is a multifunctional CNC stone cutting, shaping and engraving machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
HKNC-500+CNC 5 axis marble granite bridge cutting machines have a monoblock body and a rigid structure. In this way, vibration-free and high-speed straight cutting, circular cutting, cross (step) cutting, kitchentop cutting, sink milling features.
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make any cut with ease. HKNC-500 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make any cut with ease. HKNC-500 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features:
1) 5 axis lnterpolation control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monoblock structure with size suitable for container.7) Optional - Sole engraving module with electric spindle excellent for 2D carving.
8) Optional - Vacuum manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
11) Optional - Slab thickness probe
12) Optional - Tool measuring system
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monoblock structure with size suitable for container.
6) Manual cuts available for simple machining.
8) Optional - Vacuum manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
11) Optional - Slab thickness probe
12) Optional - Tool measuring system
Technical Data for HKNC-500 | ||||
Diameter of blade | mm | 400 - 500 | ||
Max. cutting thickness | mm | 140 | ||
Max. cutting length | mm | 3300 | ||
Max. lifting travel | mm | 250 | ||
Worktable dimensions | mm | 3500x2000(2100) | ||
Max. lifting weight by sunction cups | kg | 200 | ||
Power of main motor | kw | 26.4 | ||
Power of cutter frame motor | kw | 2 | ||
Power of crossbeam shifting motor | kw | 1.1 | ||
Power of lifting motor | kw | 0.85 | ||
Power of hydraulic station motor | kw | 2.2 | ||
Gross power | kw | 18 | ||
Water consumption | m3/h | 2 | ||
Dimension (L x W x H） | mm | 5700x3260x2765 | ||
Gross Weight | kg | 5800 | ||
Application fields:
* 2D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
Sole Engraving Module (Optional)
Type: electric spindle
Power: 5.5 kw
Power: 5.5 kw
Rotating speed: 0-24000 rpm
Comparing with maniacal spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster,
or makes curve cutting, corner cutting by milling much faster too.
Control system -- CNC
Brand: Esa
Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
easy, perfect and high efficient.
Digital Servomotor
Brand: ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z, and C axises
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z, and C axises
Software - Pegasus CAD/CAM
Brand: PegasusOriginal: Italy
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.

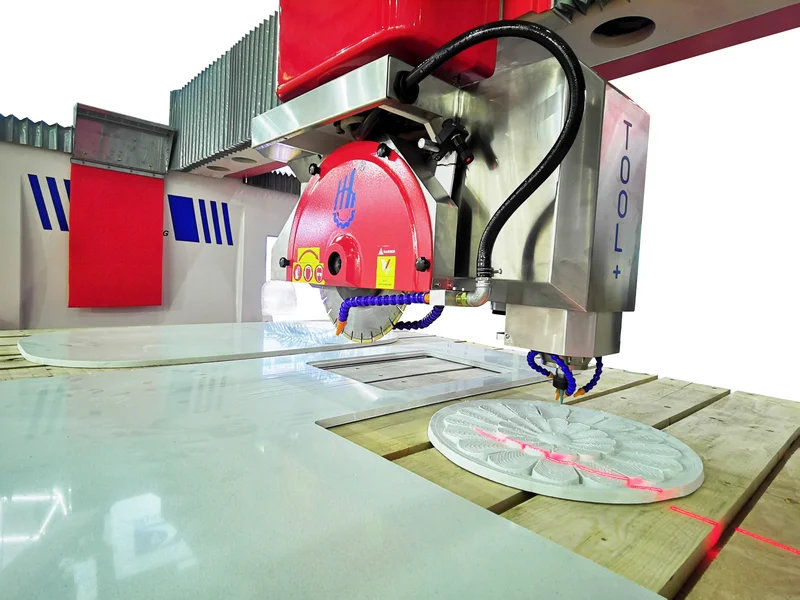

Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Slab Image Capture(Optional)
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
Slab Thickness Detector (optional)
Origin: China
System to automatically detect the thickness of the slab.
System to automatically detect the thickness of the slab.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Electric Cabinet
Branded electric companets such ESA, Schneider, Sanch are adopted to ensure stable performance.
Safeguard Door (Optional)
Safe light curtain is recommended for preventing work-related injuries.
Rubber Platform (Optional)
Waterproof and no deformation
Linear Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
