High Efficiency Dust Collector High Efficiency 2 Arms Solder Fume Extractor Duct Cleaning Machine
US $1,800.00-2,000.00 / set
1 set(s)Minimum order
condition:
New
minimum particle size:
0.3um
place of origin:
Jiangsu, China
brand name:
YORK
dimension(l*w*h):
500*580*1000mm
weight:
147 kg
Privacy Policy:
Samples are free within a certain price range
Other recommendations for your business
$6,000.00-12,000.00
1 set (MOQ)
$1,800.00-2,000.00
1 set (MOQ)
$1,800.00-2,000.00
1 set (MOQ)
$1,800.00-2,000.00
1 set (MOQ)
$6,000.00-12,000.00
1 set (MOQ)
$6,000.00-12,000.00
1 set (MOQ)
$6,000.00-12,000.00
1 set (MOQ) Contact us
Quik Detail
| condition | New |
|---|---|
| minimum particle size | 0.3um |
| place of origin | Jiangsu, China |
| brand name | YORK |
| dimension(l*w*h) | 500*580*1000mm |
| weight | 147 kg |
| warranty | 3 years |
| Product name | Industrial dust collector single pulse dust collector |
| Application | dust collector for grinding cutting stirring |
| Air volume | 3500-15000m3/h |
| Power | 0.75-15kw |
| Filter cartridge material | PTFE |
| Filtration efficiency | ≥99.9% |
| Dust arm diameter | 160mm-500mm |
| Dust cleaning type | pulse-jet dust cleaning |
| Surface treatment | Electrostatic spraying |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining |
| Showroom Location | Saudi Arabia, Pakistan, UAE |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Warranty of core components | 3 years |
| Core Components | motor |
Product Detail
Product Overview
High-Performance Industrial Pulse Jet Cleaning Dust Extraction System for Foundry and Casting
The YORK filter cartridge type dust collector is a new and efficient dry dust removal equipment, which is suitable for purifying
fine and dry non fiber dust.
The machine produces negative pressure indoor, the dusty air flow enters the air cleaner through the air intake aperture. After
filtering by the high efficient filter cartridge, the large dust particles will be dropped to dust collection box. The tiny dust
particles attached to filter cartridge will be shaken off(by pulse valve) to the lower part dust collecting box. The clean air
will come out from the upper part of cleaner.
fine and dry non fiber dust.
The machine produces negative pressure indoor, the dusty air flow enters the air cleaner through the air intake aperture. After
filtering by the high efficient filter cartridge, the large dust particles will be dropped to dust collection box. The tiny dust
particles attached to filter cartridge will be shaken off(by pulse valve) to the lower part dust collecting box. The clean air
will come out from the upper part of cleaner.
Product Paramenters
YORK Carbon Steel Cartridge Filter Dust Collector | ||||||||||||||
Model | Air volume m³/h | Power kw | Filter Qty. pc | Air Inlet mm | Air Outlet mm | Pressure pa | Dimension mm | |||||||
YKM-800 | 800 | 0.75 | 1 | Φ100 | 100*300 | 1210 | 500*500*1450 | |||||||
YKM-1600 | 1600 | 1.5 | 1 | Φ150 | 150*350 | 1360 | 550*550*1450 | |||||||
YKM-2200 | 2200 | 2.2 | 2 | Φ200 | 200*400 | 1470 | 650*650*1700 | |||||||
YKM-2700 | 2700 | 3.0 | 4 | Φ250 | 300*300 | 1578 | 800*800*2000 | |||||||
YKM-4000 | 4000 | 4.0 | 4 | Φ250 | 300*300 | 1650 | 800*800*2000 | |||||||
YKM-6000 | 6000 | 5.5 | 4 | Φ300 | 350*350 | 2014 | 950*950*2100 | |||||||
YKM-8000 | 8000 | 7.5 | 6 | Φ400 | 400*400 | 2554 | 1000*1200*2100 | |||||||
YKM-10000 | 10000 | 11.0 | 9 | Φ500 | 400*400 | 3100 | 1200*1200*2300 | |||||||
YKM-15000 | 15000 | 15.0 | 9 | Φ500 | 400*400 | 3200 | 1200*1200*2300 | |||||||
Dust collection method:Dust arms or pipe connection | ||||||||||||||
Fixing method:With fixed feet/movable universal wheels (optional) | ||||||||||||||
Details Images
Plastic sprayed surface
Smooth wear-resistant dust-free

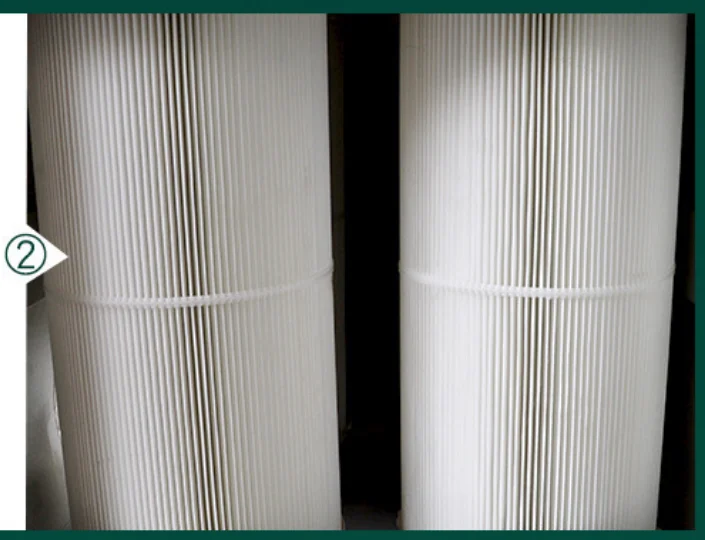

Filter with fiber fabric
High efficiency filtration
Low noise High efficiency Strong dust removal
Simple operation
Reliable quality Overheating protection
Fixed with bracket
Avoid pipe damage caused by high backblowing force
Dusty gas passes through the air inlet
Suction into the equipment for filtration
