Small Mini Label Slitter Label Rewinder

US $3,800.00-4,000.00 / set
1 set(s)Minimum order
type:
Slitting Rewinder
computerized:
Yes
place of origin:
Jiangsu, China
brand name:
HEXIN
voltage:
220V 50hz
dimension(l*w*h):
1100x900x1300mm
Privacy Policy: Samples are free within a certain price range

Contact us

Send Inquiry

Quik Detail

type

Slitting Rewinder

computerized

Yes

place of origin

Jiangsu, China

brand name

HEXIN

voltage

220V 50hz

dimension(l*w*h)

1100x900x1300mm

warranty

1 Year

production capacity

200 m/min

key selling points

Easy to Operate

Working Width

320mm

machinery test report

Provided

video outgoing-inspection

Provided

core components

motor, Gearbox

plc brand

MITSUBISHI, Siemens

Weight (KG)

300

Max Web Width

320mm

Slitting speed

70m/min

Max unwinding diameter

500mm

Max winding diameter

480mm

Material thickness

0.05-3mm

The minimum slitting width

8mm

Slitting Tolerance

0.2mm

Slitting Precision

0.1mm

Products name

small label slitters

Leadtime

15-30 days

Product Detail

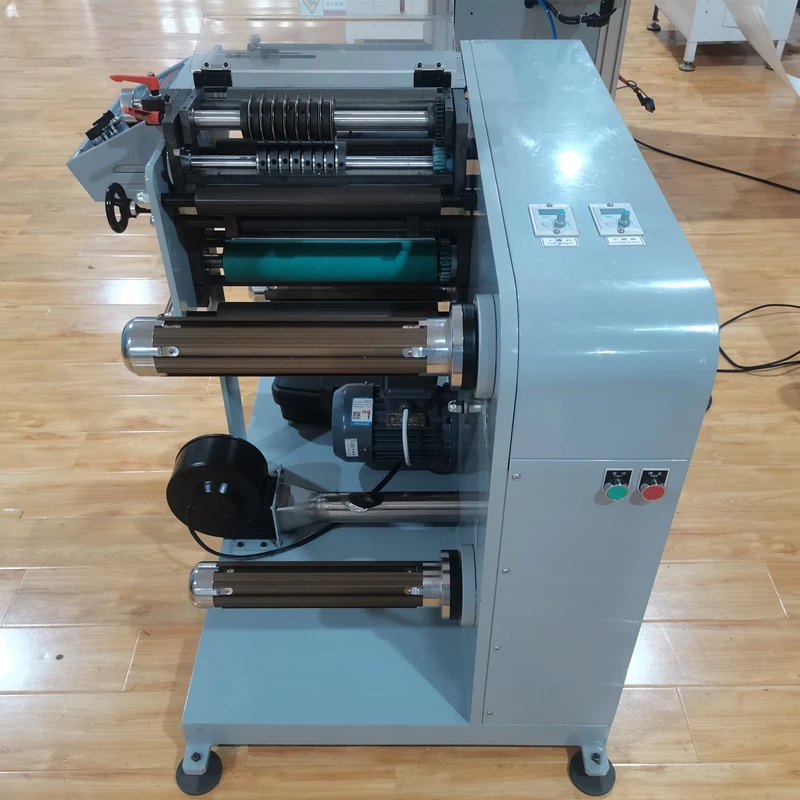

small label slitter rewinder

 320fq10

320c

320fq8

320fq6



Technical Parameters



Model

HX-320FQ

slitting speed

70m/min

Max Slitting Width

320mm

Max. Unwinding Diameter

500mm

Max. Winding Diameter

480mm

Min slitting width

8mm

Slitting tolerance

0.2mm

Slitting precision

0.1mm

Machine size(LxWxH)

1100x900x1300mm

Machine weight

400kgs





Machine Features





This is the finishing equipment. It is suitable for slitting roll/reel material such as paper, foil, adhesive

labels. It has functions of meter counter,

piece counter, length and quantity setting, automatically stopping, After reaching a preset number or

running meters .web guiding system and so on. This robust machine consisting of a solid steel frame,The structure is compact , fast, with high efficiency, easy and steady operation.





1.Machine frame made of coated steel

2.Electronics integrated in the machine frame

3.unwinding with pneumatic compressed shaft for 3" cores

4.rewinding with pneumatic compressed shaft for 3" cores

5.Web tension adjustable via magnetic powder clutch

6.Axial fan for suction of waste strip

7. The minimum slitting width is 8mm

8.unwinding is controlled by two phase





Standard configurations:



1.With 1pc 3’’ unwinding shaft, 2pcs 3’’ rewinding shafts( the size of shafts are optional).

2. With meter/number counter.

3. With two photoelectric eyes

4. With 8 sets of round  slitting knives

5.Machine has blower fan to blow away the trimmed edge



Application



Slitting for label,paper,conductive fabric,foam,diffuser,reflector film, non-adhesive tape,

nickel plate,PET,PC,PE PP,insulation paper, copper /aluminum foil , abrasive cloth and all kinds of non-adhesive tapes.



Our Services



1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines



Machine Display



  Control panel(  small label slitters   )






Photoelectric eyes( small label slitters   )

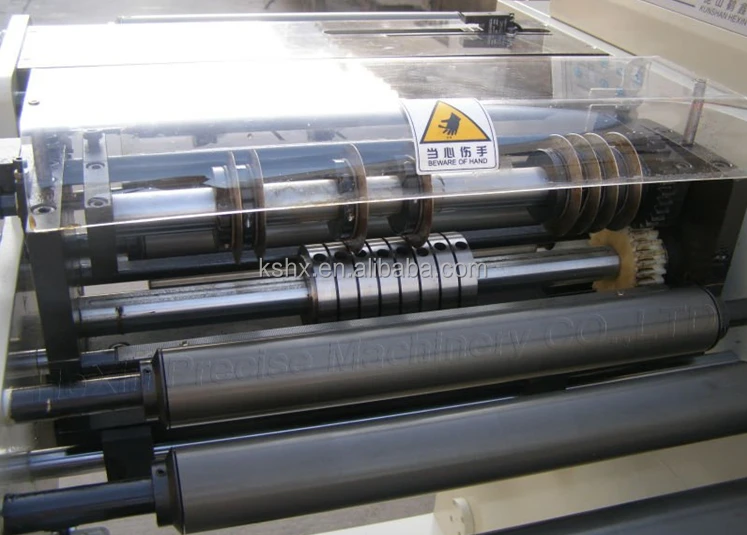

  Slitting knives( small label slitters  )



slitting knife.jpg



 Motor and blower fan








pressure roll (to prevent the material backward when machine stops)



pressure roll.jpg

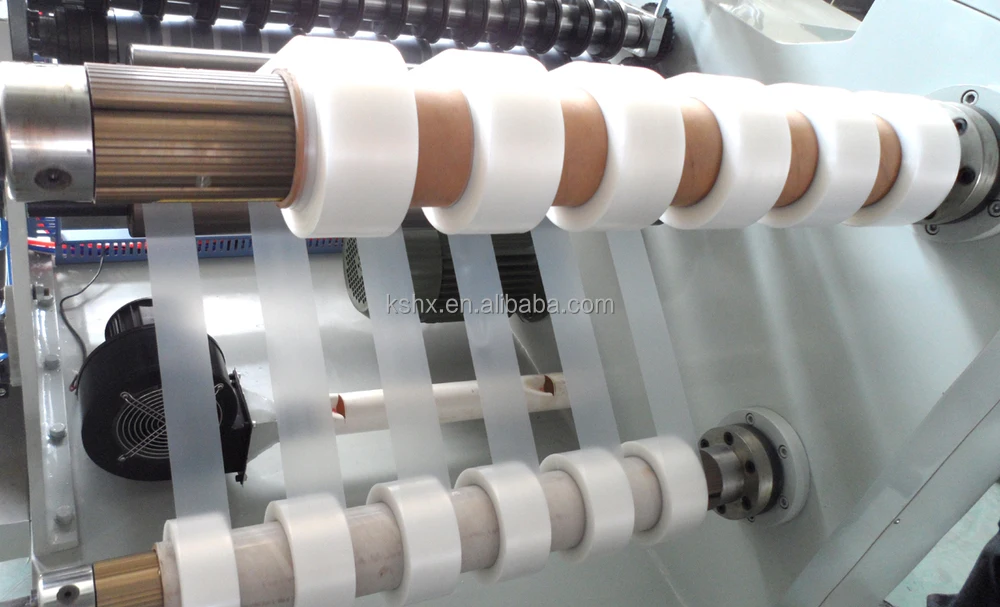

Rewinders










CE Certificaitons:



Trade Exhibition

 --10



Packaging



--12



FAQ.jpg1. Q: Are you a factory or trading company?

A: We are a factory and manufacturer



2. Q: Where is your factory located in ? How can I visit there?

A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed

address is: Factory 9, No. 157, Wulian Road, Yushan Town,Kunshan, Suzhou, Jiangsu,

China. If you fly to Shanghai hongqiao airport or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.



3. Q: what are your main products?

A: Our main products are belt cutting machines, slitting machines, sheeting machines,

laminating machines and rotary die cutting machines.



4. Q: Which industries can use your machines ?

A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.



5. Q: How to control the quality in your factory ?

A: Quality is priority.  We control the quality of our products strictly, from the incoming

materials to the finished products. Our factory has obtained CE & ISO Certification



6. Q:If there are no machines available from your list, could  we customize  non-standard machines from you ?

A: Yes, we have our own professional design engineers, and can customize products

according to your requirement.
